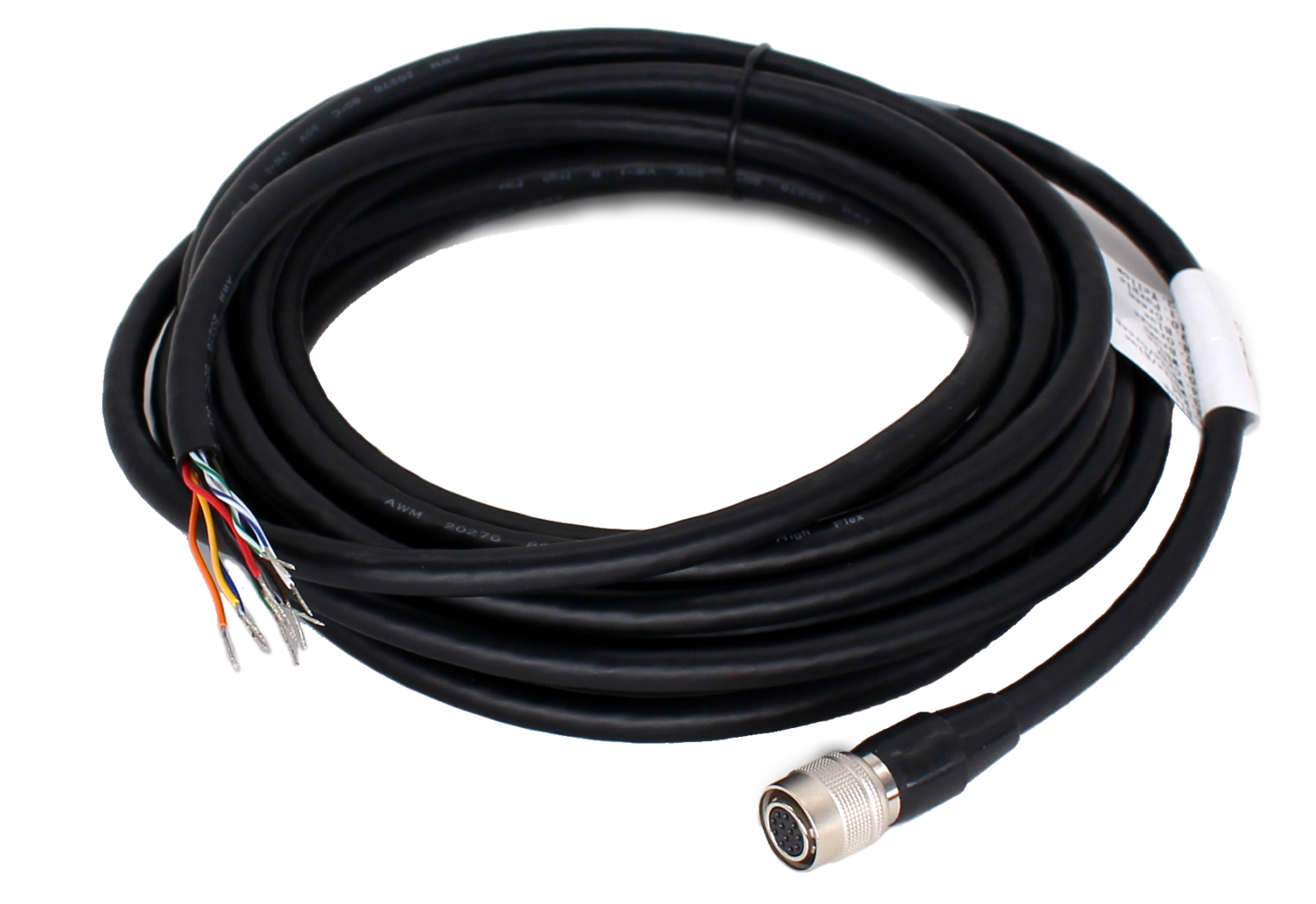

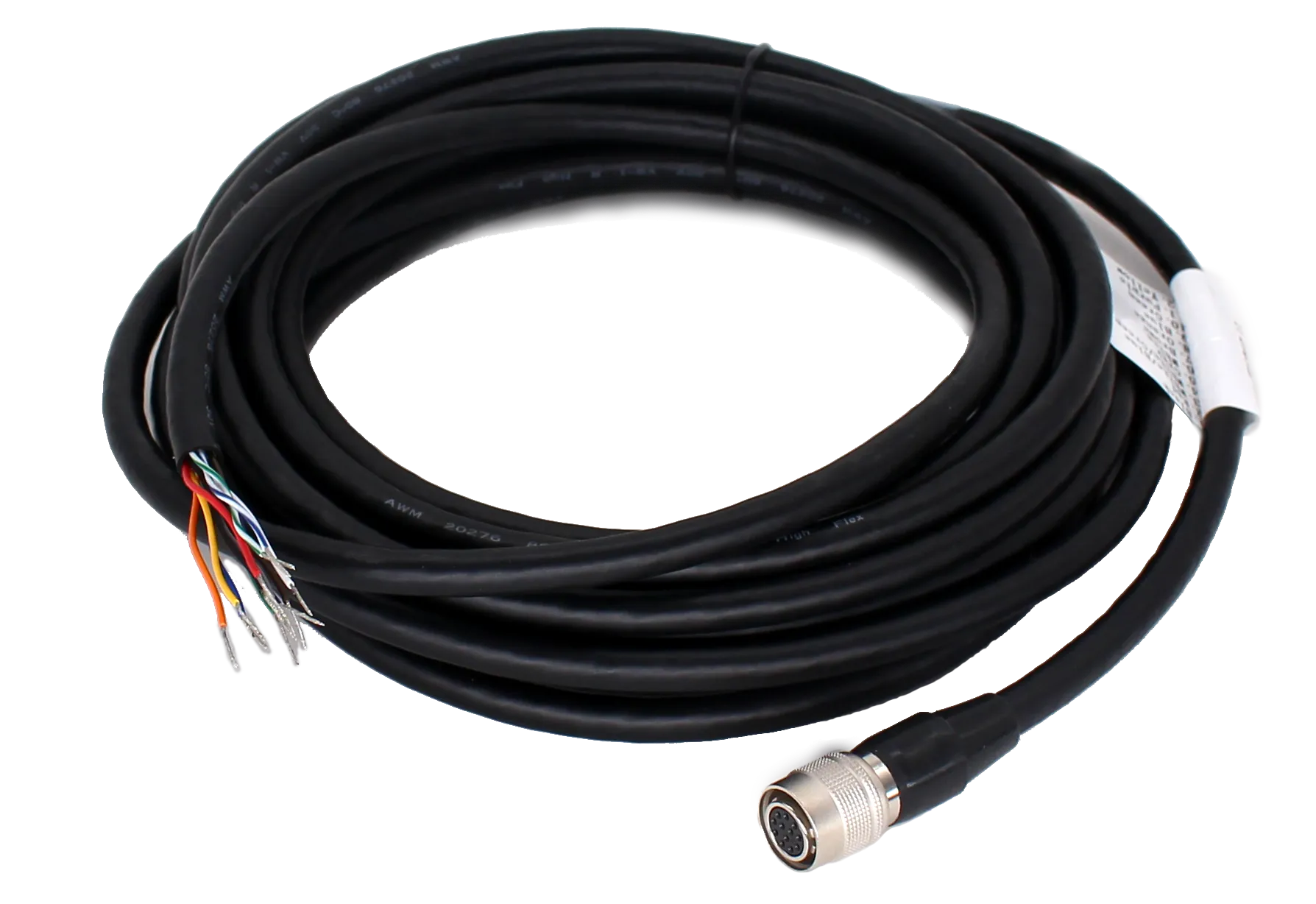

High-flex 12pin power & I/O cables，10 meters
The 12-pin P10 high-flex I/O & power cable can be used for camera power supply and I/O signal wiring, and it is available in various lengths.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
12-pin P10 High Flex Power & I/O Cables power the camera and carry I/O signals; available in multiple lengths.
Specifications
| Product Model | MV-ACP-H12p-open-HF-10m |
|---|---|
| Type | High-flex 12pin power & I/O cables，10 meters |
| End A Connector | P10 12-pin aerospace connector, female |
| End B Connector | Open |
| Cable Diameter | 7.0 mm |
| Length | 10 m |
| Cable Mechanical | 5P*26AWG+1P*24AWG+F+B |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | ≥ 750 mating cycles |
| Min Bending Radius | 84 mm |
| Applicable Scenario | Drag chains |
| Max Voltage | 30 VDC |
| Working Temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS2.0,UL |
| Packaging | Individual package |
| Max U Type Bending Cycles | ≥ 5 million times |
| Connector Model | 12-Pin P10 |
