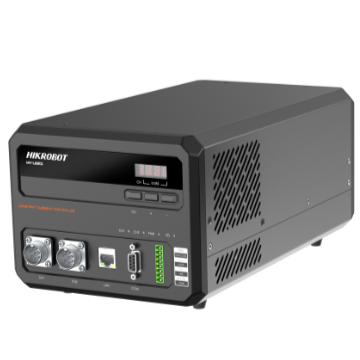

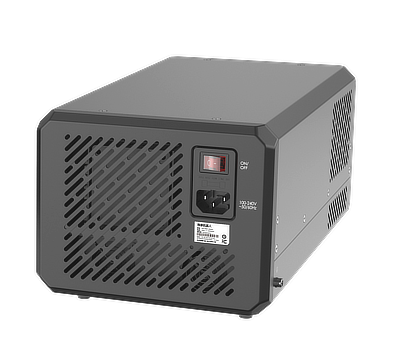

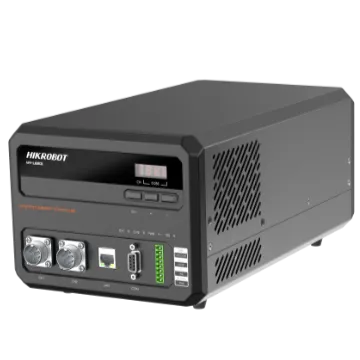

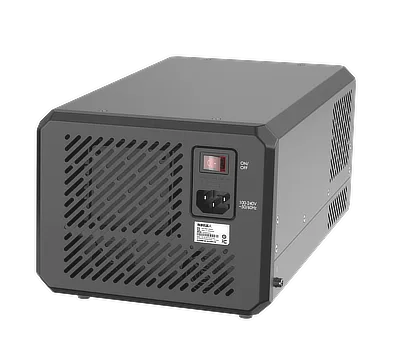

Digital Light Controller，2 channel，750W/48V
Adopts constant current to improve light source stability.
- Constant-current drive improves light-source stability.
- Buttons and display enable quick on-device operation.
- Network interface for parameter setting and device management.
- External trigger input for switching between lighting modes.
- Protects against overcurrent, overload, over-temperature, and short circuits.
Camera Solutions
Digital Light Controller, 2 channel, 750W/48V is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LE201-750W48-2TD. Key data: input voltage 100 VAC to 240 VAC, 50 Hz/60 Hz. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Buttons and display enable quick on-device operation. Network interface for parameter setting and device management. External trigger input for switching between lighting modes. Protects against overcurrent, overload, over-temperature, and short circuits.
Product Highlights
Constant-current drive improves light-source stability. — Buttons and display enable quick on-device operation. — Network interface for parameter setting and device management. — External trigger input for switching between lighting modes. — Protects against overcurrent, overload, over-temperature, and short circuits.
Specifications
| Product Model | MV-LE201-750W48-2TD |
|---|---|
| Type | Digital Light Controller，2 channel，750W/48V |
| Dimension | 347.2 mm × 180 mm × 150.8 mm (13.7" ×7.1" × 5.9") |
| Weight | 5300 g (11.7 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Input Voltage | 100 VAC to 240 VAC, 50 Hz/60 Hz |
| Cooling Mode | Fan cooling |
| Dimming Mode | Control panel (via pressing button), software (serial port or network interface) |
| Trigger Mode | External trigger and internal trigger |
| Output Current For Each Channel | Max. 8 A |
| Channel | 2-channel |
| Power Supply Interface | C13 220 VAC interface |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 |
| Shell Material | Plastic + SECC |
| Ingress Protection | IP30 |
| Certification | CE, KC |
| Drive Mode | Digital, constant current |
| Lighting Mode | Continuous, strobe |
| Brightness Level | 0 to 255 |
| Lighting Response Time | < 10 μs |
| Communication Protocol | UDP, Serial |
| Applicable Product | Line scan light (with 19M-8H and 19M-8A connector). |
| Input Current | 8.2 A (115 VAC), 3.9 A (230 VAC) |
| Output Voltage | 48 VDC |
| Output Current | Max. 15 A |
| Output Power | Max. 750 W |
| Trigger In | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger Out | High level 2.7 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Console Interface | RJ45 network interface, DB9F serial port |
| Lighting Output Connector | 19M-8H (Female) × 2 |
