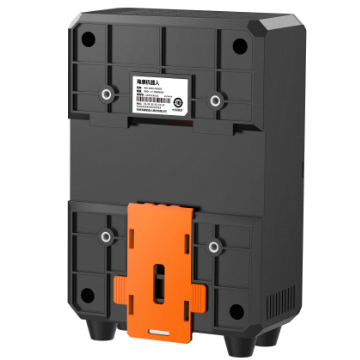

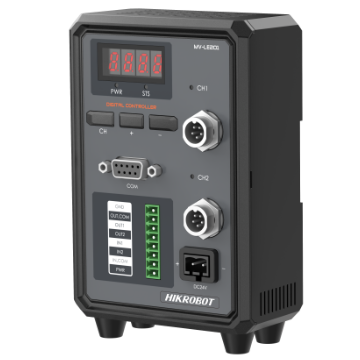

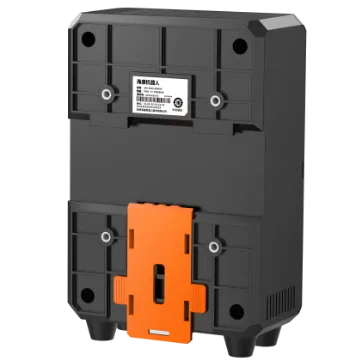

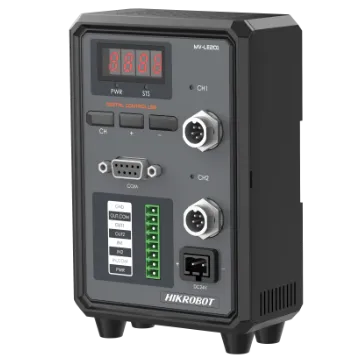

light controller for dot-type lighting
Adopts constant current to improve light source stability.
- Constant-current drive improves light-source stability.
- Buttons and display enable quick on-device operation.
- Serial port or network interface for parameter setting and device management.
- External trigger input for switching between lighting modes.
- Protects against overcurrent, overload, over-temperature, and short circuits.
Camera Solutions
light controller for dot-type lighting is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LE201-30W5-2FD. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Buttons and display enable quick on-device operation. Serial port or network interface for parameter setting and device management. External trigger input for switching between lighting modes. Protects against overcurrent, overload, over-temperature, and short circuits.
Product Highlights
Constant-current drive improves light-source stability. — Buttons and display enable quick on-device operation. — Serial port or network interface for parameter setting and device management. — External trigger input for switching between lighting modes. — Protects against overcurrent, overload, over-temperature, and short circuits.
Specifications
| Product Model | MV-LE201-30W5-2FD |
|---|---|
| Type | light controller for dot-type lighting |
| Dimension | 139.5 mm × 90 mm × 55.5 mm (5.5" × 3.5" × 2.2") |
| Weight | 300 g (0.7 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Dimming Mode | Control panel (via pressing button), software (serial port) |
| Trigger Mode | External trigger and internal trigger |
| Output Current For Each Channel | Max. 3 A |
| Channel | 2-channel |
| Power Supply Interface | 24 VDC terminal block |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 |
| Shell Material | Plastic |
| Ingress Protection | IP30 |
| Certification | CE, KC |
| Communication Protocol | Serial |
| Console Interface | DB9F serial port |
