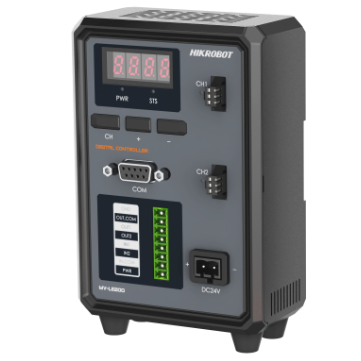

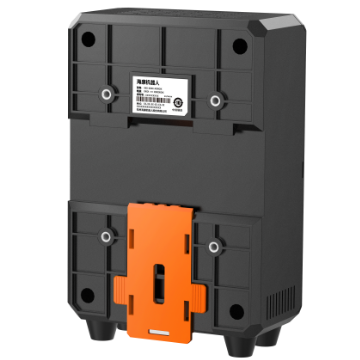

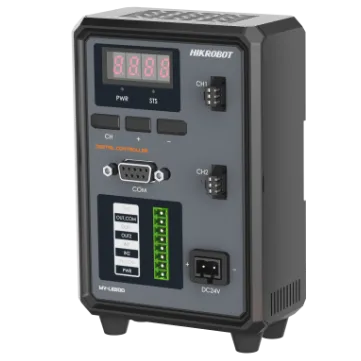

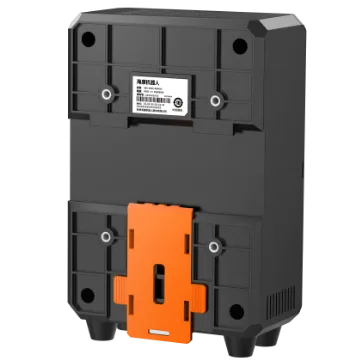

light controller for dot-type lighting
Adopts constant current to improve light source stability.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Buttons and display enable quick on-device operation. Serial port or network interface for parameter setting and device management. External trigger input for switching between lighting modes. Protects against overcurrent, overload, over-temperature, and short circuits.
Product Highlights
Constant-current drive improves light-source stability. — Buttons and display enable quick on-device operation. — Serial port or network interface for parameter setting and device management. — External trigger input for switching between lighting modes. — Protects against overcurrent, overload, over-temperature, and short circuits.
Specifications
| Product Model | MV-LE201-10W5-2D |
|---|---|
| Type | light controller for dot-type lighting |
| Dimension | 139.5 mm × 90 mm × 54.1 mm (5.5" × 3.5" × 2.1") |
| Weight | 240 g (0.5 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Dimming Mode | Control panel (via pressing button), software (serial port) |
| Trigger Mode | External trigger and internal trigger |
| Output Current For Each Channel | Max. 1 A |
| Channel | 2-channel |
| Power Supply Interface | 24 VDC terminal block |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 |
| Shell Material | Plastic |
| Ingress Protection | IP30 |
| Certification | CE, KC |
| Communication Protocol | Serial |
| Console Interface | DB9F serial port |
