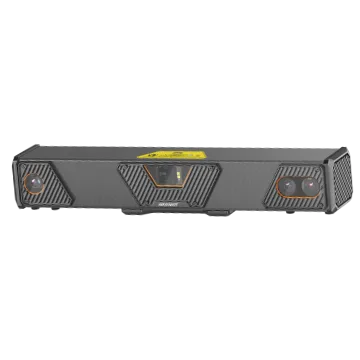

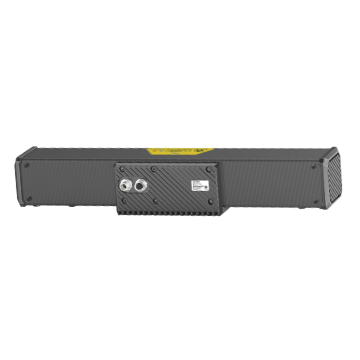

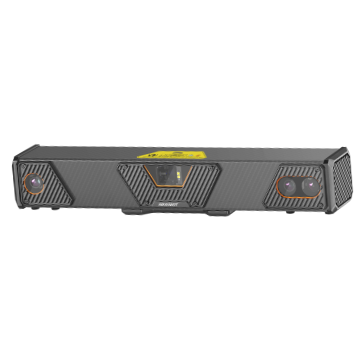

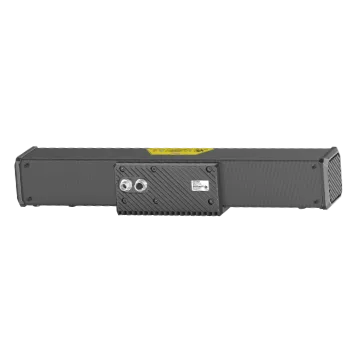

Galvanometer Laser 3D Camera(MV-RS-Base-L)
Customized optical system provides high-quality image.
- Custom optical system for high-quality imaging.
- High-uniformity laser module generates a more detailed point cloud.
- Multi-core parallel processing delivers high precision and fast image acquisition.
- Depth-image-to-RGB-image alignment supports efficient secondary development.
- High-strength carbon-fibre construction for excellent rigidity.
Camera Solutions
Galvanometer Laser 3D Camera(MV-RS-Base-L) is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-RS-Base-L. Key data: data interface Gigabit Ethernet (1000 Mbit/s). Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
High-uniformity laser module generates a more detailed point cloud. Multi-core parallel processing delivers high precision and fast image acquisition. Depth-image-to-RGB-image alignment supports efficient secondary development. High-strength carbon-fibre construction for excellent rigidity.
Product Highlights
Custom optical system for high-quality imaging. — High-uniformity laser module generates a more detailed point cloud. — Multi-core parallel processing delivers high precision and fast image acquisition. — Depth-image-to-RGB-image alignment supports efficient secondary development. — High-strength carbon-fibre construction for excellent rigidity.
Specifications
| Product Model | MV-RS-Base-L |
|---|---|
| Type | Galvanometer Laser 3D Camera(MV-RS-Base-L) |
| Repeatability Z Axis | 0.08 mm @ 1800 mm |
| Laser Safety Class | Class 2 |
| Wavelength | 638 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power Supply | 24 VDC |
| Dimension | 456.1 mm × 79.8 mm × 98.5 mm (18.0" × 3.1" × 3.9") |
| Weight | Approx. 1.5 kg (3.3 lb.) |
| Ingress Protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | RobotPilot, HiViewer |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Power Consumption 2 | Typ. 15 W @ 24 VDC |
| Near Field Of View | 640 mm × 600 mm @ 1200 mm |
| Typical Field Of View | 1100 mm × 900 mm @ 1800 mm |
| Far Field Of View | 1220 mm × 1000 mm @ 2200 mm |
| Clearance Distance Cd | 1200 mm |
| Measurement Range Mr | 1000 mm |
| Vdi Vde Accuracy | 0.15 mm @ 1800 mm |
| Resolution | RGB: 3200 × 1944 Depth: 1632 × 1264 |
| Data Acquisition Time | 0.4 s to 0.9 s |
| Image Output Delay | 0.8 s to 1.5 s |
| Data Type | Original image (mono and color images), depth image, RGB-D image |
| Certification | RoHS, CE |
