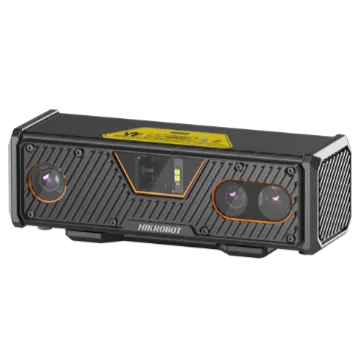

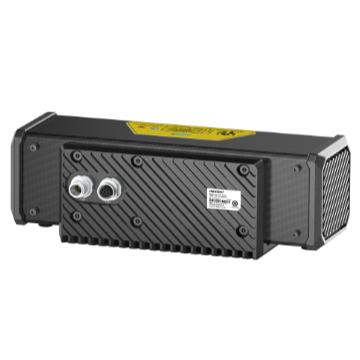

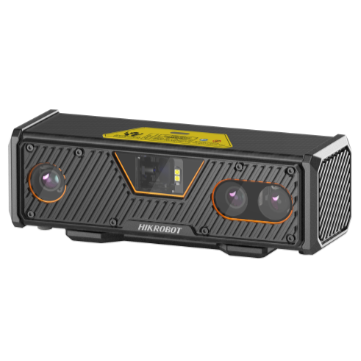

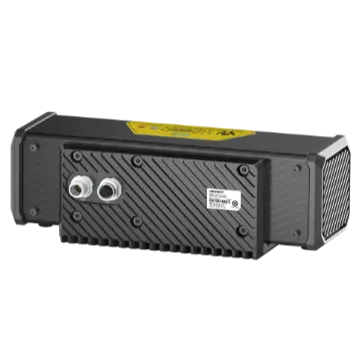

Galvanometer Laser 3D Camera(MV-RS-Base-S)
Customized optical system provides high-quality image.
- Custom optical system for high-quality imaging.
- High-uniformity laser module generates a more detailed point cloud.
- Multi-core parallel processing delivers high precision and fast image acquisition.
- Depth-image-to-RGB-image alignment supports efficient secondary development.
- Lightweight, compact design with high stability for flexible installation.
Camera Solutions
Galvanometer Laser 3D Camera(MV-RS-Base-S) is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-RS-Base-S. Key data: data interface Gigabit Ethernet (1000 Mbit/s). Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
High-uniformity laser module generates a more detailed point cloud. Multi-core parallel processing delivers high precision and fast image acquisition. Depth-image-to-RGB-image alignment supports efficient secondary development. Lightweight, compact design with high stability for flexible installation.
Product Highlights
Custom optical system for high-quality imaging. — High-uniformity laser module generates a more detailed point cloud. — Multi-core parallel processing delivers high precision and fast image acquisition. — Depth-image-to-RGB-image alignment supports efficient secondary development. — Lightweight, compact design with high stability for flexible installation.
Specifications
| Product Model | MV-RS-Base-S |
|---|---|
| Type | Galvanometer Laser 3D Camera(MV-RS-Base-S) |
| Repeatability Z Axis | 0.03 mm @ 600 mm |
| Laser Safety Class | Class 2 |
| Wavelength | 450 nm |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power Supply | 24 VDC |
| Dimension | 236.3 mm × 79.8 mm × 98.5 mm (9.3" × 3.1" × 3.9") |
| Weight | Approx. 1.3 kg (2.9 lb.) |
| Ingress Protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client Software | RobotPilot, HiViewer |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Power Consumption 2 | Typ. 15 W @ 24 VDC |
| Near Field Of View | 280 mm × 220 mm @ 400 mm |
| Typical Field Of View | 480 mm × 320 mm @ 600 mm |
| Far Field Of View | 620 mm × 440 mm @ 800 mm |
| Clearance Distance Cd | 400 mm |
| Measurement Range Mr | 400 mm |
| Vdi Vde Accuracy | 0.05 mm @ 600 mm |
| Resolution | RGB: 3200 × 1944 Depth: 1632 × 1080 |
| Data Acquisition Time | 0.4 s to 0.9 s |
| Image Output Delay | 0.8 s to 1.5 s |
| Data Type | Original image (mono and color images), depth image, RGB-D image |
| Certification | RoHS, CE |
