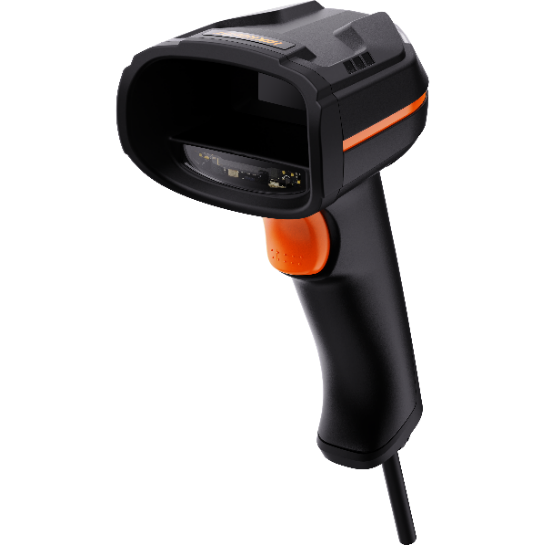

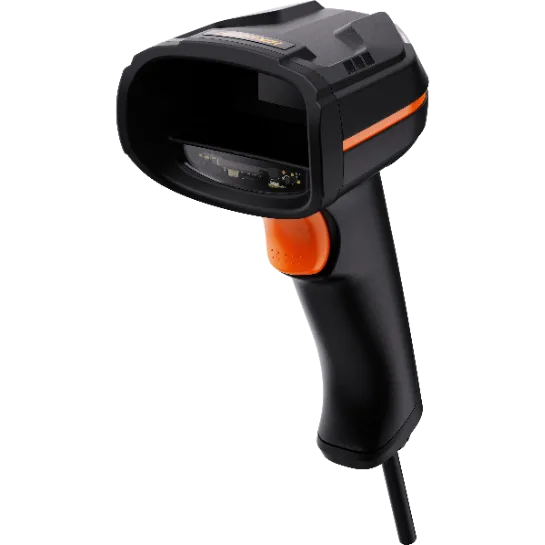

Lan Handheld Code Reader

Name: Lan Handheld Code Reader
Brand: HIKROBOT
SKU: MV-IDH3000/13NR/05RN/L

Built-in code reading algorithm for decoding different types of 1D and 2D codes.

Send inquiry

Download datasheet (PDF)

Highlights

A built-in algorithm decodes a range of 1D and 2D codes.
Reads reliably even with spots, defects, or low contrast.
Supports both continuous and batch code reading for higher throughput.
Speaks multiple protocols: TCP, FTP, UDP, USB, Serial, and SmartSDK.
Industrial-protocol models support PROFINET, EtherNet/IP, Modbus, MC/SLMP, and FINS.
Components are easy to replace.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDH3000/13NR/05RN/L Category: Handheld Code Reader

Lan Handheld Code Reader is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH3000/13NR/05RN/L. Key data: min accuracy 3 mil, ingress protection IP52. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Industrial Wired Handheld Code Reader（IP LAN） (MV-IDH3000/13NR/05RN/LE)

Description

Description

Reads reliably even with spots, defects, or low contrast. Supports both continuous and batch code reading for higher throughput. Speaks multiple protocols: TCP, FTP, UDP, USB, Serial, and SmartSDK. Industrial-protocol models support PROFINET, EtherNet/IP, Modbus, MC/SLMP, and FINS. Components are easy to replace.

Lan Handheld Code Reader (MV-IDH3000/13NR/05RN/L) at a glance: 1280 × 1024 resolution, IP52 protection and weighs 160 g (0.4 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Supports both continuous and batch code reading for higher throughput. — Speaks multiple protocols: TCP, FTP, UDP, USB, Serial, and SmartSDK. — Industrial-protocol models support PROFINET, EtherNet/IP, Modbus, MC/SLMP, and FINS. — Components are easy to replace.

Specifications

Product Model	MV-IDH3000/13NR/05RN/L
Type	Lan Handheld Code Reader
Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin Stacked code: PDF417
Min Accuracy	3 mil
Sensor Type	CMOS
Resolution	1280 × 1024
Depth Of Field	Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm
Field Of View	Horizontal 40°, vertical 34°
Detection Angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol Contrast	20%
Communication Protocol	SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial (RS-232)
Data Interface	Fast Ethernet (100 Mbit/s), RS-232, DC terminal
Power Supply	12 VDC to 24 VDC
Current Consumption	0.5 A (max.), 0.28 A (typical)
Focal Length	4.7 mm
Ambient Illumination	0 lux to 100000 lux
Light Source	Red LED
Aiming System	Cross laser aiming
Prompt	LED indicator, buzzer, vibrator
Dimension	74.4 mm × 86.6 mm × 190.2 mm (2.9" × 3.4" × 7.5")
Weight	Approx. 160 g (0.4 lb.)
Ingress Protection	IP52
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% RH to 80% RH (no condensation)
Laser Safety Class	Laser 2
Wavelength	650 nm
Pulse Width	8 ms
Maximum Power	1 mW
Client Software	IDMVS
Certification	CE, KC
Drop Height	Dropping: 1.8 m, 50 times Rolling: 0.5 m, 1200 times
Static Electricity Resistant	± 16 kV (air discharge), ± 8 kV (contact discharge)
