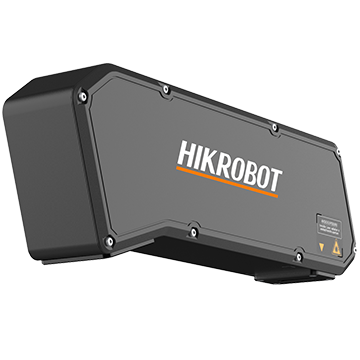

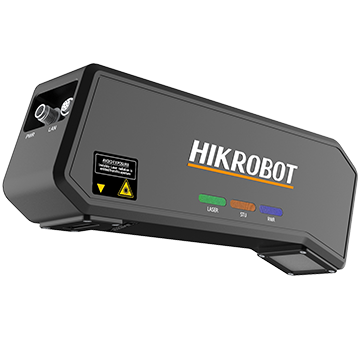

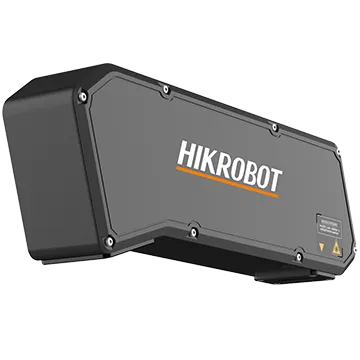

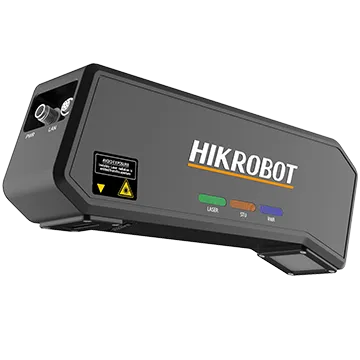

Line Laser 3D Camera
Adopts wide dynamic range algorithm to accurately measure materials of high-absorbance or high-reflection.
- Wide-dynamic-range algorithm for accurate measurement of high-absorbance and high-reflectance materials.
- Detection speed up to 3 m/s with ±5 mm accuracy.
- High-power laser module with wide dynamic range.
- Narrow band-pass filter suppresses interference.
- Stable simultaneous exposure and laser output.
- Outputs length, width, height, volume, point cloud, and location coordinates.
Camera Solutions
Line Laser 3D Camera is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-DL2125-04H-R. Key data: scan frame rate 600 fps @ 1 m3 measurement range, data interface Gigabit Ethernet (1000 Mbit/s). Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- 3D Camera DP2050-01P V2.0, ref. distance 47 mm, Z-range 6 mm (MV-DP2050-01P V2.0)
- 3D Camera DP2060-01P V2.0, ref. distance 64 mm, Z-range 26 mm (MV-DP2060-01P V2.0)
- 3D Camera DP2060-01P, ref. distance 64 mm, Z-range 26 mm (MV-DP2060-01P)
- 3D Camera DP2061-01P V2.0, ref. distance 60.2 mm, Z-range 10.4 mm (MV-DP2061-01P V2.0)
- 3D Camera DP2080-01P V2.0, ref. distance 80.2 mm, Z-range 15.2 mm (MV-DP2080-01P V2.0)
- 3D Camera DP2120-01P V2.0, ref. distance 120 mm, Z-range 80 mm (MV-DP2120-01P V2.0)
- 3D Camera DP2120-01P, ref. distance 120 mm, Z-range 80 mm (MV-DP2120-01P)
- 3D Camera DP2140-01P V2.0, ref. distance 141 mm, Z-range 26 mm (MV-DP2140-01P V2.0)
Description
Detection speed up to 3 m/s with ±5 mm accuracy. High-power laser module with wide dynamic range. Narrow band-pass filter suppresses interference. Stable simultaneous exposure and laser output. Outputs length, width, height, volume, point cloud, and location coordinates.
Product Highlights
Wide-dynamic-range algorithm for accurate measurement of high-absorbance and high-reflectance materials. — Detection speed up to 3 m/s with ±5 mm accuracy. — High-power laser module with wide dynamic range. — Narrow band-pass filter suppresses interference. — Stable simultaneous exposure and laser output. — Outputs length, width, height, volume, point cloud, and location coordinates.
Specifications
| Product Model | MV-DL2125-04H-R |
|---|---|
| Type | Line Laser 3D Camera |
| Scan Frame Rate | 600 fps @ 1 m3 measurement range |
| Trigger Mode | External trigger, encoder trigger (max. 15 KHz trigger signal supported) |
| Laser Safety Class | Class 3B |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7), RS-232 × 1. |
| Power Consumption | Typ. 10 W @ 12 VDC |
| Power Supply | 12 VDC to 24 VDC |
| Dimension | 354.1 mm × 65 mm × 123.4 mm (13.9" × 2.6" × 4.9") |
| Weight | 1.6 kg (3.5 lb.) |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20%RH to 85% RH, no condensation |
| Client Software | 3DMVS, CodePlatform |
| Operating System | 32/64-bit Windows 7/10 |
| Near Field Of View | 1000 mm |
| Far Field Of View | 2600 mm |
| Clearance Distance Cd | 700 mm |
| Measurement Range Mr | 1000 mm |
| Data Type | Point cloud data, length/width/height, integral volume, peak coordinates, depth image |
| Certification | CE |
| Detection Accuracy | ± 5 mm (regular object) |
| Detection Speed | 3 m/s @ ±5 mm detection accuracy |
