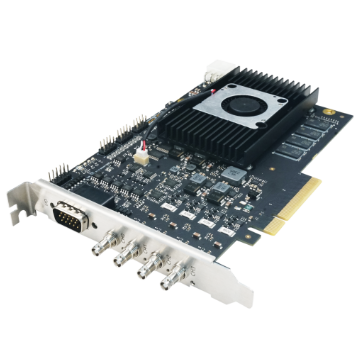

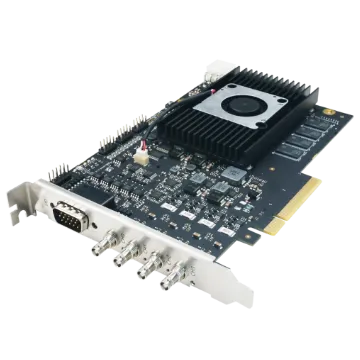

Quad CXP-12 Frame GrabberV2.0
Supports CXP-12 protocol with each channel accessing up to 12.5 Gbps data transfer speed.
- CXP-12 with each channel at up to 12.5 Gbps.
- PoCXP supported, with up to 13 W per channel.
- Indicators show frame-grabber status in real time.
- Multiple I/O connectors handle input and output.
- Includes an SDK for custom development.
- Complies with the GenICam standard.
Camera Solutions
Quad CXP-12 Frame GrabberV2.0 is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GY1004. Key data: certification CE, RoHS, KC. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- AC Power Cable, E2p (EUR) to C13 plug, 1.5 m (AC power cables_EUR_E2p_C13_1.5)
- AC Power Cable, E3p (GBP) to C13 plug, 1.5 m (AC power cables_GBP_E3p_C13_1.5m)
- AC Power Cable, E3p (IND) to C13 plug, 1.5 m (AC power cables_IND_E3p_C13_1.5m)
- AC Power Cable, E3p (ISR) to C13 plug, 1.5 m (AC power cables_ISR_E3p_C13_1.5m)
- AC Power Cable, S2p (JPN) to C13 plug, 1.5 m (AC power cables_JPN_S2p_C13_1.5m)
- AC Power Cable, S2p (KOR) to C13 plug, 1.5 m (AC power cables_KOR_S2p_C13_1.5m)
- AC Power Cable, S3p (ARG) to C13 plug, 1.5 m (AC power cables_ARG_S3p_C13_1.5m)
- AC Power Cable, S3p (BRA) to C13 plug, 1.5 m (AC power cables_BRA_S3p_C13_1.5m)
Description
PoCXP supported, with up to 13 W per channel. Indicators show frame-grabber status in real time. Multiple I/O connectors handle input and output. Includes an SDK for custom development. Complies with the GenICam standard.
Product Highlights
CXP-12 with each channel at up to 12.5 Gbps. — PoCXP supported, with up to 13 W per channel. — Indicators show frame-grabber status in real time. — Multiple I/O connectors handle input and output. — Includes an SDK for custom development. — Complies with the GenICam standard.
Specifications
| Product Model | MV-GY1004 |
|---|---|
| Type | Quad CXP-12 Frame GrabberV2.0 |
| Certification | CE, RoHS, KC |
| Interface | HD-BNC × 4 |
| On Board Memory | 4 GB DDR4-RAM |
| Interconnect | PCI-E gen3 × 8 |
| Delivery Bandwidth | 7800 MB/s (max. transmission bandwidth) 6700 MB/s (sustained transmission bandwidth) |
| Standard | CoaXPress 2.1 |
| Power Output | PoCXP, each channel provides 13 W @ 24 VDC at most |
| Camera Type Supported | CXP-6/CXP-12 connector industrial camera |
| Camera Quantity Supported | 4 at most, supports connecting 1 to 4 camera(s) |
| Camera Connection Speed | 1.25/2.5/3.125/5/6.25/10/12.5 Gbps (CXP-1/2/3/5/6/10/12) |
| Stream | 4 |
| Stream Indicator | 4 |
| Pixel Format | Mono 8/10/12/16 Bayer 8/10/12 RGB 8 |
| I/O Type | Configurable input/output × 11, compatible with single-ended/differential I/O on bracket: Line 0 to Line 6 supports input and output (3.3 V to 24 V). I/O on PCB: Line 7 to Line 10 supports input and output (3.3 V to 24 V). |
| Connector | Connector of I/O on bracket: DB15 male connector Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| Power Consumption | Typ. 16.8 W (without PoCXP) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client Software | MVS |
| Operating System | Windows 7/10/11, Ubuntu 18.04 to 24.04 on Linux |
| Bus Indicator | 1 |
