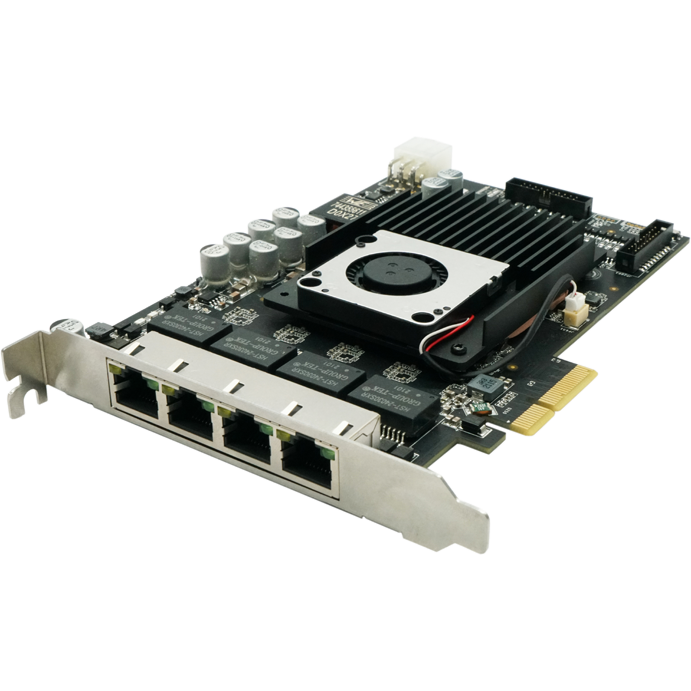

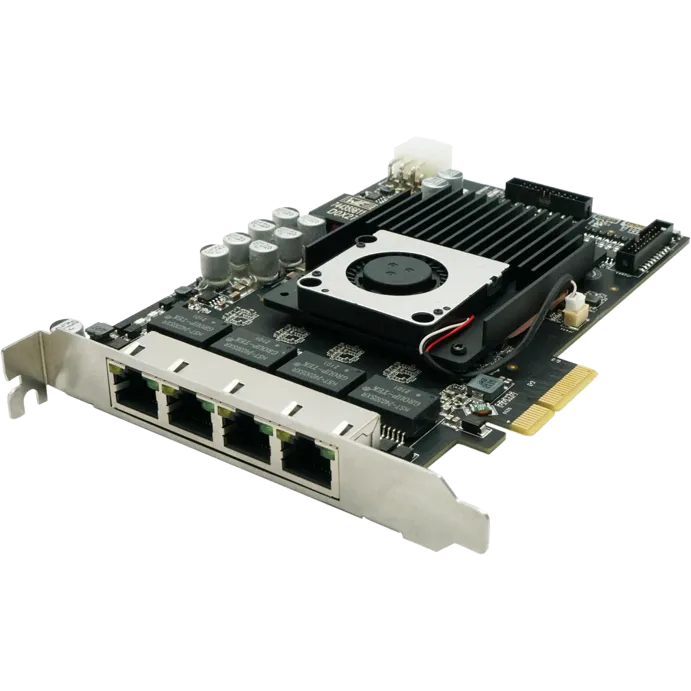

Quad GigE Frame Grabber
Supports GigE Vision protocol with each GigE interface accessing up to 1 Gbps data transfer speed.
- GigE Vision protocol with each GigE interface at up to 1 Gbps.
- PoE supported with up to 15 W per channel.
- Indicators show frame-grabber status in real time.
- Multiple I/O connectors handle input and output.
- Includes an SDK for custom development.
- Complies with the GenICam standard.
Camera Solutions
Quad GigE Frame Grabber is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GE1004. Key data: certification WEEE, RoHS, REACH. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- AC Power Cable, E2p (EUR) to C13 plug, 1.5 m (AC power cables_EUR_E2p_C13_1.5)
- AC Power Cable, E3p (GBP) to C13 plug, 1.5 m (AC power cables_GBP_E3p_C13_1.5m)
- AC Power Cable, E3p (IND) to C13 plug, 1.5 m (AC power cables_IND_E3p_C13_1.5m)
- AC Power Cable, E3p (ISR) to C13 plug, 1.5 m (AC power cables_ISR_E3p_C13_1.5m)
- AC Power Cable, S2p (JPN) to C13 plug, 1.5 m (AC power cables_JPN_S2p_C13_1.5m)
- AC Power Cable, S2p (KOR) to C13 plug, 1.5 m (AC power cables_KOR_S2p_C13_1.5m)
- AC Power Cable, S3p (ARG) to C13 plug, 1.5 m (AC power cables_ARG_S3p_C13_1.5m)
- AC Power Cable, S3p (BRA) to C13 plug, 1.5 m (AC power cables_BRA_S3p_C13_1.5m)
Description
PoE supported with up to 15 W per channel. Indicators show frame-grabber status in real time. Multiple I/O connectors handle input and output. Includes an SDK for custom development. Complies with the GenICam standard.
Product Highlights
GigE Vision protocol with each GigE interface at up to 1 Gbps. — PoE supported with up to 15 W per channel. — Indicators show frame-grabber status in real time. — Multiple I/O connectors handle input and output. — Includes an SDK for custom development. — Complies with the GenICam standard.
Specifications
| Product Model | MV-GE1004 |
|---|---|
| Type | Quad GigE Frame Grabber |
| Certification | WEEE, RoHS, REACH |
| Interface | RJ45 × 4 |
| On Board Memory | 1 GB DDR3-RAM |
| Interconnect | PCI-E gen2 × 4 |
| Delivery Bandwidth | 1720 MB/s (max. transmission bandwidth), 1600 MB/s (sustained transmission bandwidth) |
| Indicator | 1 |
| Standard | GigE Vision |
| Power Output | PoE, each channel provides 15 W at most (ATX 6-pin power required for PoE) |
| Camera Type Supported | GigE industrial camera |
| Camera Quantity Supported | 4 at most |
| Camera Connection Speed | 1 Gbps |
| Stream | 4 |
| Stream Indicator | 4 pairs |
| Pixel Format | Mono 8/10/10p/12/12p Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Connector | Female header |
| Power Consumption | Typ. 10 W (without PoE) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client Software | MVS |
| Operating System | Windows 7/10/11, Ubuntu 16.04 to 20.04 on Linux |
