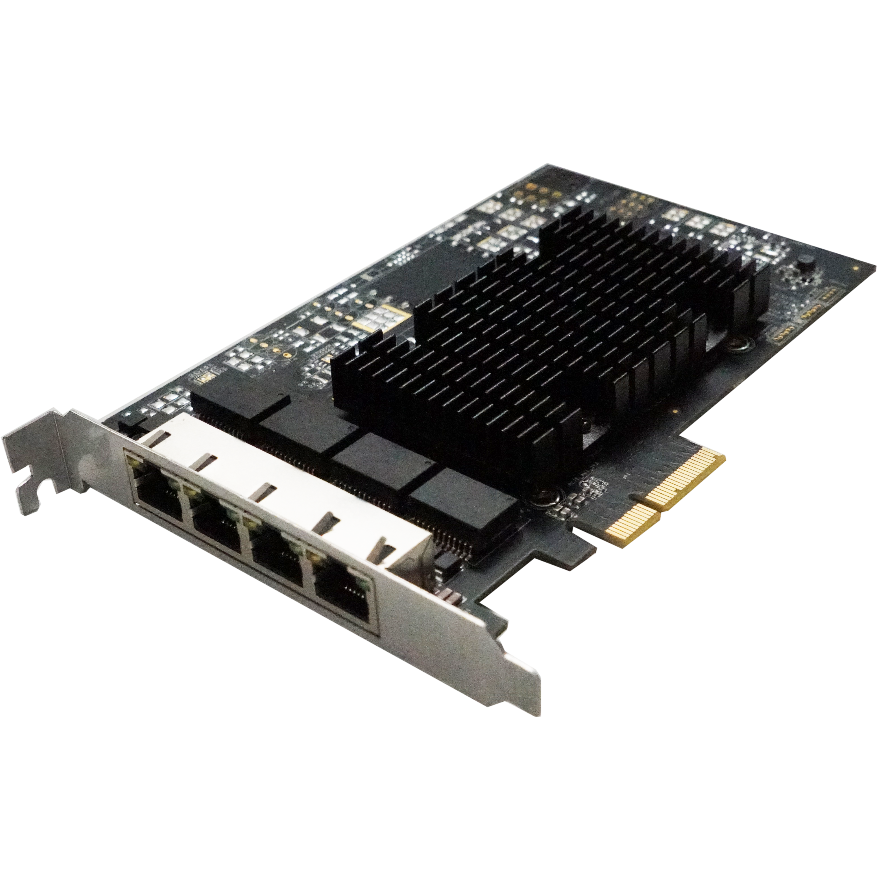

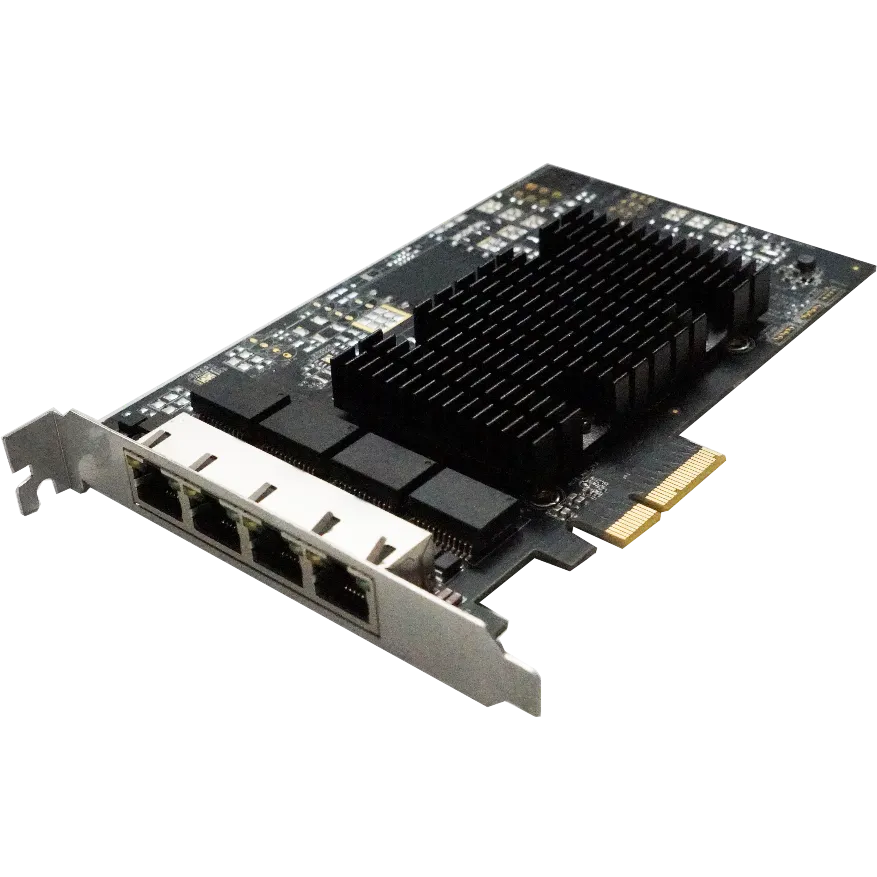

Quad WX1860 Ehternet Adaptor W/O POE

Name: Quad WX1860 Ehternet Adaptor W/O POE
Brand: HIKROBOT
SKU: MV-GE2204

Supports IEEE 802.3 protocol.

Send inquiry

Download datasheet (PDF)

Highlights

Complies with the IEEE 802.3 standard.
Multiple independent RJ45 connectors.
Fits 3U and 4U chassis.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-GE2204 Category: Vision Components

Quad WX1860 Ehternet Adaptor W/O POE is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GE2204. Key data: certification CE, KC. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Quad ports WX1860 POE Ethernet Adaptors (MV-GE2204P)

Description

Description

Multiple independent RJ45 connectors. Fits 3U and 4U chassis.

Product Highlights

Complies with the IEEE 802.3 standard. — Multiple independent RJ45 connectors. — Fits 3U and 4U chassis.

Specifications

Product Model	MV-GE2204
Type	Quad WX1860 Ehternet Adaptor W/O POE
Certification	CE, KC
Interface	RJ45 × 4
Interconnect	PCI-E gen2 × 4
Delivery Bandwidth	860 MB/s (max. transmission bandwidth) 800 MB/s (sustained transmission bandwidth)
Standard	IEEE 802.3
Camera Type Supported	GigE industrial camera
Camera Quantity Supported	4 at most
Camera Connection Speed	10/100/1000 Mbps
Stream	4
Power Consumption	Typ. 3 W
Dimension	181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
Temperature	Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	10% RH to 95% RH (no condensation)
Operating System	Windows 7, 64-bit Windows 10, Linux
Weight	201 g (0.4 lb.)
Main Chip	WX1860 chip
