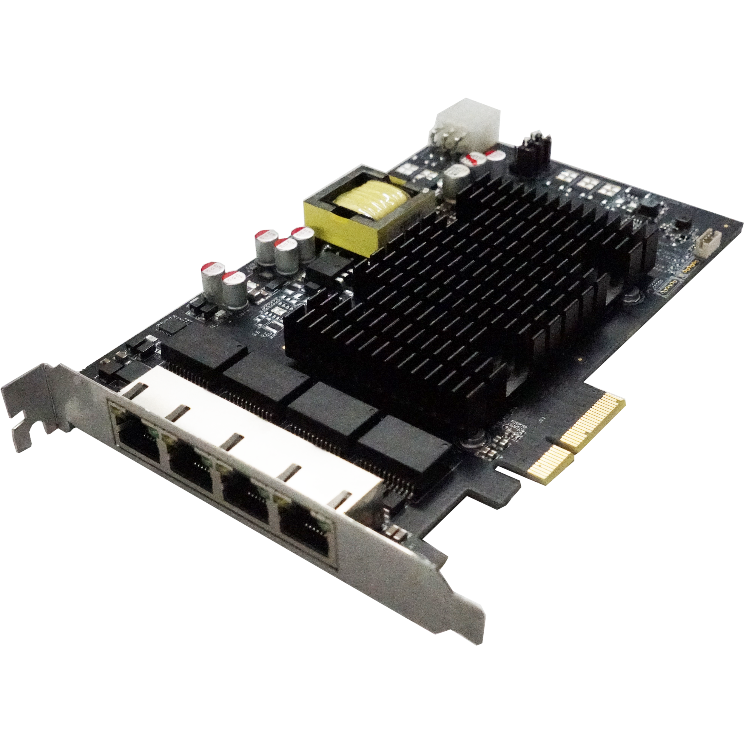

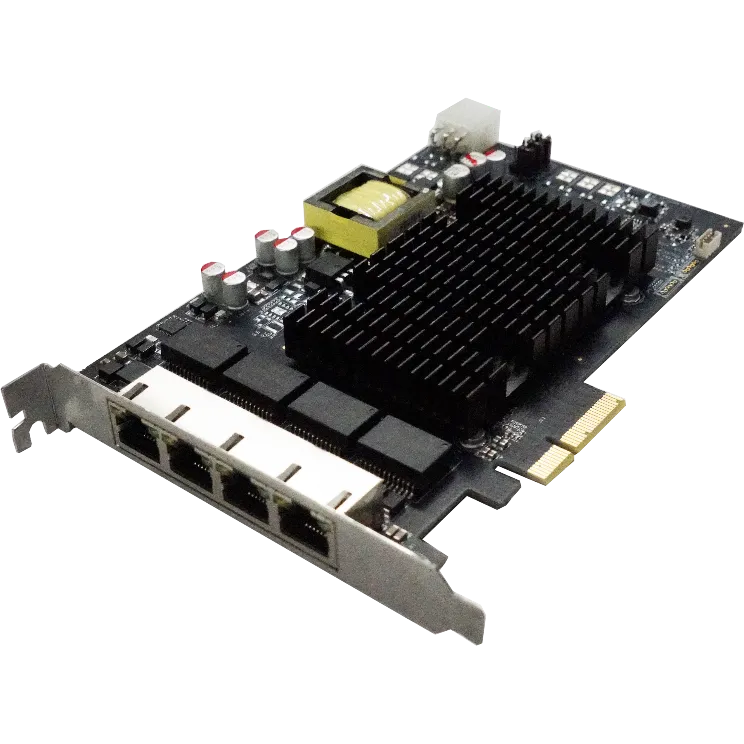

Quad ports WX1860 POE Ethernet Adaptors
Supports IEEE 802.3 protocol.
Highlights
- Complies with the IEEE 802.3 standard.
- Multiple independent RJ45 connectors.
- Fits 3U and 4U chassis.
- PoE supported with up to 15.4 W per channel.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Quad ports WX1860 POE Ethernet Adaptors is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GE2204P. Key data: certification CE, KC. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Multiple independent RJ45 connectors. Fits 3U and 4U chassis. PoE supported with up to 15.4 W per channel.
Product Highlights
Complies with the IEEE 802.3 standard. — Multiple independent RJ45 connectors. — Fits 3U and 4U chassis. — PoE supported with up to 15.4 W per channel.
Specifications
| Product Model | MV-GE2204P |
|---|---|
| Type | Quad ports WX1860 POE Ethernet Adaptors |
| Certification | CE, KC |
| Interface | RJ45 × 4 |
| Interconnect | PCI-E gen2 × 4 |
| Delivery Bandwidth | 860 MB/s (max. transmission bandwidth) 800 MB/s (sustained transmission bandwidth) |
| Standard | IEEE 802.3 |
| Camera Type Supported | GigE industrial camera |
| Camera Quantity Supported | 4 at most |
| Camera Connection Speed | 10/100/1000 Mbps |
| Stream | 4 |
| Power Consumption | Typ. 3 W (without PoE) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Operating System | 64-bit Windows 7/10/11, Linux |
| Weight | 201 g (0.4 lb.) |
| Main Chip | WX1860 chip |
