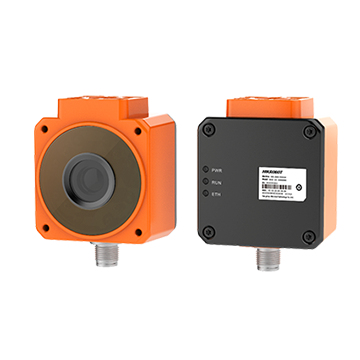

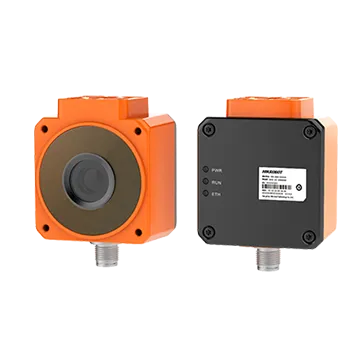

SC2000A AGV Guide Sensor，0.5MP，Mono，M12-2mm focal length，focus 100mm

Name: SC2000A AGV Guide Sensor, 0.5MP, Mono, M12-2mm focal length, focus 100mm
Brand: HIKROBOT
SKU: MV-SC2005AM-02WBN

Built-in code reading algorithm to read DM codes.

Send inquiry

Download datasheet (PDF)

Highlights

Built-in algorithm reads DM codes.
Robust code-reading algorithm handles codes with spots, defects, and low contrast.
A CMOS sensor delivers high-quality images.
Multiple indicators display status for easy commissioning.
M12 lens mount for a large field of view.
Optimised optical design provides uniform illumination and handles strong reflections.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-SC2005AM-02WBN Category: Smart Camera

SC2000A AGV Guide Sensor, 0.5MP, Mono, M12-2mm focal length, focus 100mm is a smart camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-SC2005AM-02WBN. Key data: resolution 800 × 600, max frame rate 100 fps, data interface Fast Ethernet (100 Mbit/sec), RS-485. Typical use is stand-alone inspection and identification directly at the line. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Robust code-reading algorithm handles codes with spots, defects, and low contrast. A CMOS sensor delivers high-quality images. Multiple indicators display status for easy commissioning. M12 lens mount for a large field of view. Optimised optical design provides uniform illumination and handles strong reflections.

SC2000A AGV Guide Sensor，0.5MP，Mono，M12-2mm focal length，focus 100mm (MV-SC2005AM-02WBN) at a glance: 800 × 600 resolution, CMOS, global shutter sensor, 1/3.6" sensor format, up to 100 fps, Mono output, Fast Ethernet (100 Mbit/sec), RS-485 interface, SmartSDK, UDP, Serial protocols and 68 mm × 60 mm × 40.8 mm (2.7" × 2.4" × 1.6") housing. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Built-in algorithm reads DM codes. — Robust code-reading algorithm handles codes with spots, defects, and low contrast. — A CMOS sensor delivers high-quality images. — Multiple indicators display status for easy commissioning. — M12 lens mount for a large field of view. — Optimised optical design provides uniform illumination and handles strong reflections.

Specifications

Product Model	MV-SC2005AM-02WBN
Type	SC2000A AGV Guide Sensor，0.5MP，Mono，M12-2mm focal length，focus 100mm
Communication Protocol	SmartSDK, UDP, Serial
Sensor Type	CMOS, global shutter
Pixel Size	4.8 μm × 4.8 μm
Sensor Size	1/3.6"
Resolution	800 × 600
Max Frame Rate	100 fps
Gain	1 dB to 330 dB
Exposure Time	20 μs to 9000 μs
Mono Color	Mono
Data Interface	Fast Ethernet (100 Mbit/sec), RS-485
Digital I/O	12-pin M12 connector provides power supply and RS-485 × 1
Power Supply	24 VDC
Focal Length	2.5 mm
Working Distance	100 mm ± 5 mm
Dimension	68 mm × 60 mm × 40.8 mm (2.7" × 2.4" × 1.6")
Weight	Approx. 200 g (0.4 lb.)
Ingress Protection	IP65 (with proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	10% to 90% RH, non-condensing
Client Software	IDMVS
Certification	CE, RoHS
Symbologies	2-dimensional codes: DM-12, DM-14
Max Reading Speed	100 codes/sec
Max Running Speed	3 m/sec (it is the AGV's max. running speed)
Max Power Consumption	18 W@24 VDC (self light source enabled) 3 W@24 VDC (self light source disabled)
Displacement Accuracy	0.1 mm
Angle Accuracy	0.1°
Field Of View	93.8°
Field Of View Range	170 mm × 130 mm (it is the field of view under 100 mm ± 5 mm working distance. If the working distance changes, the field of view will vary too.)
