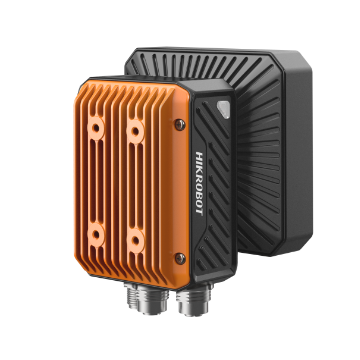

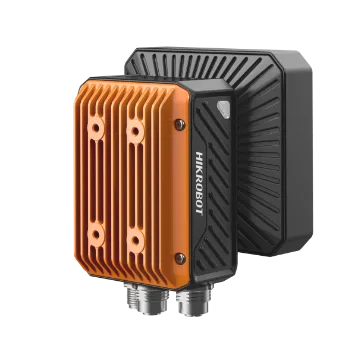

SC6000 Series Smart Camera，1.6MP，Mono，M12-6mm focal length，Multi-color light source
Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
Camera Solutions
Beschreibung
Integrates VM functions with a library of over 140 algorithms. Four-colour lighting (red/green/blue/white) switches on demand. Multiple I/O interfaces handle a range of input and output signals. Supports a range of communication protocols. Status indicators simplify debugging and maintenance. Rated IP67 against dust and water.
Product Highlights
AI deep learning handles OCR, object recognition, defect detection, and more. — Integrates VM functions with a library of over 140 algorithms. — Four-colour lighting (red/green/blue/white) switches on demand. — Multiple I/O interfaces handle a range of input and output signals. — Supports a range of communication protocols. — Status indicators simplify debugging and maintenance. — Rated IP67 against dust and water.
Specifications
| Product Model | MV-SC6016M-06M-XBN |
|---|---|
| Type | SC6000 Series Smart Camera，1.6MP，Mono，M12-6mm focal length，Multi-color light source |
| Communication Protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max Frame Rate | 120 fps |
| Gain | 0 dB to 15 dB |
| Exposure Time | 25 μs to 30000 μs |
| Pixel Format | Mono 8 |
| Mono Color | Mono |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, and light source output (max. 30 W) × 1 |
| Power Supply | 24 VDC |
| Power Consumption | External light source and built-in light source cannot be used at the same time Avg. 12 W @ 24 VDC (with no external light source and the built-in light source disabled) Avg. 42 W @ 24 VDC (with external light source) Avg. 16.6 W @ 24 VDC (built-in light source is enabled) Max. 18 W @ 24 VDC (with no external light source and the built-in light source disabled) Max. 48 W @ 24 VDC (with external light source or the built-in light source enabled) |
| Lens Mount | M12-mount, mechanical focus |
| Focal Length | 6 mm |
| Light Source | Red light, green light, blue light, white light (switching by software) |
| Indicator | Power indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2) |
| Dimension | 77 mm × 98 mm × 115.7 mm (3.0" × 3.9" × 4.6") |
| Weight | Approx. 750 g (1.7 lb.) |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration Resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock Resistance | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Certification | CE, KC |
| Function Module | Vision Master Platform (include deep learning module) |
| Memory | 8 GB |
| Storage | 64 GB |
| Extended Interface | VGA × 1, and USB host × 1 |
