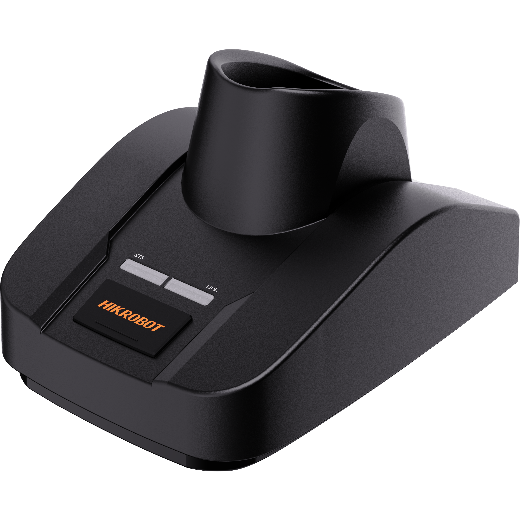

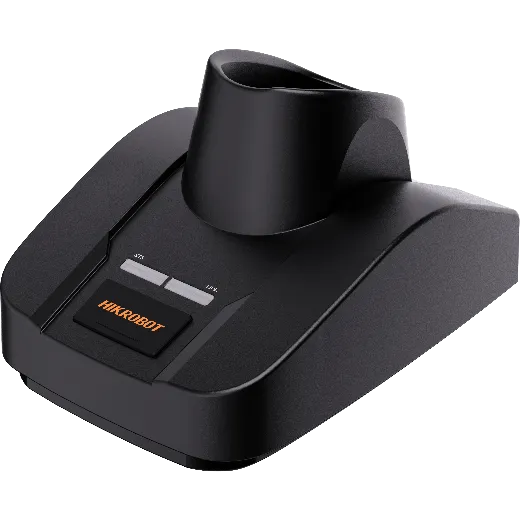

USB Smart Base

Name: USB Smart Base
Brand: HIKROBOT
SKU: MV-IDH3000B/SBASE/U

Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations.

Send inquiry

Download datasheet (PDF)

Highlights

Bluetooth 5.0 enables convenient wireless operation.
USB, network, or RS-232 interface options.
Parameter configuration and device management via the IDMVS client software.
Speaks TCP, FTP, UDP, and Serial.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDH3000B/SBASE/U Category: Handheld Code Reader

USB Smart Base is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH3000B/SBASE/U. Key data: communication mode Bluetooth BT 5.0, BLE, ingress protection IP40. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

USB, network, or RS-232 interface options. Parameter configuration and device management via the IDMVS client software. Speaks TCP, FTP, UDP, and Serial.

Product Highlights

Bluetooth 5.0 enables convenient wireless operation. — USB, network, or RS-232 interface options. — Parameter configuration and device management via the IDMVS client software. — Speaks TCP, FTP, UDP, and Serial.

Specifications

Product Model	MV-IDH3000B/SBASE/U
Type	USB Smart Base
Communication Protocol	SmartSDK, USB (HID/CDC), Bluetooth, Serial (RS-232)
Data Interface	USB 2.0, USB 3.0, RS-232, DC terminal1
Power Supply	USB: 5 VDC DC terminal: 12 VDC to 24VDC
Current Consumption	USB 2.0: 1.5 A (max.), 0.14 A (during standby) DC terminal: 0.7 A (max.), 0.06 A (during standby)
Dimension	100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3")
Weight	Approx. 180 g (0.4 lb.)
Ingress Protection	IP40
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity	20% RH to 80% RH (no condensation)
Client Software	IDMVS
Certification	CE, KC
Communication Mode	Bluetooth BT 5.0, BLE
Wireless Range	100 m (open area)
Charging Time	USB: 8.5 h
