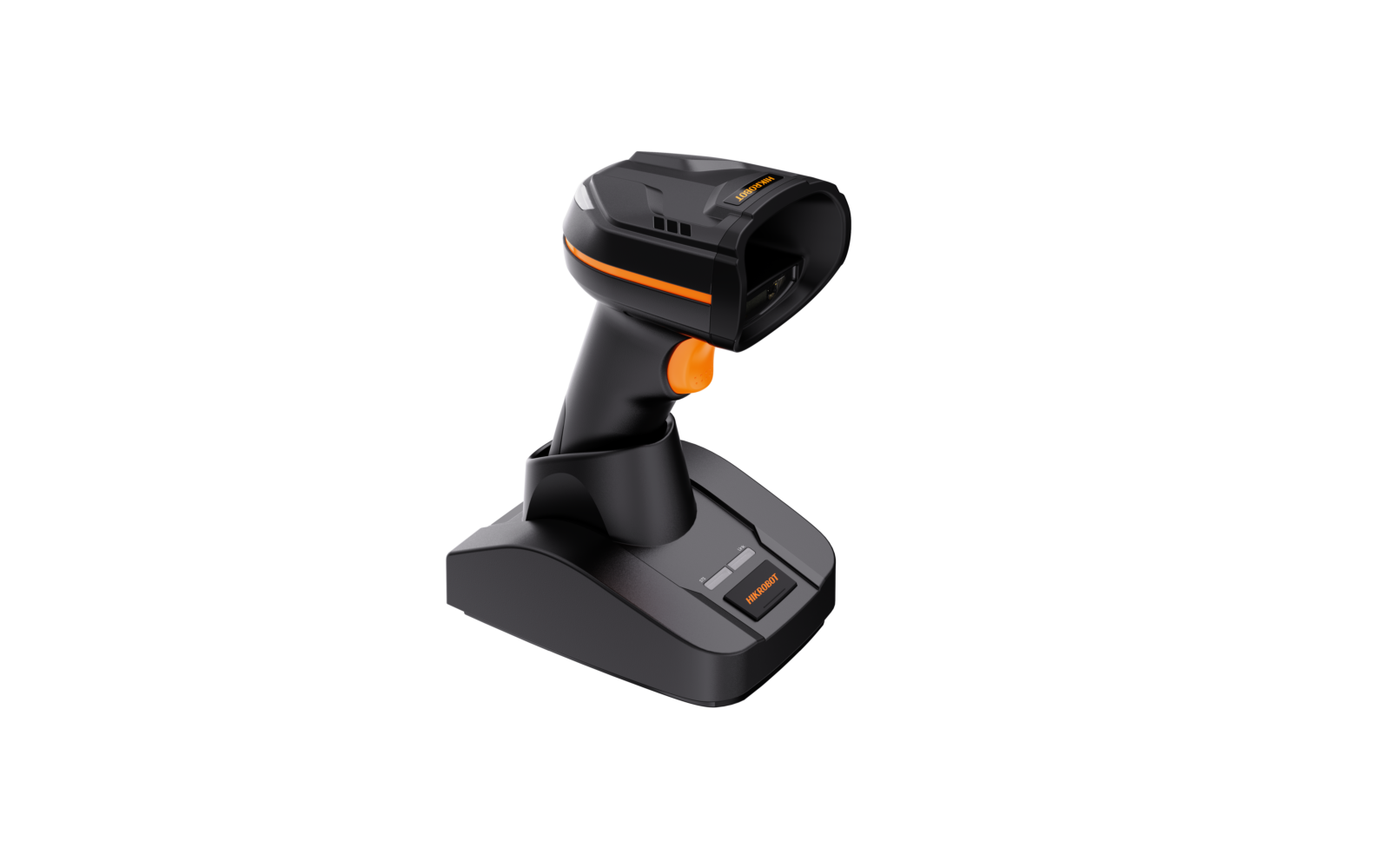

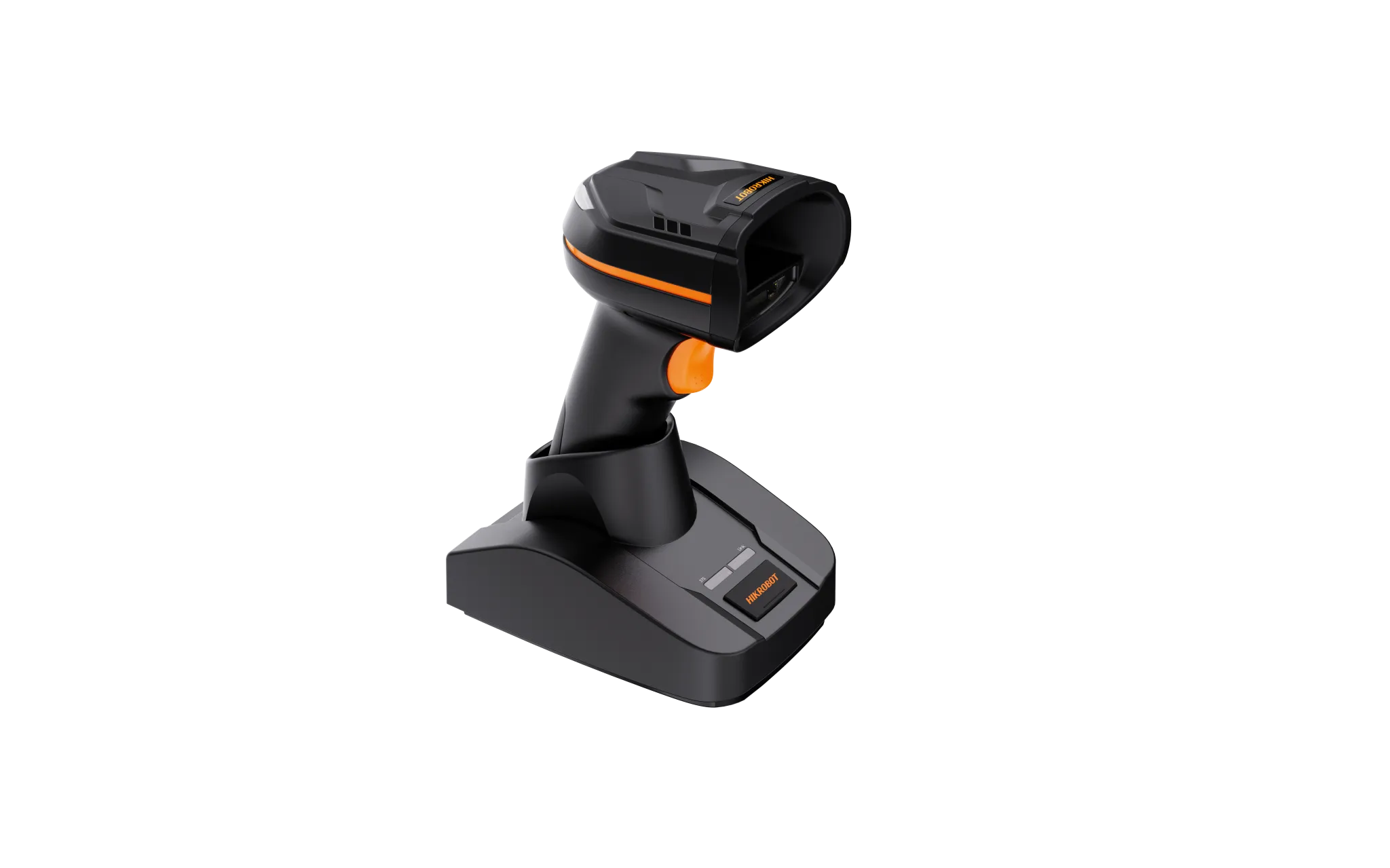

Industrial Wireless Handheld Code Reader（IP LAN）

Name: Industrial Wireless Handheld Code Reader (IP LAN)
Brand: HIKROBOT
SKU: MV-IDH3000B/13NR/05RN/LES

Built-in code reading algorithm for decoding different types of 1D and 2D codes.

Send inquiry

Download datasheet (PDF)

Highlights

A built-in algorithm decodes a range of 1D and 2D codes.
Reads reliably even with spots, defects, or low contrast.
Continuous and batch reading modes raise throughput.
Bluetooth 5.0 enables convenient wireless operation.
Smart bases allow parameter setup and device management through the IDMVS client software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDH3000B/13NR/05RN/LES Category: Handheld Code Reader

Industrial Wireless Handheld Code Reader（IP LAN） is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH3000B/13NR/05RN/LES. Key data: min accuracy 3 mil, communication mode Bluetooth BT 5.0, BLE, ingress protection IP40, battery 3150 mAh. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Reads reliably even with spots, defects, or low contrast. Continuous and batch reading modes raise throughput. Bluetooth 5.0 enables convenient wireless operation. Smart bases allow parameter setup and device management through the IDMVS client software.

Industrial Wireless Handheld Code Reader（IP LAN） (MV-IDH3000B/13NR/05RN/LES) at a glance: 1280 × 1024 resolution, IP40 protection and weighs 180 g (0.4 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Continuous and batch reading modes raise throughput. — Bluetooth 5.0 enables convenient wireless operation. — Smart bases allow parameter setup and device management through the IDMVS client software.

Specifications

Product Model	MV-IDH3000B/13NR/05RN/LES
Type	Industrial Wireless Handheld Code Reader（IP LAN）
Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin Stacked code: PDF417
Min Accuracy	3 mil
Sensor Type	CMOS
Resolution	1280 × 1024
Depth Of Field	Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm
Field Of View	Horizontal 40°, vertical 34°
Detection Angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol Contrast	20%
Communication Protocol	SmartSDK, TCP Client, FTP, TCP Server, Profinet, Ethernet/IP, Modbus, UDP, Serial (RS-232), Bluetooth, MC/SLMP, FINS2
Data Interface	Fast Ethernet (100 Mbit/s), RS-232, DC terminal
Power Supply	12 VDC to 24 VDC
Current Consumption	0.7 A (max.), 0.06 A (during standby)
Focal Length	4.7 mm
Ambient Illumination	0 lux to 100000 lux
Light Source	Red LED
Aiming System	Cross laser aiming
Prompt	LED indicator, buzzer, vibrator
Dimension	100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3")
Weight	Approx. 180 g (0.4 lb.)
Ingress Protection	IP40
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity	20% RH to 80% RH (no condensation)
Laser Safety Class	Laser 2
Wavelength	650 nm
Pulse Width	8 ms
Maximum Power	1 mW
Client Software	IDMVS
Certification	CE, KC
Communication Mode	Bluetooth BT 5.0, BLE
Wireless Range	100 m (open range)
Battery	3150 mAh
Charging Time	4 h
Endurance	13 h (interval scanning, once in 2 seconds)
Drop Height	Dropping: 1.8 m, 50 times Rolling: 0.5 m, 1200 times
Static Electricity Resistant	± 16 kV (air discharge), ± 8 kV (contact discharge)
