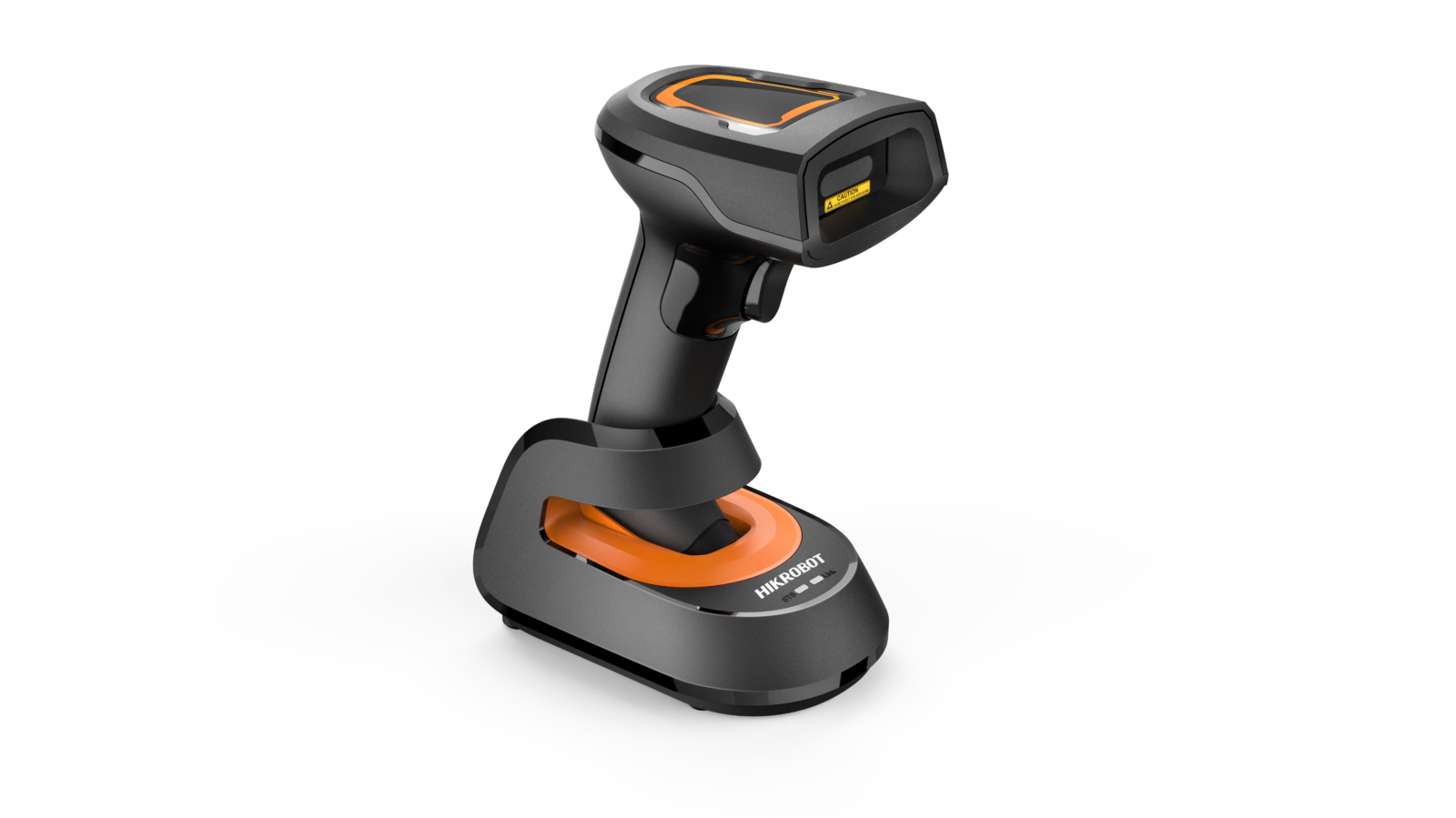

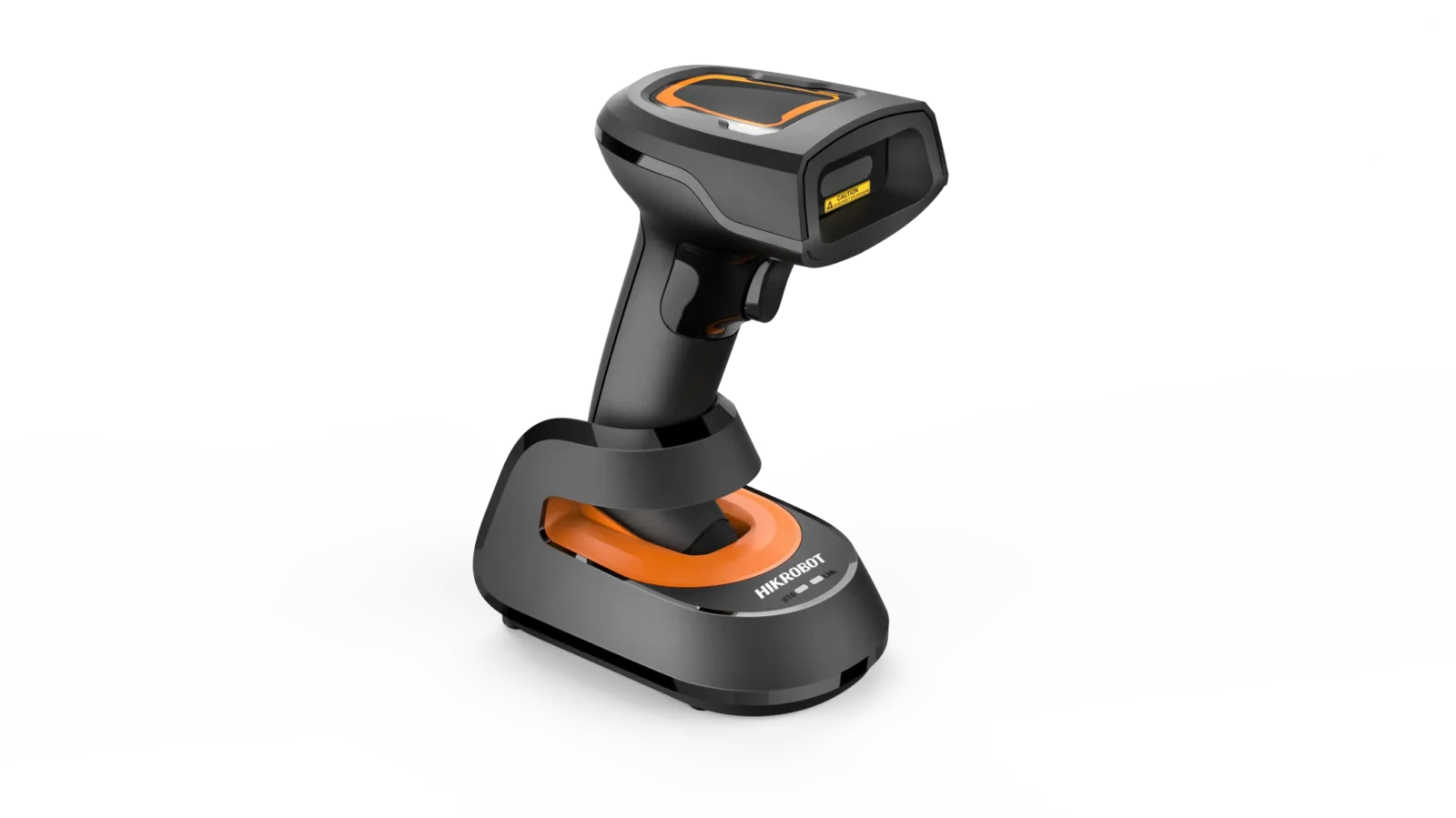

Wireless Handheld Code Reader Package
Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Reads reliably even with spots, defects, or low contrast. Continuous and batch reading modes raise throughput. 2.4 GHz wireless communication with a stable, reliable signal. A 2700 mAh battery gives long standby time. Rated IP52 and survives a 1.5 m drop.
Product Highlights
A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Continuous and batch reading modes raise throughput. — 2.4 GHz wireless communication with a stable, reliable signal. — A 2700 mAh battery gives long standby time. — Rated IP52 and survives a 1.5 m drop.
Specifications
| Product Model | MV-IDH2000RF/13SR/05WN/UC |
|---|---|
| Type | Wireless Handheld Code Reader Package |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked codes: PDF417 |
| Min Accuracy | 1D codes: 3 mil 2D codes: 10 mil |
| Sensor Type | CMOS, global shutter |
| Resolution | 1280 × 1024 |
| Depth Of Field | Code 128 (3 mil): 70 mm to 160 mm Code 128 (10 mil): 30 mm to 440 mm QR Code (10 mil): 45 mm to 235 mm QR Code (15 mil): 20 mm to 360 mm QR Code (20 mil): 20 mm to 460 mm |
| Field Of View | Horizontal 39°, vertical 29° |
| Detection Angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol Contrast | 20% |
| Communication Protocol | SmartSDK, USB, 2.4 G |
| Data Interface | Code reader: USB 2.0 (Type B) Smart base: USB 2.0 (Type B), USB 2.0 (Type A) |
| Power Supply | 5 VDC |
| Focal Length | 4.9 mm |
| Ambient Illumination | 0 lux to 100000 lux |
| Light Source | White LED |
| Aiming System | Cross laser aiming |
| Prompt | LED indicator, buzzer |
| Dimension | Code reader: 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") Smart base: 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0") |
| Weight | Code reader: Approx. 160 g (0.4 lb.) Smart base: Approx. 120 g (0.3 lb.) |
| Ingress Protection | Code reader: IP52 Smart base: IP40 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Laser Safety Class | Laser 2 |
| Wavelength | 650 nm |
| Pulse Width | 8 ms |
| Maximum Power | 1 mW |
| Client Software | IDMVS |
| Certification | CE, KC |
| Wireless Range | 80 m (open range) |
| Battery | 2700 mAh, chargeable lithium battery |
| Charging Time | 6 h |
| Endurance | 12 h (interval scanning, once in 2 seconds) |
| Max Frame Rate | 50 fps |
| Pixel Size | 2.7 μm × 2.7 μm |
| Sensor Size | 1/4" |
| Radio Frequency | 2.4 G |
| Max Power Consumption | 6 W @ 5 VDC |
| Lens Mount | M5.0-mount |
| Beam Divergence Angle | 14.5° |
| Repetitive Frequency | 50 Hz |
