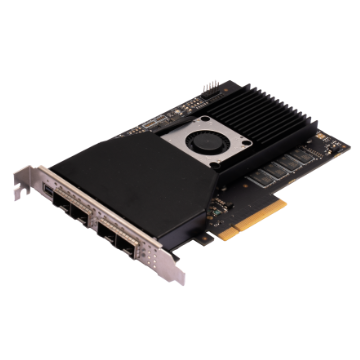

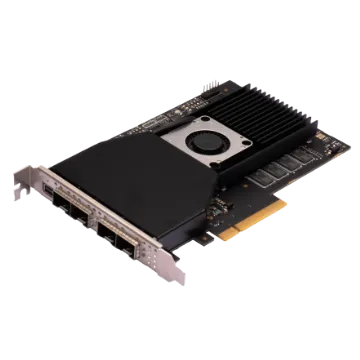

XoF SFP+ Frame Grabbers，4 ports， 40G bandwidth
Supports XoFLink protocol with multiple fiber ports to transmit data.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
PCIe Gen3 ×8 interconnect for simultaneous capture from 4 cameras at 10 Gbps each. Indicators show frame-grabber status in real time. Multiple I/O connectors handle input and output. Includes an SDK for custom development.
Product Highlights
XoFLink protocol across multiple fibre ports. — PCIe Gen3 ×8 interconnect for simultaneous capture from 4 cameras at 10 Gbps each. — Indicators show frame-grabber status in real time. — Multiple I/O connectors handle input and output. — Includes an SDK for custom development.
Specifications
| Product Model | MV-GS1104F |
|---|---|
| Type | XoF SFP+ Frame Grabbers，4 ports， 40G bandwidth |
| Certification | CE, KC, RoHS |
| On Board Memory | 4 GB DDR4 |
| Interconnect | PCI-E gen3 × 8 |
| Delivery Bandwidth | 7800 MB/s (max. transmission bandwidth) 6700 MB/s (sustained transmission bandwidth) |
| Indicator | 1 |
| Standard | XoFLink |
| Camera Quantity Supported | 1/2/3/4 |
| Camera Connection Speed | 10 Gbps for single port, 40 Gbps in total |
| Stream | 4 |
| I/O Type | Provides 11 configurable I/O connectors, compatible with single-ended/differential signals, and supports cascading of multiple frame grabbers. ● I/O on bracket: Line 0 to Line 7 supports input and output (3.3 V to 24 V) ● I/O on PCB: Line 8 to Line 10 supports input (3.3 V to 12 V) and output (3.3 V) |
| Connector | Connector of I/O on bracket: 20-pin MiniDP female connector Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 x 5, 10-pin hole) |
| Power Consumption | Typ. 20 W |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client Software | MVS |
| Operating System | Windows 7/10/11, Ubuntu 16.04 to 20.04 on Linux |
| SFP Module | SFP+ × 4 |
| Data Interface | 2LC fiber port |
| LED Indicator | 4 |
