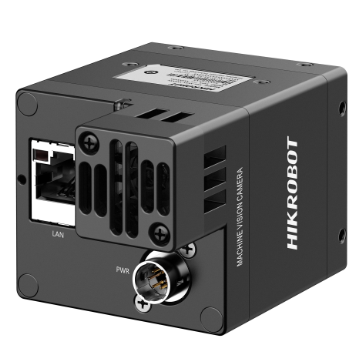

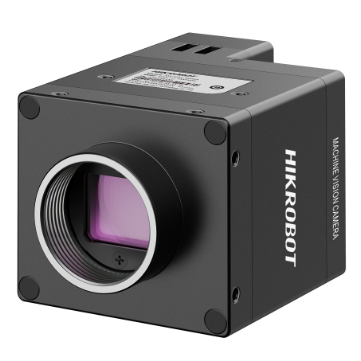

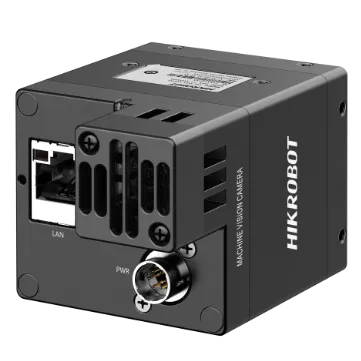

Area Scan Camera, 12MP, 10GigE, Color, C-mount, with fan
Resolution of 4096 × 3072, pixel size of 3.45 µm × 3.45 µm.
- Resolution of 4096 × 3072 with 3.45 µm × 3.45 µm pixels.
- C-Mount lens compatible.
- Connects via 10 GigE, compatible with standard GigE networks.
- Mounting holes on the panels for flexible installation.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Camera Solutions
Area Scan Camera, 12MP, 10GigE, Color, C-mount, with fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH120-60TC-C-NF. Key data: resolution 4096 × 3072, sensor type CMOS, global shutter, max frame rate 80 fps @ 4096 × 3072 Bayer GB 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 12MP, GigE, Color (MV-CH120-60GC)
- Area Scan Camera, 12MP, GigE, V5, Color (MV-CH120-60GC V5)
- Area Scan Camera, 12MP, GigE, Mono (MV-CH120-60GM)
- Area Scan Camera, 12MP, GigE, V5, Mono (MV-CH120-60GM V5)
- Area Scan Camera, 12MP, 10GigE, Mono, C-mount, with fan (MV-CH120-60TM-C-NF)
- Area Scan Camera, 12MP, Color (MV-CH120-60UC)
- Area Scan Camera, 12MP, V5, Color (MV-CH120-60UC V5)
- Area Scan Camera, 12MP, Mono (MV-CH120-60UM)
Description
C-Mount lens compatible. Connects via 10 GigE, compatible with standard GigE networks. Mounting holes on the panels for flexible installation. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Product Highlights
Resolution of 4096 × 3072 with 3.45 µm × 3.45 µm pixels. — C-Mount lens compatible. — Connects via 10 GigE, compatible with standard GigE networks. — Mounting holes on the panels for flexible installation. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Specifications
| Product Model | MV-CH120-60TC-C-NF |
|---|---|
| Type | Area Scan Camera, 12MP, 10GigE, Color, C-mount, with fan |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1.1" |
| Resolution | 4096 × 3072 |
| Max Frame Rate | 80 fps @ 4096 × 3072 Bayer GB 8 |
| Dynamic Range | 54.4 dB |
| SNR | 43.9 dB |
| Gain | 0 dB to 18 dB |
| Exposure Time | 20 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Bayer GB 8/10/10Packed/12/12Packed |
| Mono Color | Color |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | C-mount |
| Dimension | 50 mm × 45 mm × 68.6 mm (2.0" × 1.8" × 2.7") |
| Weight | Approx. 203 g (0.4 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 8.7 W @ 12 VDC |
