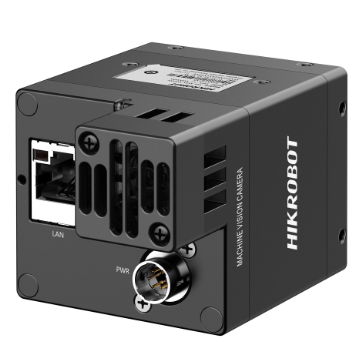

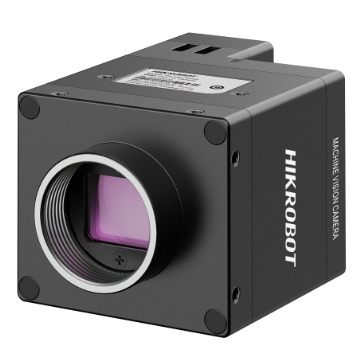

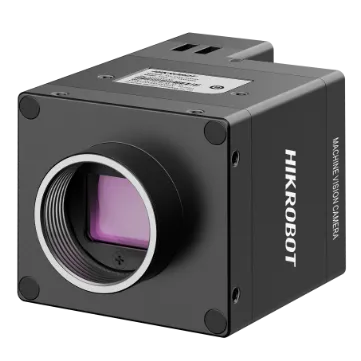

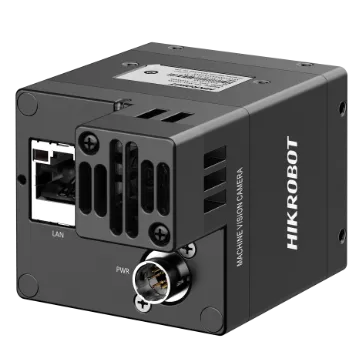

Area Scan Camera, 12MP, 10GigE, Mono, C-mount, with fan

Name: Area Scan Camera, 12MP, 10GigE, Mono, C-mount, with fan
Brand: HIKROBOT
SKU: MV-CH120-60TM-C-NF

Resolution of 4096 × 3072, pixel size of 3.45 µm × 3.45 µm.

Send inquiry

Download datasheet (PDF)

Highlights

Resolution of 4096 × 3072 with 3.45 µm × 3.45 µm pixels.
C-Mount lens compatible.
Connects via 10 GigE, compatible with standard GigE networks.
Mounting holes on the panels for flexible installation.
Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH120-60TM-C-NF Category: Area & Line Scan Cameras

Area Scan Camera, 12MP, 10GigE, Mono, C-mount, with fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH120-60TM-C-NF. Key data: resolution 4096 × 3072, sensor type CMOS, global shutter, max frame rate 80 fps @ 4096 × 3072 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

C-Mount lens compatible. Connects via 10 GigE, compatible with standard GigE networks. Mounting holes on the panels for flexible installation. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Area Scan Camera, 12MP, 10GigE, Mono, C-mount, with fan (MV-CH120-60TM-C-NF) at a glance: 4096 × 3072 resolution, Stacked BSI sensor, 1.1" sensor format, 3.45 μm × 3.45 μm pixel size, up to 80 fps, Mono output, 10 Gigabit Ethernet (10000 Mbit/s) interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Resolution of 4096 × 3072 with 3.45 µm × 3.45 µm pixels. — C-Mount lens compatible. — Connects via 10 GigE, compatible with standard GigE networks. — Mounting holes on the panels for flexible installation. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Specifications

Product Model	MV-CH120-60TM-C-NF
Type	Area Scan Camera, 12MP, 10GigE, Mono, C-mount, with fan
Sensor Type	CMOS, global shutter
Sensor Model	Stacked BSI
Pixel Size	3.45 μm × 3.45 μm
Sensor Size	1.1"
Resolution	4096 × 3072
Max Frame Rate	80 fps @ 4096 × 3072 Mono 8
Dynamic Range	54.4 dB
SNR	43.9 dB
Gain	0 dB to 18 dB
Exposure Time	20 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/10Packed/12/12Packed
Mono Color	Mono
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC
Lens Mount	C-mount
Dimension	50 mm × 45 mm × 68.6 mm (2.0" × 1.8" × 2.7")
Weight	Approx. 203 g (0.4 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with GigE Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 8.2 W @ 12 VDC
