Area Scan Camera, 12MP, Color

Name: Area Scan Camera, 12MP, Color
Brand: HIKROBOT
SKU: MV-CH120-60UC

Adopts new hardware platform to optimize logical resource and reduce power consumption.

Send inquiry

Download datasheet (PDF)

Highlights

New hardware platform optimises logic resources and reduces power consumption.
Offers auto or manual gain, exposure, white balance, LUT, and gamma correction.
Supports CCM, Sequencer, Super Bayer, and Super Palette.
Fresh structural design supports installation from four sides.
Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH120-60UC Category: Area & Line Scan Cameras

Area Scan Camera, 12MP, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH120-60UC. Key data: resolution 4096 × 3000, sensor type CMOS, global shutter, max frame rate 30.7 fps @ 4096 × 3000 Bayer GB 8, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. Supports CCM, Sequencer, Super Bayer, and Super Palette. Fresh structural design supports installation from four sides. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 12MP, Color (MV-CH120-60UC) at a glance: 4096 × 3000 resolution, Stacked BSI sensor, 1.1" sensor format, 3.45 μm × 3.45 μm pixel size, up to 30.7 fps, Color output, USB 3.0, compatible with USB 2.0 interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

New hardware platform optimises logic resources and reduces power consumption. — Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. — Supports CCM, Sequencer, Super Bayer, and Super Palette. — Fresh structural design supports installation from four sides. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CH120-60UC
Type	Area Scan Camera, 12MP, Color
Sensor Type	CMOS, global shutter
Sensor Model	Stacked BSI
Pixel Size	3.45 μm × 3.45 μm
Sensor Size	1.1"
Resolution	4096 × 3000
Max Frame Rate	30.7 fps @ 4096 × 3000 Bayer GB 8
Dynamic Range	67.5 dB
SNR	44.2 dB
Gain	0 dB to 12 dB
Exposure Time	45 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/12, Bayer GB 8/10/10Packed /12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Mono Color	Color
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	USB 3.0, compatible with USB 2.0

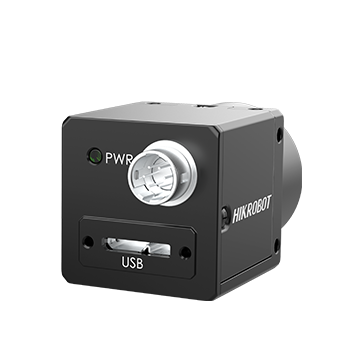

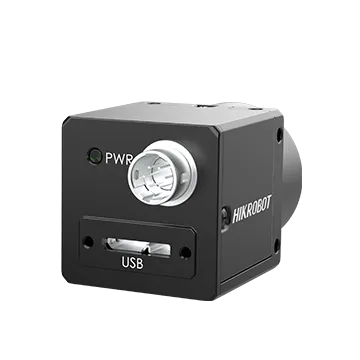

Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC, supports USB 3.0 power supply

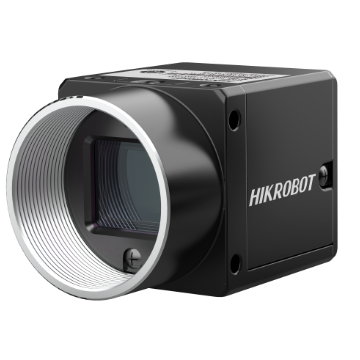

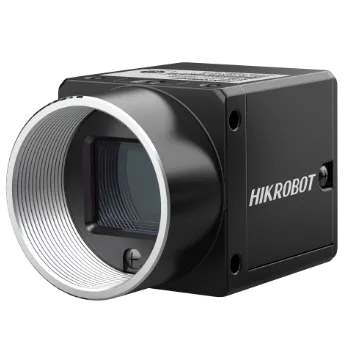

Lens Mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 80 g (0.2 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (–14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with USB 3.0 Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 2.4 W @ 5 VDC (USB 3.0 provides power supply)
