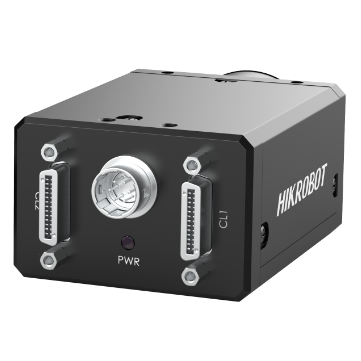

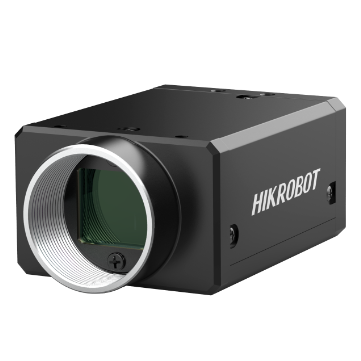

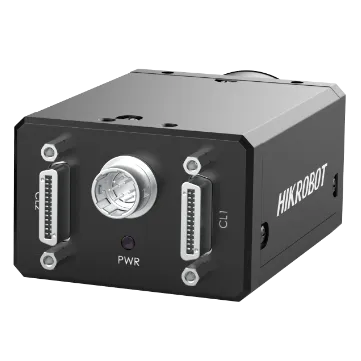

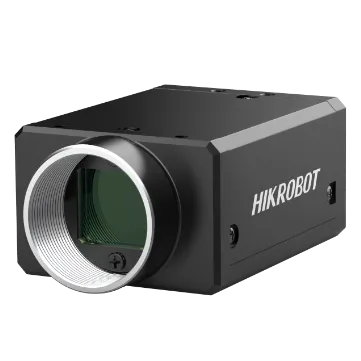

Area Scan Camera, 12MP, Camera Link, IMX253, Color
Supports auto or manual adjustment of gain exposure time, LUT and Gamma correction.
Camera Solutions
Beschreibung
Supports hardware trigger, software trigger, and free-run mode, including triggering via Camera Link frame grabber. Supports custom ROI and horizontal/vertical image flipping. Camera Link interface supports Base, Medium, Full, and 80-bit configuration modes. Works with the Camera Link V2.0 protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Offers auto or manual gain, exposure, LUT, and gamma correction. — Supports hardware trigger, software trigger, and free-run mode, including triggering via Camera Link frame grabber. — Supports custom ROI and horizontal/vertical image flipping. — Camera Link interface supports Base, Medium, Full, and 80-bit configuration modes. — Works with the Camera Link V2.0 protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH120-10CC |
|---|---|
| Type | Area Scan Camera, 12MP, Camera Link, IMX253, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX253 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1.1" |
| Resolution | 4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80-bit) |
| Max Frame Rate | 51.4 fps @ 4096 × 3000 Bayer RG 8 (Base/Medium/Full) 68.1 fps @ 3840 × 3000 Bayer RG 8 (80-bit) |
| Dynamic Range | 71.6 dB |
| SNR | 39.7 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 1 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Bayer RG 8/10/12, RGB 8 |
| Mono Color | Color |
| Binning | Not support |
| Decimation | Not support |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Camera Link with SDR interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH 80% RH (no condensation) |
| Client Software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 4.5 W @ 12 VDC |
| Configuration Mode | Base, Medium, Full, 80-bit |
| Tap Geometry | 1X_1Y, 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap Number | 1 Tap, 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel Clock | 40 MHz, 60 MHz, 70 MHz, 85 MHz |
