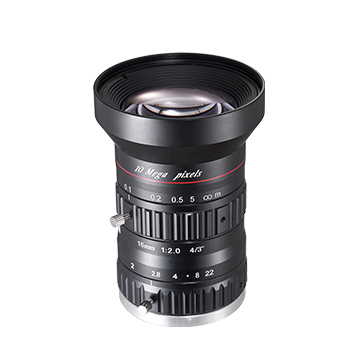

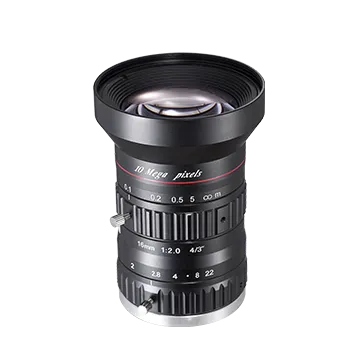

C-Mount Lens, 16mm, F2.0, 4/3″, 10MP
High resolution and excellent image uniformity
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
F2.0 aperture with a maximum image circle of 4/3″. Low distortion improves measurement accuracy. High peripheral brightness ratio ensures consistent image brightness.
Product Highlights
High resolution with excellent image uniformity. — F2.0 aperture with a maximum image circle of 4/3″. — Low distortion improves measurement accuracy. — High peripheral brightness ratio ensures consistent image brightness.
Specifications
| Product Model | SA1620M-10MP |
|---|---|
| Type | C-Mount Lens, 16mm, F2.0, 4/3″, 10MP |
| Focal Length | 16 mm |
| F Number | F2.0 to F22 |
| Image Size | Ø23 mm (4/3") |
| Minimum Object Distance | 0.1 m |
| Field Of View | D (22.6 mm): 72.9° H (18.13 mm): 60.9° V (13.6 mm): 47.3° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M58 × 0.75 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø60 mm × 85.9 mm (Ø 2.4" × 3.4") |
| Weight | 340 g (0.8 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | –2.81% |
