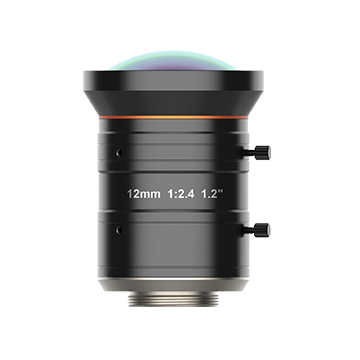

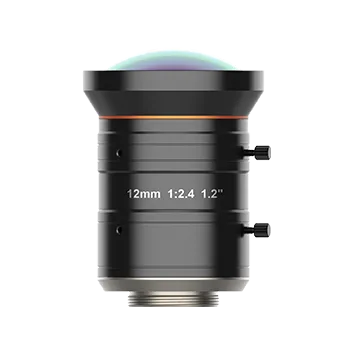

C-Mount Lens, 12mm, F2.4, 1.2″, 25MP
Ultra high resolution and consistency of image clarity
Camera Solutions
Beschreibung
1.2″ image circle with large aperture, low distortion, and high relative illumination. Achromatic optical design improves imaging on colour cameras. Maintains excellent optical properties across different object distances. Excellent vibration resistance and thermal stability, with optical-axis shift within one pixel. Multi-layer broadband coating for visible and near-infrared applications.
Product Highlights
Ultra-high resolution with consistent image clarity. — 1.2″ image circle with large aperture, low distortion, and high relative illumination. — Achromatic optical design improves imaging on colour cameras. — Maintains excellent optical properties across different object distances. — Excellent vibration resistance and thermal stability, with optical-axis shift within one pixel. — Multi-layer broadband coating for visible and near-infrared applications.
Specifications
| Product Model | MVL-KF1224M-25MP |
|---|---|
| Type | C-Mount Lens, 12mm, F2.4, 1.2″, 25MP |
| Focal Length | 12 mm |
| F Number | F2.4 to F16 |
| Image Size | Ø19.3 mm (1.2'') |
| Distortion | 0.39% |
| Minimum Object Distance | 0.1 m |
| Field Of View | D (19.30mm): 76.37° H (14.60mm): 62.32° V (12.63mm): 55.34° |
| Iris Control | Manual |
| Focus Control | Manual |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø50 mm× 66.96 mm (Ø1.97'' × 2.62'') |
| Weight | 215 g (0.474 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
