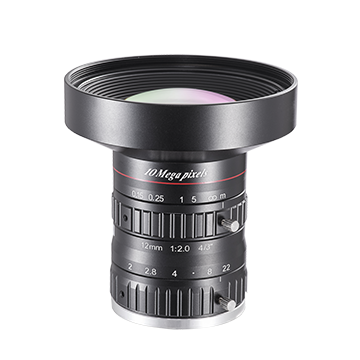

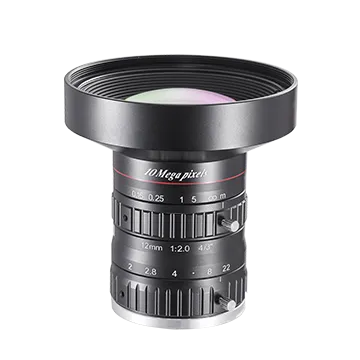

C-Mount Lens, 12mm, F2.0, 4/3″, 10MP
High resolution and excellent image uniformity.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
F2.0 maximum aperture with a 4/3″ image circle. Low distortion improves measurement accuracy. High peripheral brightness ratio ensures consistent image brightness.
Product Highlights
High resolution with excellent image uniformity. — F2.0 maximum aperture with a 4/3″ image circle. — Low distortion improves measurement accuracy. — High peripheral brightness ratio ensures consistent image brightness.
Specifications
| Product Model | SA1220M-10MP |
|---|---|
| Type | C-Mount Lens, 12mm, F2.0, 4/3″, 10MP |
| Focal Length | 12 mm |
| F Number | F2.0 to F22 |
| Image Size | Ø23 mm (4/3") |
| Minimum Object Distance | 0.15 m |
| Field Of View | D (22.6 mm): 89.0° H (18.13 mm): 75.5° V (13.6 mm): 61.1° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M77 × 0.75 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø80 mm × 83.8 mm (Ø3.1" × 3.3") |
| Weight | 445 g (1.0 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | –2.40% |
