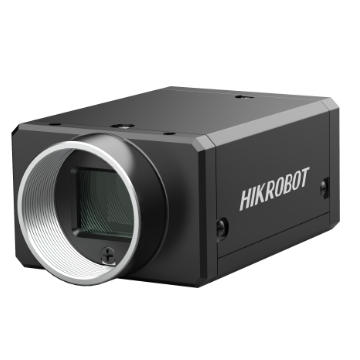

Area Scan Camera, 25MP, GigE, GMAX0505, Color, V4
Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
Camera Solutions
Beschreibung
Supports binning, reverse image output, and LSC; C-Mount lens compatible. Easy, flexible installation with mounting holes on both panels. Connects via GigE, with cable runs up to 100 m and no repeater required. Supports hardware trigger, software trigger, and free-run modes. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels. — Supports binning, reverse image output, and LSC; C-Mount lens compatible. — Easy, flexible installation with mounting holes on both panels. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Supports hardware trigger, software trigger, and free-run modes. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CH250-90GC |
|---|---|
| Type | Area Scan Camera, 25MP, GigE, GMAX0505, Color, V4 |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX0505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 4.5 fps @ 5120 × 5120 Bayer BG 8 |
| Dynamic Range | 63 dB |
| SNR | 36 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 12 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |

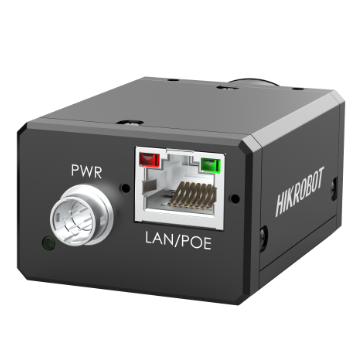

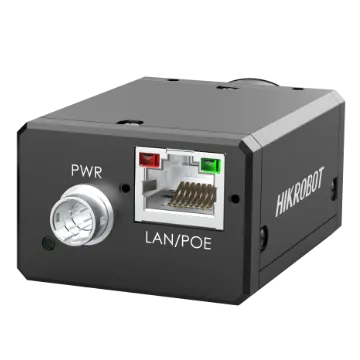

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 3.2 W @ 12 VDC |
