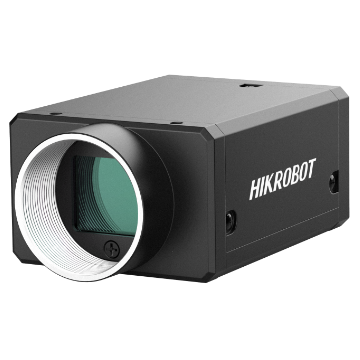

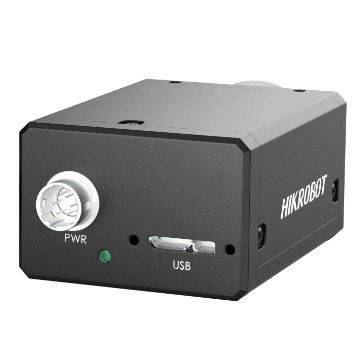

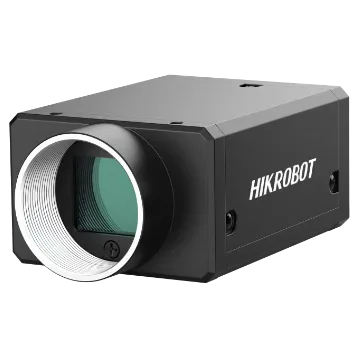

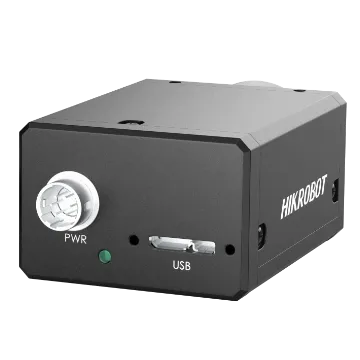

Area Scan Camera, 25MP, USB3, Color
Supports auto adjustment of gain, Gamma, and LUT correction, etc.
- Auto adjustment of gain, gamma correction, and LUT.
- Supports software trigger, hardware trigger, and anyway mode.
- Compact body with panel mounting holes on four sides for flexible setup.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 25MP, USB3, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH250-60UC. Key data: resolution 5120 × 5120, sensor type CMOS, rolling shutter, max frame rate 14.8 fps @ 5120 × 5120 Bayer BG 8, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 25MP, 10GigE, PYTHON25K, Color, M58-mount (MV-CH250-25TC-M58S-NF)
- Area Scan Camera, 25MP, 10GigE, PYTHON25K, Mono, F-mount (MV-CH250-25TM-F-NF)
- Area Scan Camera, 25MP, 10GigE, PYTHON25K, Mono, M58-mount (MV-CH250-25TM-M58S-NF)
- Area Scan Camera, 25MP, 10GigE, Mono, M58-mount, with fan (MV-CH250-60TM-M58S-NF)
- Area Scan Camera, 25MP, USB3, Mono (MV-CH250-60UM)
- Area Scan Camera, 25MP, GigE, GMAX0505, Color, V4 (MV-CH250-90GC)
- Area Scan Camera, 25MP, GigE, GMAX0505, Mono, V4 (MV-CH250-90GM)
- Area Scan Camera, 25MP, GigE, GMAX0505, NIR, V4 (MV-CH250-90GN)
Description
Supports software trigger, hardware trigger, and anyway mode. Compact body with panel mounting holes on four sides for flexible setup. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Auto adjustment of gain, gamma correction, and LUT. — Supports software trigger, hardware trigger, and anyway mode. — Compact body with panel mounting holes on four sides for flexible setup. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH250-60UC |
|---|---|
| Type | Area Scan Camera, 25MP, USB3, Color |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 12.6 mm × 12.6 mm |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 14.8 fps @ 5120 × 5120 Bayer BG 8 |
| Dynamic Range | 69.3 dB |
| SNR | 39.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 58 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, support Global Reset and Trigger Rolling. |
| Pixel Format | Mono 8/10/12, Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_8_YUYV, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB power supply |
| Power Consumption | Typ. 5.5 W @ 5 VDC (USB3.0 provides power supply) |
| Lens Mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 103.8 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
