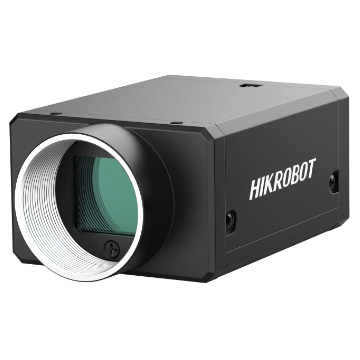

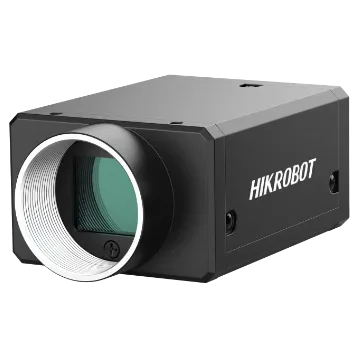

Area Scan Camera, 25MP, USB3, Mono
Supports auto adjustment of gain, Gamma, and LUT correction, etc.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Supports software trigger, hardware trigger, and anyway mode. Compact body with panel mounting holes on four sides for flexible setup. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Auto adjustment of gain, gamma correction, and LUT. — Supports software trigger, hardware trigger, and anyway mode. — Compact body with panel mounting holes on four sides for flexible setup. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH250-60UM |
|---|---|
| Type | Area Scan Camera, 25MP, USB3, Mono |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 12.6 mm × 12.6 mm |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 14.8 fps @ 5120 × 5120 Mono 8 |
| Dynamic Range | 69.3 dB |
| SNR | 39.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 58 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, support Global Reset and Trigger Rolling. |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |

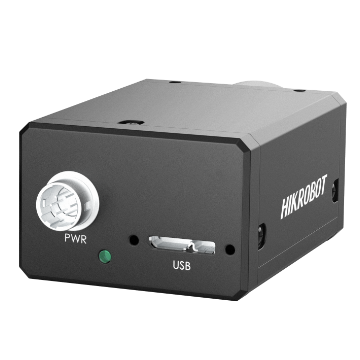

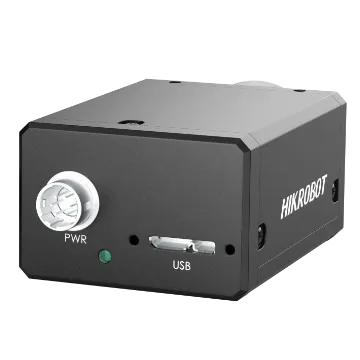

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB power supply |
| Power Consumption | Typ. 5.5 W @ 5 VDC (USB3.0 provides power supply) |
| Lens Mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 103.8 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
