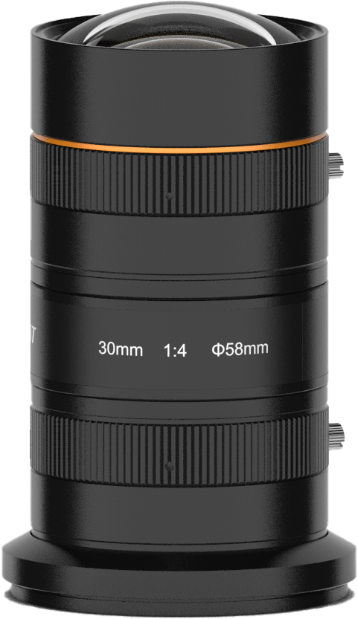

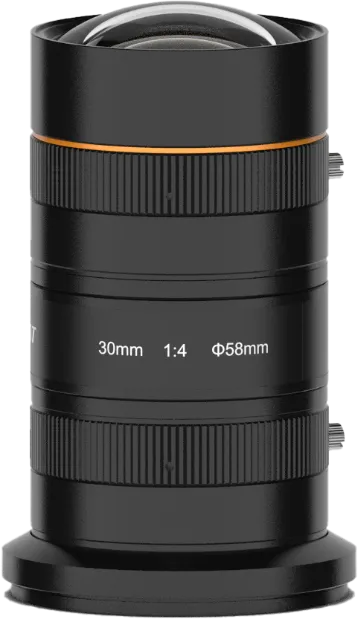

M72-Mount Lens, 30mm, F4.0, Image Size φ58mm, Recommended Magnification 0.031-0.145x
Adopts high-precision lens for 8k 7 μm line scan cameras.
- High-precision lens designed for 8K 7 µm line-scan cameras.
- Excellent image-clarity consistency with high resolution.
- Ultra-high image resolution at the maximum aperture of F4.0.
- Maximum image size Ø58 mm.
Camera Solutions
M72-Mount Lens, 30mm, F4.0, Image Size φ58mm, Recommended Magnification 0.031-0.145x is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-LF3040M-005-M72. Key data: focal length 30 mm, f number F4.0 to F16, mount M72 × P0.75, image size Φ58 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Adapter Ring M42×1.0-F T34.5 (M42x1.0-F T34.5)
- Adapter Ring M58×0.75-C T6.02 (M58x0.75-C T6.02)
- Adapter Ring M58×0.75-F T35 (M58x0.75-F T35)
- C-Mount Lens, 12mm, F2.0, 4/3″, 10MP (SA1220M-10MP)
- C-Mount Lens, 12mm, F2.4, 1.2″, 25MP (MVL-KF1224M-25MP)
- C-Mount Lens, 12mm, F2.4, 1/1.8″, 10MP (MVL-HF1224M-10MP)
- C-Mount Lens, 12mm, F2.4, 2/3″, 5MP (MVL-MF1224M-5MPE)
- C-Mount Lens, 12mm, F2.8, 1.1″, 12MP (MVL-KF1228M-12MPE)
Description
Excellent image-clarity consistency with high resolution. Ultra-high image resolution at the maximum aperture of F4.0. Maximum image size Ø58 mm.
Product Highlights
High-precision lens designed for 8K 7 µm line-scan cameras. — Excellent image-clarity consistency with high resolution. — Ultra-high image resolution at the maximum aperture of F4.0. — Maximum image size Ø58 mm.
Specifications
| Product Model | MVL-LF3040M-005-M72 |
|---|---|
| Type | M72-Mount Lens, 30mm, F4.0, Image Size φ58mm, Recommended Magnification 0.031-0.145x |
| Focal Length | 30 mm |
| F Number | F4.0 to F16 |
| Image Size | Φ58 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Mount | M72 × P0.75 |
| Flange Back Length | 12 mm |
| Dimension | Φ76 mm × 123.93 mm (Φ3.0" × 4.9") |
| Weight | 797 g (1.8 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | –0.84% |
| Magnification Range | 0.145 x to 0.031 x |
| Working Distance Range | 205 mm to 1000 mm (tolerance: ± 5 mm) |
| Conjugate Distance Range | 345 mm to 1137 mm (tolerance: ± 9 mm) |
