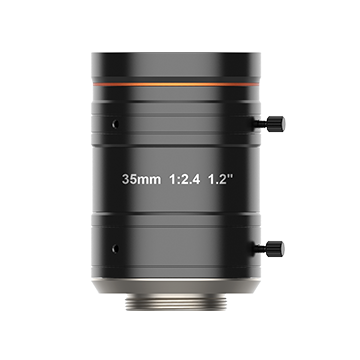

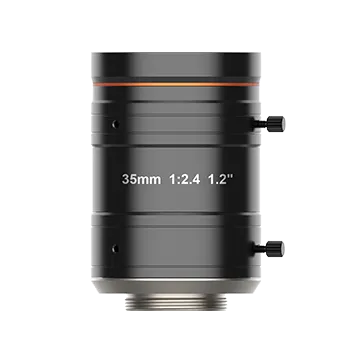

C-Mount Lens, 35mm, F2.4, 1.2″, 25MP
Ultra high resolution and consistency of image clarity
- Ultra-high resolution with consistent image clarity.
- 1.2″ image circle with large aperture, low distortion, and high relative illumination.
- Achromatic optical design improves imaging on colour cameras.
- Maintains excellent optical properties across different object distances.
- Excellent vibration resistance and thermal stability, with optical-axis shift within one pixel.
- Multi-layer broadband coating for visible and near-infrared applications.
Camera Solutions
C-Mount Lens, 35mm, F2.4, 1.2″, 25MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-KF3524M-25MP. Key data: focal length 35 mm, f number F2.4 to F16, mount C-mount, image size Ø19.3 mm (1.2''). Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
1.2″ image circle with large aperture, low distortion, and high relative illumination. Achromatic optical design improves imaging on colour cameras. Maintains excellent optical properties across different object distances. Excellent vibration resistance and thermal stability, with optical-axis shift within one pixel. Multi-layer broadband coating for visible and near-infrared applications.
Product Highlights
Ultra-high resolution with consistent image clarity. — 1.2″ image circle with large aperture, low distortion, and high relative illumination. — Achromatic optical design improves imaging on colour cameras. — Maintains excellent optical properties across different object distances. — Excellent vibration resistance and thermal stability, with optical-axis shift within one pixel. — Multi-layer broadband coating for visible and near-infrared applications.
Specifications
| Product Model | MVL-KF3524M-25MP |
|---|---|
| Type | C-Mount Lens, 35mm, F2.4, 1.2″, 25MP |
| Focal Length | 35 mm |
| F Number | F2.4 to F16 |
| Image Size | Ø19.3 mm (1.2'') |
| Distortion | 0.02% |
| Minimum Object Distance | 0.15 m |
| Field Of View | D (19.30 mm): 29.48° H (14.60 mm): 22.51° V (12.63 mm): 19.54° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M40.5 × 0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø42 mm × 59.3 mm (Ø1.65'' × 2.33'') |
| Weight | 163 g (0.359 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
