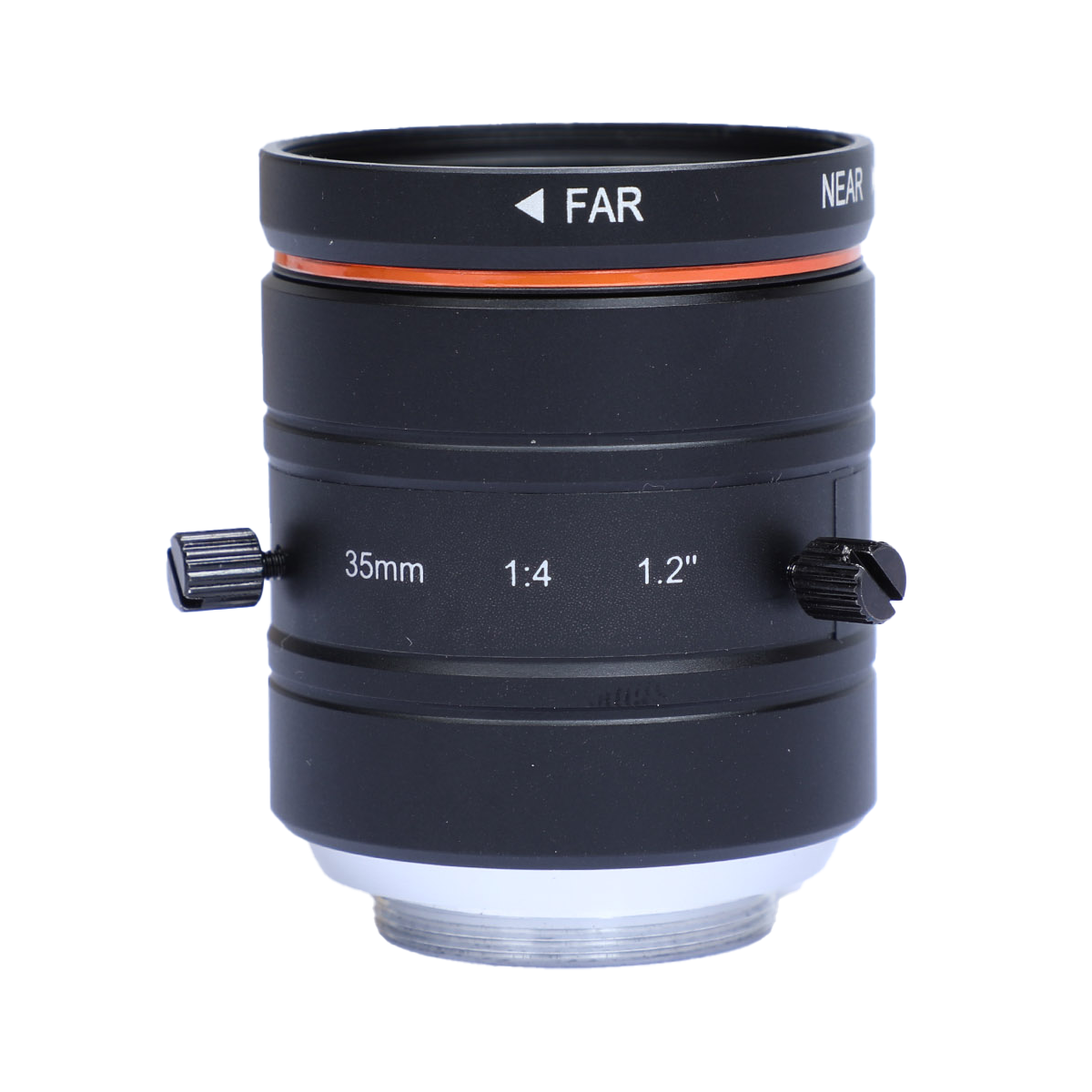

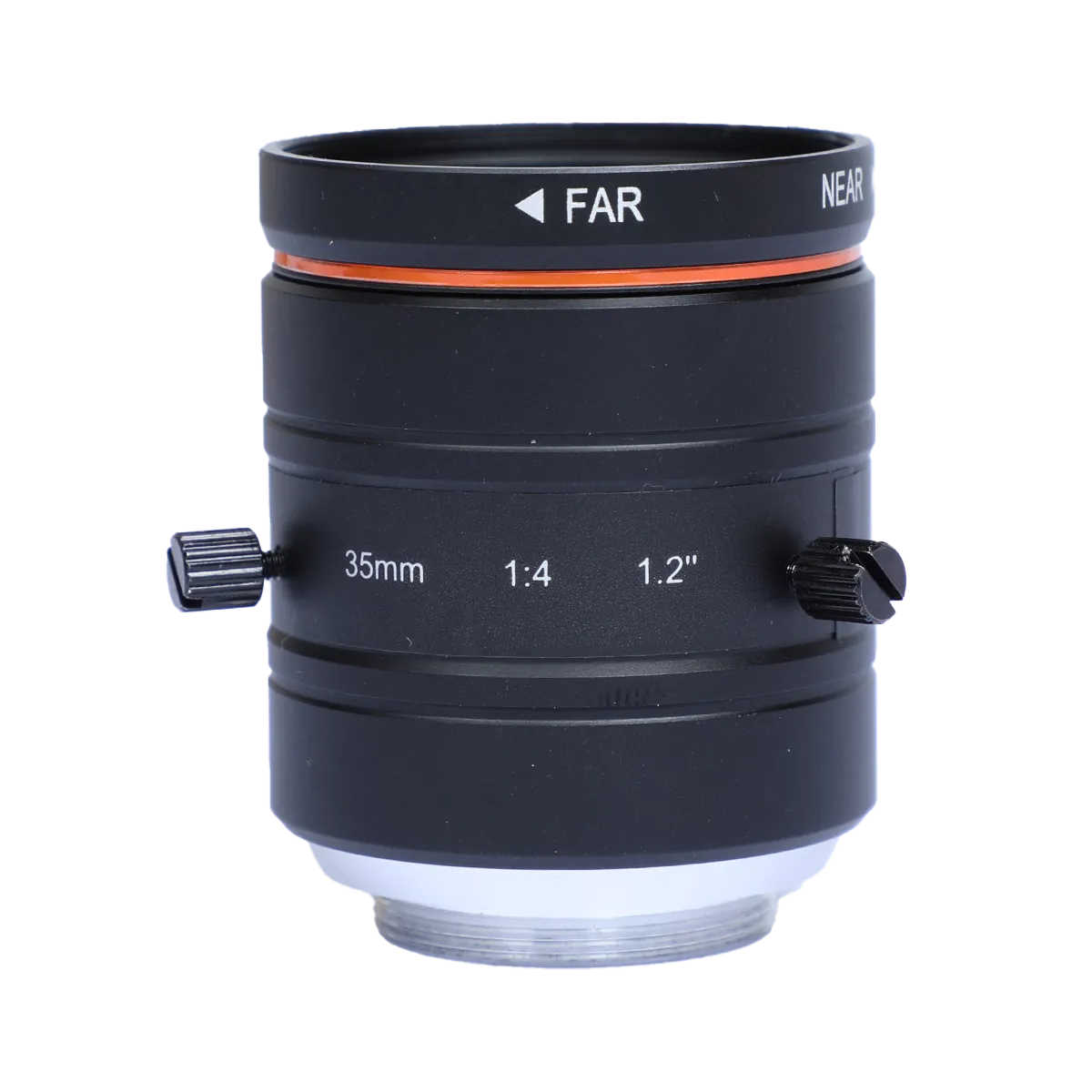

C-Mount Lens, 35mm, Fixed Iris F4, 1.2″, 25MP
Ultra high resolution, high consistency in image center and edge clarity
- Ultra-high resolution with consistent image clarity across centre and edge.
- 1.2″ image circle, F4 fixed iris, structurally stable.
- Ultra-low distortion and high relative illumination.
- Maintains excellent optical properties across different object distances.
- Excellent resistance to vibration, impact, and both high and low temperatures.
Camera Solutions
C-Mount Lens, 35mm, Fixed Iris F4, 1.2″, 25MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-KF3540-25MP. Key data: focal length 35 mm, f number F4.0, mount C-mount, image size Ø19.3 mm (1.2''). Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
1.2″ image circle, F4 fixed iris, structurally stable. Ultra-low distortion and high relative illumination. Maintains excellent optical properties across different object distances. Excellent resistance to vibration, impact, and both high and low temperatures.
Product Highlights
Ultra-high resolution with consistent image clarity across centre and edge. — 1.2″ image circle, F4 fixed iris, structurally stable. — Ultra-low distortion and high relative illumination. — Maintains excellent optical properties across different object distances. — Excellent resistance to vibration, impact, and both high and low temperatures.
Specifications
| Product Model | MVL-KF3540-25MP |
|---|---|
| Type | C-Mount Lens, 35mm, Fixed Iris F4, 1.2″, 25MP |
| Focal Length | 35 mm |
| F Number | F4.0 |
| Image Size | Ø19.3 mm (1.2'') |
| Distortion | –0.03% |
| Minimum Object Distance | 0.12 m |
| Field Of View | D (19.3 mm): 29.3° H (14.6 mm): 22.4° V (12.63 mm): 19.5° |
| Iris Control | Fixed |
| Focus Control | Manual |
| Filter Thread | M35.5 × P0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø38mm × 45.06 mm to 58.05 mm (Ø1.5" × 1.77" to 2.29") |
| Weight | 135.5 g (0.299 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
