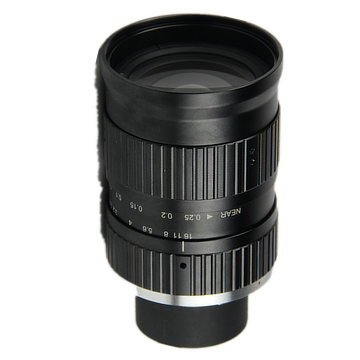

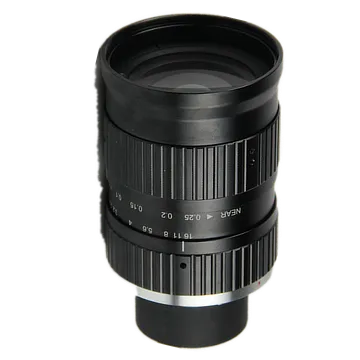

F-Mount Lens, 35mm, F2.8, Full Frame φ43.2mm, 29MP
Provides ultra-high consistency of image clarity.
- Ultra-high image-clarity consistency.
- Ultra-low distortion and high peripheral brightness ratio.
- Polarising filter included.
- Optical design optimised for different magnifications.
Camera Solutions
F-Mount Lens, 35mm, F2.8, Full Frame φ43.2mm, 29MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-LF3528M-F. Key data: focal length 35 mm, f number F2.8 to F16, mount F-mount, image size Φ43.2 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Ultra-low distortion and high peripheral brightness ratio. Polarising filter included. Optical design optimised for different magnifications.
Product Highlights
Ultra-high image-clarity consistency. — Ultra-low distortion and high peripheral brightness ratio. — Polarising filter included. — Optical design optimised for different magnifications.
Specifications
| Product Model | MVL-LF3528M-F |
|---|---|
| Type | F-Mount Lens, 35mm, F2.8, Full Frame φ43.2mm, 29MP |
| Focal Length | 35 mm |
| F Number | F2.8 to F16 |
| Image Size | Φ43.2 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M58 × 0.75 |
| Mount | F-mount |
| Flange Back Length | 46.5 mm |
| Dimension | Φ61 mm × 81.5 mm (Φ2.4" × 3.2") |
| Weight | 536 g (1.2 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.40% |
| Magnification Range | 0.25 x to 0.05 x |
| Working Distance Range | 129 mm to 728 mm |
