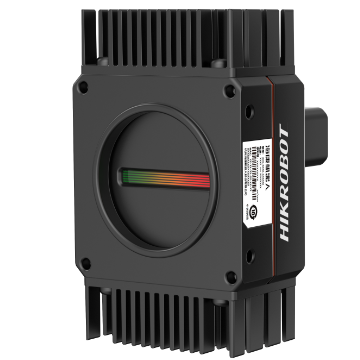

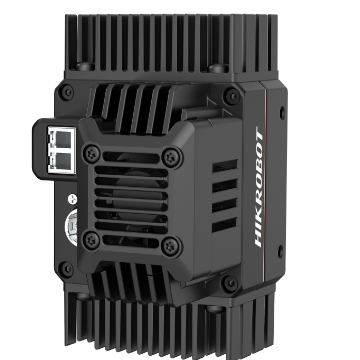

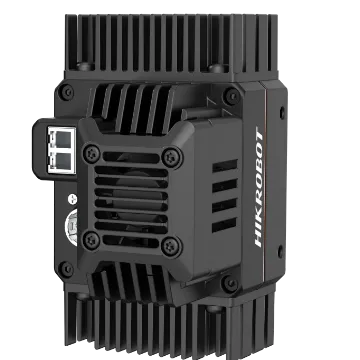

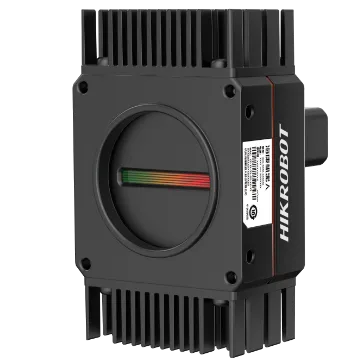

Line Scan Camera, 4k 7μm, color, XoF

Name: Line Scan Camera, 4k 7μm, color, XoF
Brand: HIKROBOT
SKU: MV-CL042-91FC

Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc.

Send inquiry

Download datasheet (PDF)

Highlights

ISP functions including gamma correction and flat-field correction deliver high-quality images.
Single XoF fibre port with 10 Gbps bandwidth.
Multiple exposure and acquisition methods with a maximum line rate of 100 kHz.
Bi-directional configurable I/O hardware design.
Compact design for flexible installation.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CL042-91FC Category: Area & Line Scan Cameras

Line Scan Camera, 4k 7μm, color, XoF is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CL042-91FC. Key data: resolution 4096 × 2, sensor type CMOS, data interface LC fiber connector. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Single XoF fibre port with 10 Gbps bandwidth. Multiple exposure and acquisition methods with a maximum line rate of 100 kHz. Bi-directional configurable I/O hardware design. Compact design for flexible installation.

Line Scan Camera, 4k 7μm, color, XoF (MV-CL042-91FC) at a glance: 4096 × 2 resolution, 7 μm × 7 μm pixel size, LC fiber connector interface, M42*1.0, flange back length 12 mm lens mount, 101.2 mm × 62 mm × 70.7 mm (4.0" × 2.4" × 2.8") housing and weighs 300 g (0.7 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

ISP functions including gamma correction and flat-field correction deliver high-quality images. — Single XoF fibre port with 10 Gbps bandwidth. — Multiple exposure and acquisition methods with a maximum line rate of 100 kHz. — Bi-directional configurable I/O hardware design. — Compact design for flexible installation.

Specifications

Product Model	MV-CL042-91FC
Type	Line Scan Camera, 4k 7μm, color, XoF
Sensor Type	CMOS
Pixel Size	7 μm × 7 μm
Resolution	4096 × 2
Dynamic Range	65.6 dB
SNR	40 dB
Gain	1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
Exposure Time	3 μs to 10 ms
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Bayer RG 8/10/12, Bayer RBGG 8, RGB 8, BGR 8, Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal reverse image output
Data Interface	LC fiber connector
Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
Power Supply	12 VDC to 24 VDC
Lens Mount	M42*1.0, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension	101.2 mm × 62 mm × 70.7 mm (4.0" × 2.4" × 2.8")
Weight	Approx. 300 g (0.7 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	5% to 90% RH, non-condensing
Client Software	MVS
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11
Compatibility	XoFLink, GenlCam
Certification	CE, RoHS, KC
Mono	Color
Power Consumption 2	Typ. 9 W @ 12 VDC
Max Line Rate	Standard mode: 98 kHz @ RGB 8/BGR 8, 100 kHz @ Mono 8/10/12/Bayer RG 8/10/12/Bayer RBGG 8 Line rate after ROI: 100 kHz
Trigger Mode	External trigger, internal trigger
External Trigger Mode	Line trigger, frame trigger, line + frame trigger
Image Mode	Supports 1-Line
