Line Scan Camera, 4k Camera Link, Color
Supports multiple exposure and image acquisition methods with max. line rate of 100 kHz.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
ISP technologies with manual gamma correction, PRNU correction, LUT, and black-level adjustment. Bi-directional I/O wiring for flexible input/output configuration. Compact design for flexible installation. Works with the Camera Link protocol and the GenICam standard.
Product Highlights
Multiple exposure and acquisition methods with a maximum line rate of 100 kHz. — ISP technologies with manual gamma correction, PRNU correction, LUT, and black-level adjustment. — Bi-directional I/O wiring for flexible input/output configuration. — Compact design for flexible installation. — Works with the Camera Link protocol and the GenICam standard.
Specifications
| Product Model | MV-CL042-91CC |
|---|---|
| Type | Line Scan Camera, 4k Camera Link, Color |
| Sensor Type | CMOS |
| Pixel Size | 7 μm |
| Resolution | 4096 × 2 |
| Dynamic Range | 65.6 dB |
| SNR | 40 dB |
| Gain | Supports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 × |
| Exposure Time | 5 μs to 10 ms |
| Exposure Mode | Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure |
| Pixel Format | Mono 8, RGB 8, Bayer RGBG 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |

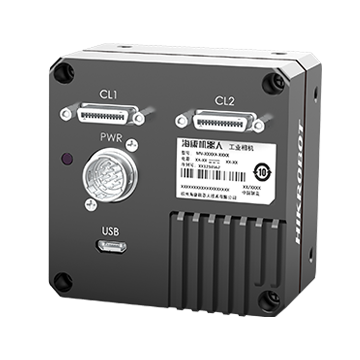

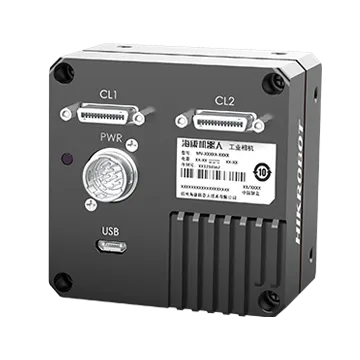

| Data Interface | Camera Link (SDR connector); USB interface for updating firmware |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). |
| Power Supply | 12 VDC to 24 VDC |

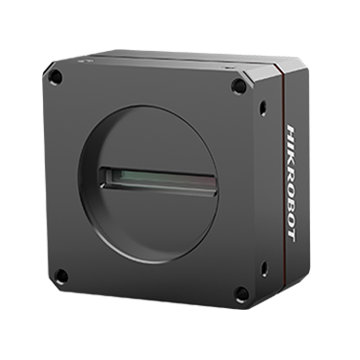

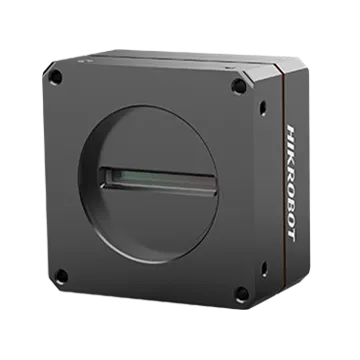

| Lens Mount | M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and lens of other types via lens adapter |
| Dimension | 62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5") |
| Weight | Approx. 238 g (0.5 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature : –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Client Software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.1, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 6.1 W @ 12 VDC |
| Configuration Mode | Mono 8: Base RGB 8: Base, Medium, 80-bit Bayer RGBG 8: Base, Medium, Full |
| Tap Geometry | Mono 8: 1 × RGB 8: 1 ×, 1 × 2, 1 × 10 Bayer RGBG 8: 1 × 2, 1 × 4, 1 × 8 |
| Tap Number | Mono 8: 2 Taps RGB 8: 1/2/10 Taps Bayer RGBG 8: 2/4/8 Taps |
| Pixel Clock | 40 MHz, 60 MHz, 70 MHz, 85 MHz |
| Max Line Rate | 40 kHz @ Mono 8 (Base), 50 kHz @ RGB 8 (80-bit), 100 kHz @ Bayer RGBG 8 (Full) |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger, frame trigger, line + frame trigger |
| Image Mode | Supports 1-line |
