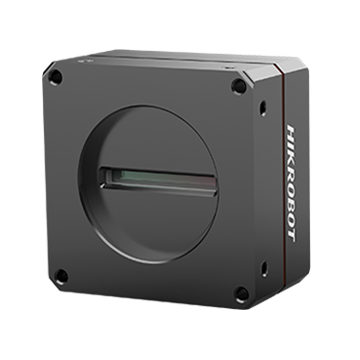

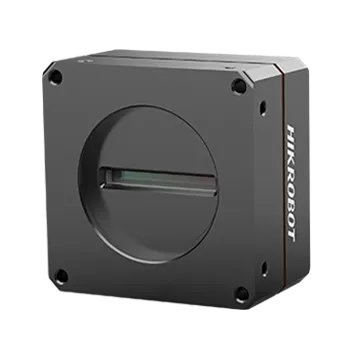

Line Scan Camera, 4k pixels, Camera Link, Gpixel, Mono
Adopts multiple ISP technologies and supports manual adjustment for Gamma correction, flat correction, LUT, black level.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Multiple exposure and acquisition methods with a maximum line rate of 195 kHz. Bi-directional I/O wiring for flexible input/output configuration. Compact design for flexible installation. Works with the Camera Link protocol and the GenICam standard.
Product Highlights
ISP technologies with manual gamma correction, flat-field correction, LUT, and black-level adjustment. — Multiple exposure and acquisition methods with a maximum line rate of 195 kHz. — Bi-directional I/O wiring for flexible input/output configuration. — Compact design for flexible installation. — Works with the Camera Link protocol and the GenICam standard.
Specifications
| Product Model | MV-CL042-91CM-V2 |
|---|---|
| Type | Line Scan Camera, 4k pixels, Camera Link, Gpixel, Mono |
| Sensor Type | CMOS |
| Pixel Size | 7 μm |
| Resolution | 4096 × 2 |
| Dynamic Range | 65.6 dB |
| SNR | 40 dB |
| Gain | Supports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 × |
| Exposure Time | 3 μs to 10 ms |
| Exposure Mode | Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure |
| Pixel Format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |

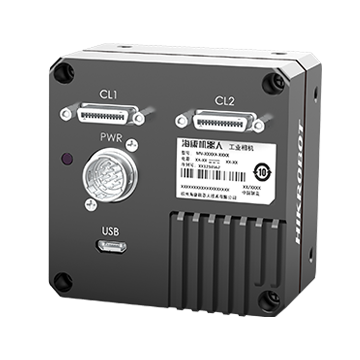

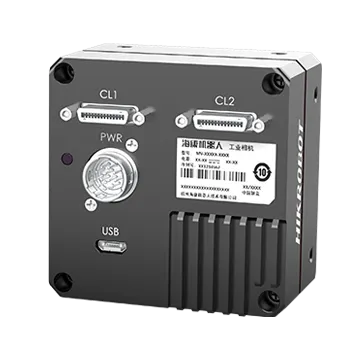

| Data Interface | Camera Link (SDR connector); USB interface for updating firmware |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). |
| Power Supply | 12 VDC to 24 VDC |
| Lens Mount | M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and lens of other types via lens adapter |
| Dimension | 62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5") |
| Weight | Approx. 238 g (0.5 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 45 °C (–4 °F to 113 °F) Storage temperature : –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Client Software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.1, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 8 W @ 12 VDC |
| Configuration Mode | Base, Medium, Full, 80-bit |
| Tap Geometry | 1 × 2, 1 × 4, 1 × 8, 1 × 10 |
| Tap Number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel Clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz |
| Max Line Rate | 40.5 kHz (Base), 81 kHz (Medium), 162 kHz (Full), 195 kHz (80-bit) |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger, frame trigger, line + frame trigger |
| Image Mode | Supports 1-line and 2-TDI |
