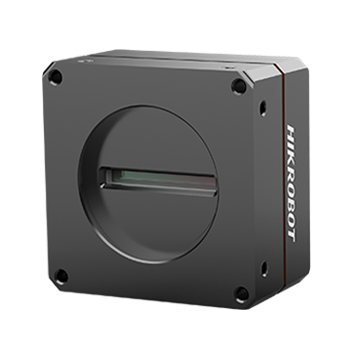

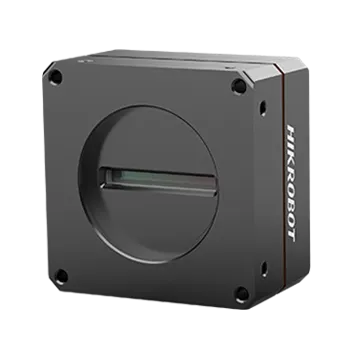

Line Scan Camera, 4k Camera Link, Mono
Supports multiple exposure and image acquisition methods with max. line rate of 100 kHz.
- Multiple exposure and acquisition methods with a maximum line rate of 100 kHz.
- ISP technologies with manual gamma correction, PRNU correction, LUT, and black-level adjustment.
- Bi-directional I/O wiring for flexible input/output configuration.
- Compact design for flexible installation.
- Works with the Camera Link protocol and the GenICam standard.
Camera Solutions
Line Scan Camera, 4k Camera Link, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CL042-91CM. Key data: resolution 4096 × 2, sensor type CMOS. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Line Scan Camera, 4k Camera Link, Color (MV-CL042-91CC)
- Line Scan Camera, 4k pixels, Camera Link, Gpixel, Mono (MV-CL042-91CM-V2)
- Line Scan Camera, 4k 7μm, color, XoF (MV-CL042-91FC)
- Line Scan Camera, 4k 7μm, mono, XoF (MV-CL042-91FM)
- Line Scan Camera, 4K GigE, Color (MV-CL042-91GC)
- Line Scan Camera, 4K GigE, Mono (MV-CL042-91GM)
Description
ISP technologies with manual gamma correction, PRNU correction, LUT, and black-level adjustment. Bi-directional I/O wiring for flexible input/output configuration. Compact design for flexible installation. Works with the Camera Link protocol and the GenICam standard.
Product Highlights
Multiple exposure and acquisition methods with a maximum line rate of 100 kHz. — ISP technologies with manual gamma correction, PRNU correction, LUT, and black-level adjustment. — Bi-directional I/O wiring for flexible input/output configuration. — Compact design for flexible installation. — Works with the Camera Link protocol and the GenICam standard.
Specifications
| Product Model | MV-CL042-91CM |
|---|---|
| Type | Line Scan Camera, 4k Camera Link, Mono |
| Sensor Type | CMOS |
| Pixel Size | 7 μm |
| Resolution | 4096 × 2 |
| Dynamic Range | 65.6 dB |
| SNR | 40 dB |
| Gain | Supports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 × |
| Exposure Time | 5 μs to 10 ms |
| Exposure Mode | Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure |
| Pixel Format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |

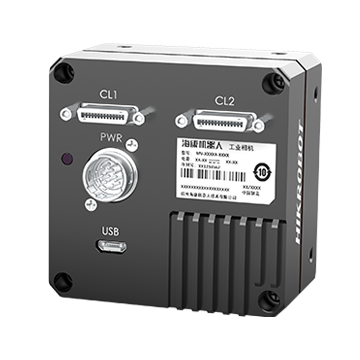

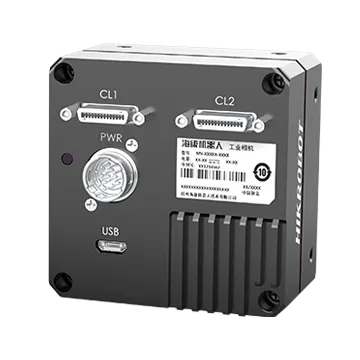

| Data Interface | Camera Link (SDR connector); USB interface for updating firmware |
| Digital I/O | 12-pin Hirose connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). |
| Power Supply | 12 VDC to 24 VDC |
| Lens Mount | M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and lens of other types via lens adapter |
| Dimension | 62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5") |
| Weight | Approx. 238 g (0.5 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Client Software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.1, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 5.5 W @ 12 VDC |
| Configuration Mode | Base, Medium, Full |
| Tap Geometry | 1X2, 1X4, 1X8 |
| Tap Number | 2 Taps, 4 Taps, 8 Taps |
| Pixel Clock | 40 MHz, 60 MHz, 70 MHz, 85 MHz |
| Max Line Rate | 40.5 kHz (Base), 81 kHz (Medium), 100 kHz (Full) |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger, frame trigger, line + frame trigger |
| Image Mode | Supports 1-line and 2-TDI |
