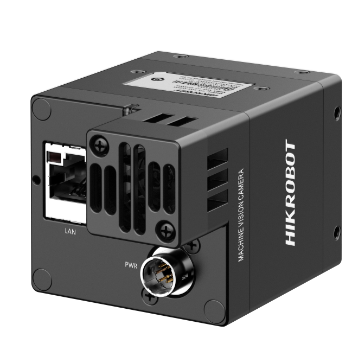

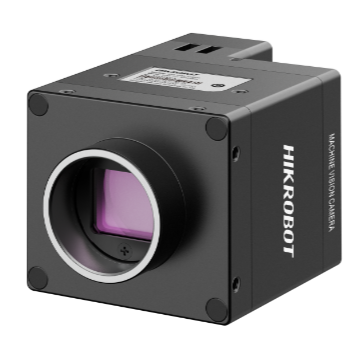

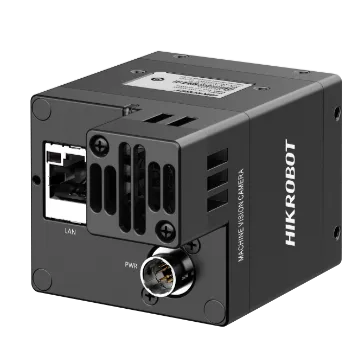

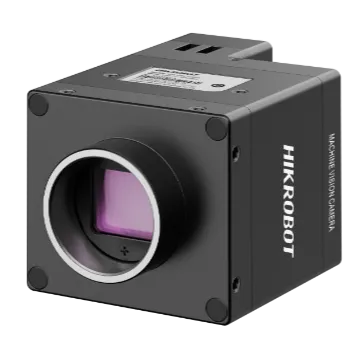

Area Scan Camera, 5MP, GMAX3405, 10GigE, Mono, C-mount, with fan
Resolution of 2448 × 2048, and pixel size of 3.4 μm × 3.4 μm.
- Resolution of 2448 × 2048 with 3.4 µm × 3.4 µm pixels.
- C-Mount lens compatible.
- Connects via 10 GigE, with cable runs up to 100 m and no repeater required.
- Mounting holes on the panels for flexible mounting.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Camera Solutions
Area Scan Camera, 5MP, GMAX3405, 10GigE, Mono, C-mount, with fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH050-90TM-C-NF. Key data: resolution 2448 × 2048, sensor type CMOS, global shutter, max frame rate 163.4 fps @ 2448 × 2048 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 5MP, 2.5GigE, Mono (MV-CH050-60NM)
- Area Scan Camera, 5MP, USB3, Color (MV-CH050-60UC)
- Area Scan Camera, 5MP, USB3, Mono (MV-CH050-60UM)
- Area Scan Camera, 5MP, GMAX3405, 10GigE, Color, C-mount, with fan (MV-CH050-90TC-C-NF)
- Area Scan Camera, 5MP, GMAX2505, CXP-6, Color, C-mount, without fan (MV-CH050-90XC-C-NN)
- Area Scan Camera, 5MP, GMAX2505, CXP-6, Mono, C-mount, without fan (MV-CH050-90XM-C-NN)
- Area Scan Camera, 5MP, GMAX3405, 1-link CXP-12, C-mount, without fan, Color (MV-CH050-90Y1C-NN)
- Area Scan Camera, 5MP, GMAX3405, 1-link CXP-12, C-mount, without fan, Mono (MV-CH050-90Y1M-NN)
Description
C-Mount lens compatible. Connects via 10 GigE, with cable runs up to 100 m and no repeater required. Mounting holes on the panels for flexible mounting. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Product Highlights
Resolution of 2448 × 2048 with 3.4 µm × 3.4 µm pixels. — C-Mount lens compatible. — Connects via 10 GigE, with cable runs up to 100 m and no repeater required. — Mounting holes on the panels for flexible mounting. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Specifications
| Product Model | MV-CH050-90TM-C-NF |
|---|---|
| Type | Area Scan Camera, 5MP, GMAX3405, 10GigE, Mono, C-mount, with fan |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX3405 |
| Pixel Size | 3.4 μm × 3.4 μm |
| Sensor Size | 2/3" |
| Resolution | 2448 × 2048 |
| Max Frame Rate | 163.4 fps @ 2448 × 2048 Mono 8 |
| Dynamic Range | 64.6 dB |
| SNR | 39.0 dB |
| Gain | 0 dB to 6.1 dB |
| Exposure Time | 2 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Trigger Width |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | C-mount |
| Dimension | 50 mm × 45 mm × 68.6 mm (2.0" × 1.8" × 2.7") |
| Weight | Approx. 212 g (0.5 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 8.0 W @ 12 VDC |
