Area Scan Camera, 5MP, GMAX2505, CXP-6, Color, C-mount, without fan

Name: Area Scan Camera, 5MP, GMAX2505, CXP-6, Color, C-mount, without fan
Brand: HIKROBOT
SKU: MV-CH050-90XC-C-NN

Resolution of 2592 × 2160, pixel size of 2.5 µm × 2.5 µm.

Send inquiry

Download datasheet (PDF)

Highlights

Resolution of 2592 × 2160 with 2.5 µm × 2.5 µm pixels.
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality.
Supports LSC correction, Super Palette, CCM, and Super Bayer.
Transmits data over a CXP-6 interface.
Offers Off, Once, and Continuous exposure modes.
Works with the CoaXPress protocol and the GenICam standard.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH050-90XC-C-NN Category: Area & Line Scan Cameras

Area Scan Camera, 5MP, GMAX2505, CXP-6, Color, C-mount, without fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH050-90XC-C-NN. Key data: resolution 2592 × 2160, sensor type CMOS, global shutter, max frame rate 213 fps @ 2592 × 2160 Bayer BG 8, data interface CoaXPress with DIN interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Supports LSC correction, Super Palette, CCM, and Super Bayer. Transmits data over a CXP-6 interface. Offers Off, Once, and Continuous exposure modes. Works with the CoaXPress protocol and the GenICam standard.

Area Scan Camera, 5MP, GMAX2505, CXP-6, Color, C-mount, without fan (MV-CH050-90XC-C-NN) at a glance: 2592 × 2160 resolution, Gpixel GMAX2505 sensor, 1/2" sensor format, 2.5 μm × 2.5 μm pixel size, up to 213 fps, Color output, CoaXPress with DIN interface interface and C-mount, flange back length 17.52 mm lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Resolution of 2592 × 2160 with 2.5 µm × 2.5 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Supports LSC correction, Super Palette, CCM, and Super Bayer. — Transmits data over a CXP-6 interface. — Offers Off, Once, and Continuous exposure modes. — Works with the CoaXPress protocol and the GenICam standard.

Specifications

Product Model	MV-CH050-90XC-C-NN
Type	Area Scan Camera, 5MP, GMAX2505, CXP-6, Color, C-mount, without fan
Sensor Type	CMOS, global shutter
Sensor Model	Gpixel GMAX2505
Pixel Size	2.5 μm × 2.5 μm
Sensor Size	1/2"
Resolution	2592 × 2160
Max Frame Rate	213 fps @ 2592 × 2160 Bayer BG 8
Dynamic Range	63.8 dB
SNR	37 dB
Gain	1.0x, 1.25x, 1.5x, 1.75x, 2.0x
Exposure Time	5 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8, Bayer BG 8/12, YUV 422 Packed
Mono Color	Color
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output

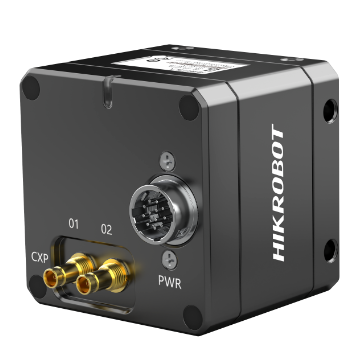

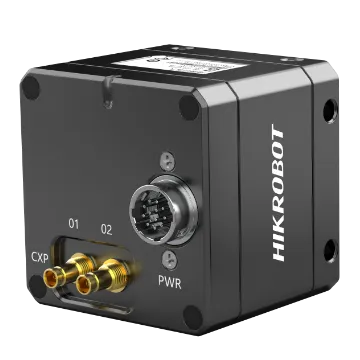

Data Interface	CoaXPress with DIN interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power Supply	9 VDC to 24 VDC, CXP-1 supports PoCXP

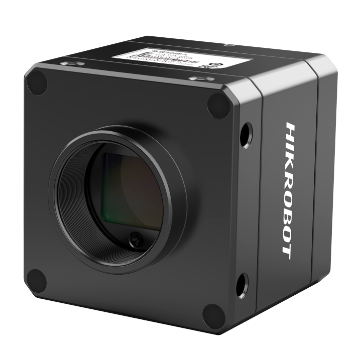

Lens Mount	C-mount, flange back length 17.52 mm
Dimension	50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8")
Weight	Approx. 220 g (0.5 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or frame grabber software meeting with CoaXPress Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 4.8 W @ 12 VDC
