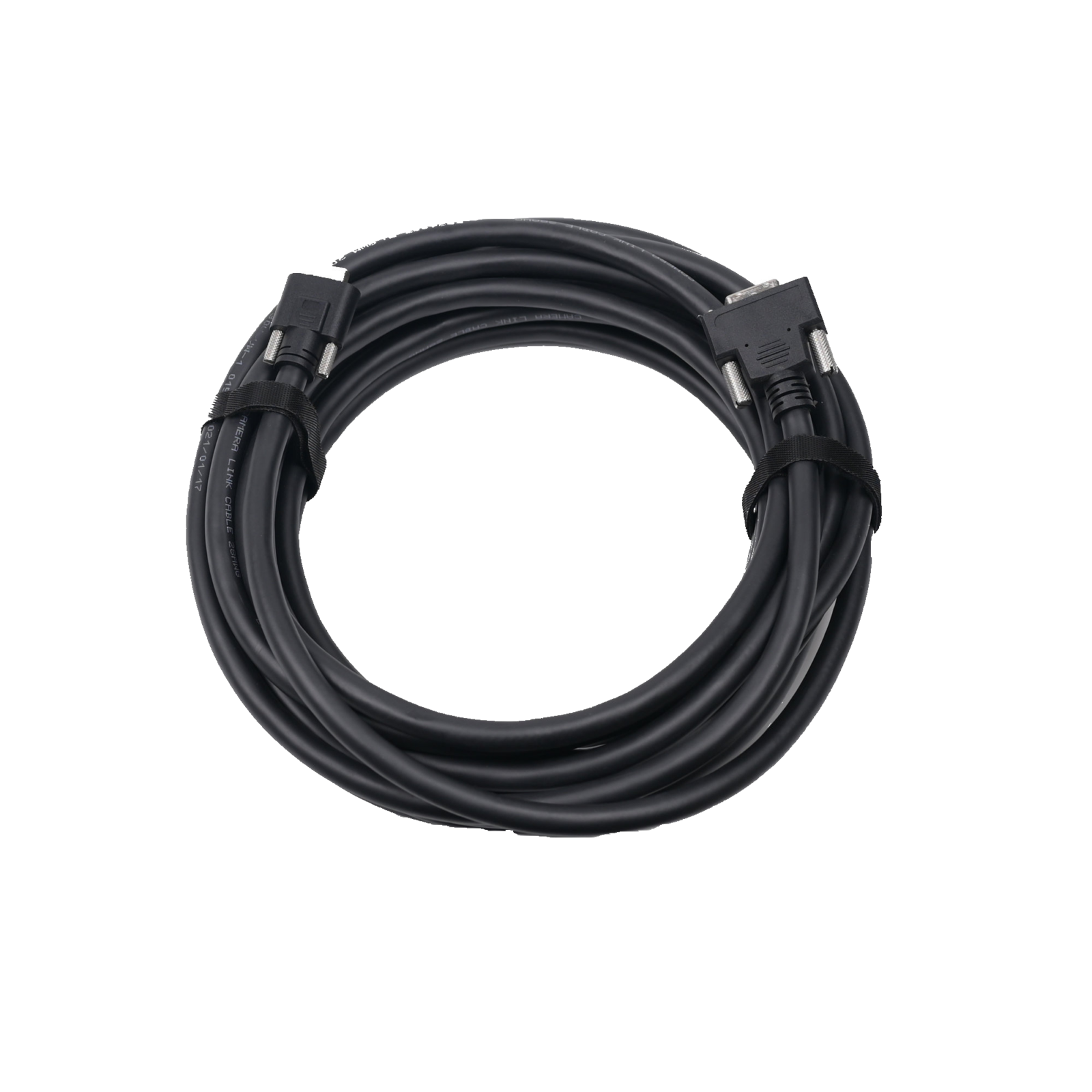

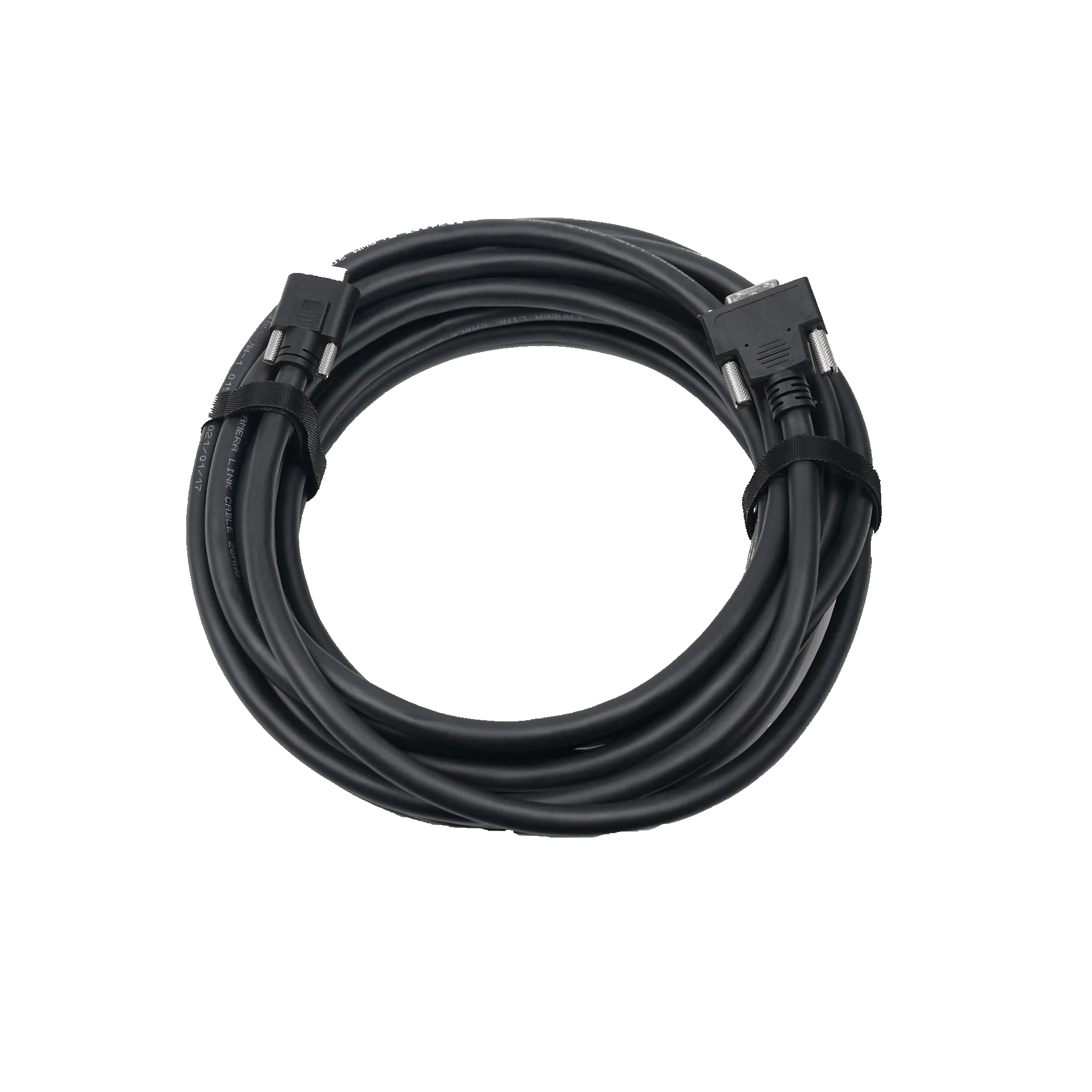

Camera Link cable(SDR-MDR)，high flex，7m
The Camera Link Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
Camera Link Flex Data Cables carry Camera Link data and are available in multiple lengths.
Specifications
| Product Model | MV-ACCL-SDR-MDR-HF-7m |
|---|---|
| Type | Camera Link cable(SDR-MDR)，high flex，7m |
| End A Connector | SDR26 |
| End B Connector | MDR26 |
| Cable Diameter | 9.5 mm |
| Length | 7 m |
| Cable Mechanical | UL20276 |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | 500 cycles |
| Min Bending Radius | 114 mm |
| Applicable Scenario | Drag chain |
| Max Voltage | 30 VDC |
| Working Temperature | -20°C~80°C |
| Certification | UL |
| Packaging | Individual package |
| Max U Type Bending Cycles | 5 million times |
| Connector Model | made in China |
