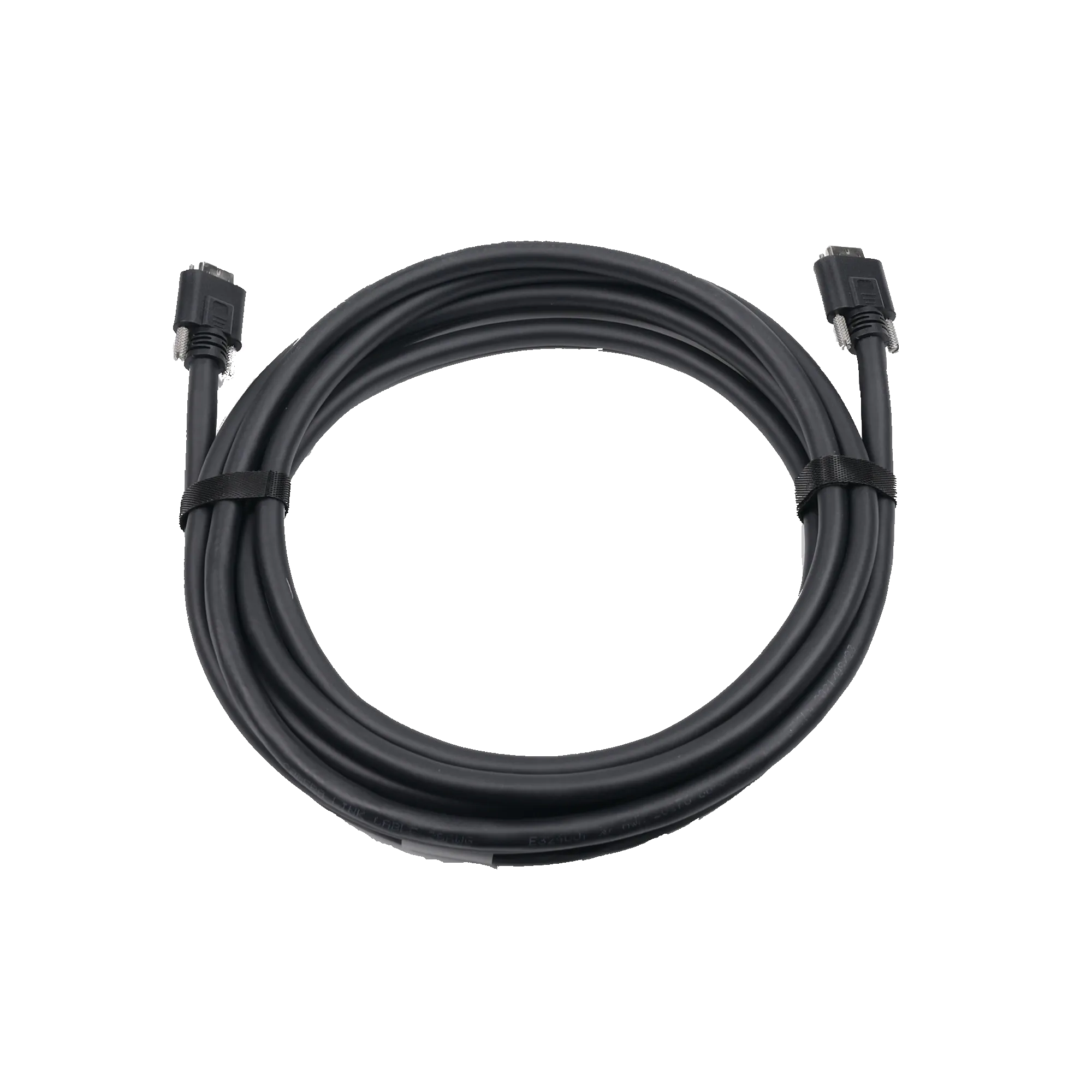

Camera Link cable(SDR-SDR)，standard，7m

Name: Camera Link cable(SDR-SDR), standard, 7m
Brand: HIKROBOT
SKU: MV-ACCL-SDR-SDR-ST-7m

The Camera Link Standard Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.

Send inquiry

Download datasheet (PDF)

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-ACCL-SDR-SDR-ST-7m Category: Vision Components

Camera Link cable(SDR-SDR), standard, 7m is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ACCL-SDR-SDR-ST-7m. Key data: certification RoHS,UL. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Product Highlights

Camera Link Standard Data Cables carry Camera Link data; available in multiple lengths.

Specifications

Product Model	MV-ACCL-SDR-SDR-ST-7m
Type	Camera Link cable(SDR-SDR)，standard，7m
End A Connector	SDR
End B Connector	SDR
Cable Diameter	9.5 mm
Length	7 m
Cable Mechanical	(28AWG1P+AL)11C+28AWG*2C+MY+AL+B, UL20276
Jacket	PVC
Cable Color	Black
Connector Durability	≥500 cycles
Min Bending Radius	114 mm
Applicable Scenario	Static scenes
Max Voltage	30 VDC
Working Temperature	-20°C~80°C
Certification	RoHS,UL
Packaging	Individual package
