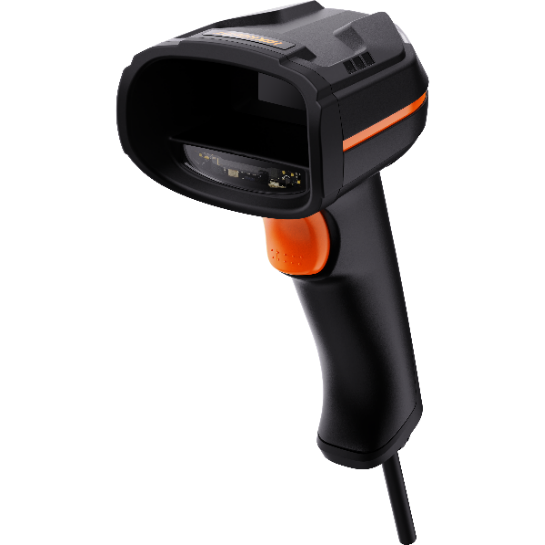

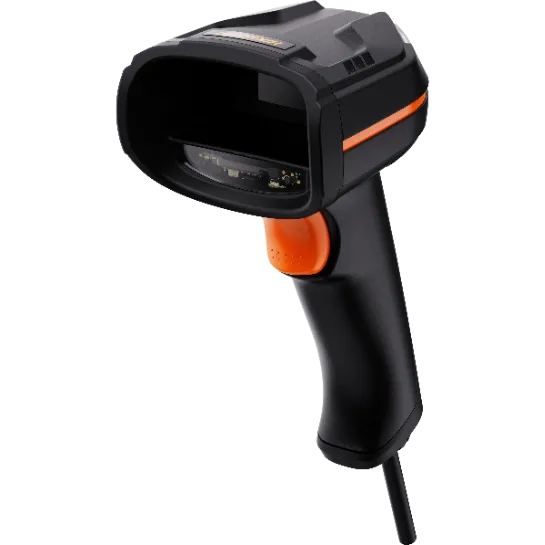

Industrial Wired Handheld Code Reader（IP LAN）
Built-in code reading algorithm for decoding different types of 1D and 2D codes.
Camera Solutions
Beschreibung
Reads reliably even with spots, defects, or low contrast. Supports both continuous and batch code reading for higher throughput. Speaks multiple protocols: TCP, FTP, UDP, USB, Serial, and SmartSDK. Industrial-protocol models support PROFINET, EtherNet/IP, Modbus, MC/SLMP, and FINS. Components are easy to replace.
Product Highlights
A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Supports both continuous and batch code reading for higher throughput. — Speaks multiple protocols: TCP, FTP, UDP, USB, Serial, and SmartSDK. — Industrial-protocol models support PROFINET, EtherNet/IP, Modbus, MC/SLMP, and FINS. — Components are easy to replace.
Specifications
| Product Model | MV-IDH3000/13SR/05RN/LE |
|---|---|
| Type | Industrial Wired Handheld Code Reader（IP LAN） |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin Stacked code: PDF417 |
| Min Accuracy | 4 mil |
| Sensor Type | CMOS |
| Resolution | 1280 × 1024 |
| Depth Of Field | Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm |
| Field Of View | Horizontal 40°, vertical 34° |
| Detection Angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol Contrast | 20% |
| Communication Protocol | SmartSDK, TCP Client, FTP, TCP Server, Profinet, Ethernet/IP, Modbus, UDP, Serial, MC/SLMP, FINS1 |
| Data Interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Power Supply | 12 VDC to 24 VDC |
| Current Consumption | 0.5 A (max.), 0.28 A (typical) |
| Focal Length | 4.7 mm |
| Ambient Illumination | 0 lux to 100000 lux |
| Light Source | Red LED |
| Aiming System | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 74.4 mm × 86.6 mm × 190.2 mm (2.9" × 3.4" × 7.5") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress Protection | IP52 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Laser Safety Class | Laser 2 |
| Wavelength | 650 nm |
| Pulse Width | 8 ms |
| Maximum Power | 1 mW |
| Client Software | IDMVS |
| Certification | CE, KC |
| Drop Height | Dropping: 1.8 m, 50 times Rolling: 0.5 m, 1200 times |
| Static Electricity Resistant | ± 16 kV (air discharge), ± 8 kV (contact discharge) |
