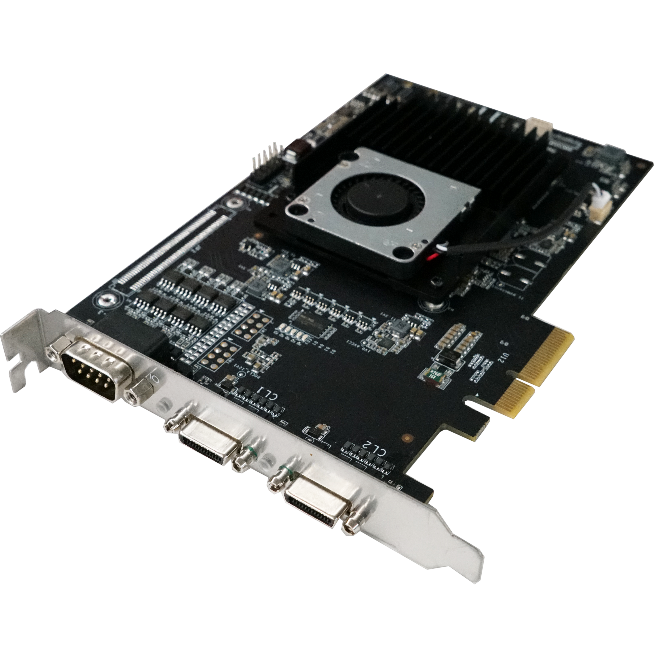

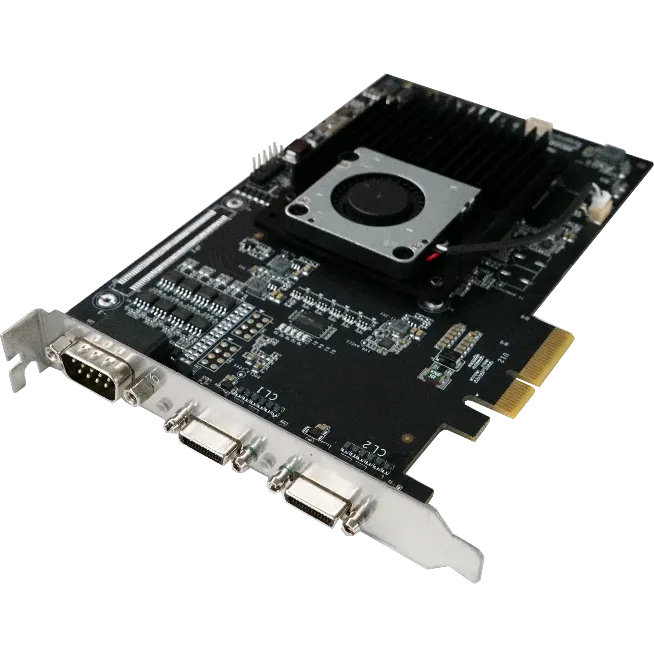

MV-GC1102IOL Frame Grabber
Supports Camera Link protocol with two SDR connectors accessing up to 6.8 Gbps data transfer speed theoretically.
- Camera Link with two SDR connectors; theoretical throughput up to 6.8 Gbps.
- PoCL supported with up to 4 W per channel.
- Multiple I/O connectors handle input and output.
- SDK included; supports the GenTL protocol for custom development.
- Complies with the GenICam standard.
Camera Solutions
MV-GC1102IOL Frame Grabber is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GC1102IOL. Key data: certification CE, RoHS, KC. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- AC Power Cable, E2p (EUR) to C13 plug, 1.5 m (AC power cables_EUR_E2p_C13_1.5)
- AC Power Cable, E3p (GBP) to C13 plug, 1.5 m (AC power cables_GBP_E3p_C13_1.5m)
- AC Power Cable, E3p (IND) to C13 plug, 1.5 m (AC power cables_IND_E3p_C13_1.5m)
- AC Power Cable, E3p (ISR) to C13 plug, 1.5 m (AC power cables_ISR_E3p_C13_1.5m)
- AC Power Cable, S2p (JPN) to C13 plug, 1.5 m (AC power cables_JPN_S2p_C13_1.5m)
- AC Power Cable, S2p (KOR) to C13 plug, 1.5 m (AC power cables_KOR_S2p_C13_1.5m)
- AC Power Cable, S3p (ARG) to C13 plug, 1.5 m (AC power cables_ARG_S3p_C13_1.5m)
- AC Power Cable, S3p (BRA) to C13 plug, 1.5 m (AC power cables_BRA_S3p_C13_1.5m)
Description
PoCL supported with up to 4 W per channel. Multiple I/O connectors handle input and output. SDK included; supports the GenTL protocol for custom development. Complies with the GenICam standard.
Product Highlights
Camera Link with two SDR connectors; theoretical throughput up to 6.8 Gbps. — PoCL supported with up to 4 W per channel. — Multiple I/O connectors handle input and output. — SDK included; supports the GenTL protocol for custom development. — Complies with the GenICam standard.
Specifications
| Product Model | MV-GC1102IOL |
|---|---|
| Type | MV-GC1102IOL Frame Grabber |
| Certification | CE, RoHS, KC |
| Interface | SDR × 2 |
| On Board Memory | 1 GB DDR3-RAM |
| Interconnect | PCI-E gen2 × 4 |
| Delivery Bandwidth | 1720 MB/s (max. transmission bandwidth), 1600 MB/s (sustained transmission bandwidth) |
| Indicator | 1 |
| Standard | Camera Link 2.1 |
| Power Output | PoCL, each channel provides 4 W@ 12 VDC at most |
| Camera Type Supported | Camera Link industrial camera |
| Camera Quantity Supported | 2 at most |
| Camera Connection Speed | 6.8 Gbps |
| Stream | 2 |
| Stream Indicator | 2 |
| Pixel Format | Mono 8/10/12/16, Bayer 8/10/12/16, RGB 8, BGR 8 |
| I/O Type | Configurable input/output × 8, compatible with single-ended/differential Line 2/3 supports 3.3 VDC to 26 VDC input and 3.3 VDC to 26 VDC output Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output |
| Connector | DB9 male connector, 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| Power Consumption | Typ. 9 W (without PoCL) |
| Dimension | 181 mm ×126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: -20 °C to 70 °C (-4 °F to 158 °F) |
| Humidity | 10% to 95% RH, non-condensing |
| Client Software | MVS |
| Operating System | 32/64-bit Windows 7/10 |
| Configuration Mode | Base, Medium, Full, 80-bit, Lite |
| Pixel Clock | 20 MHz to 85 MHz |
