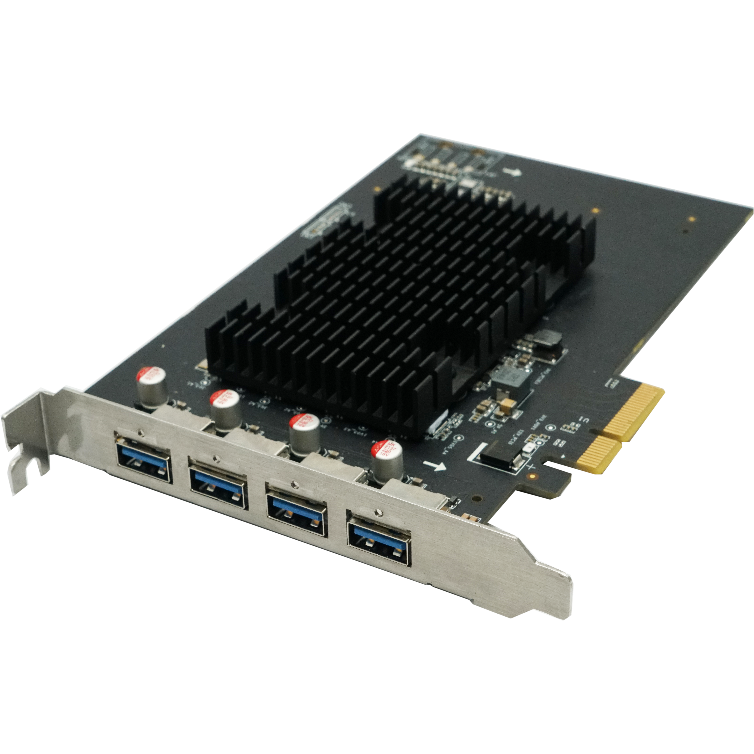

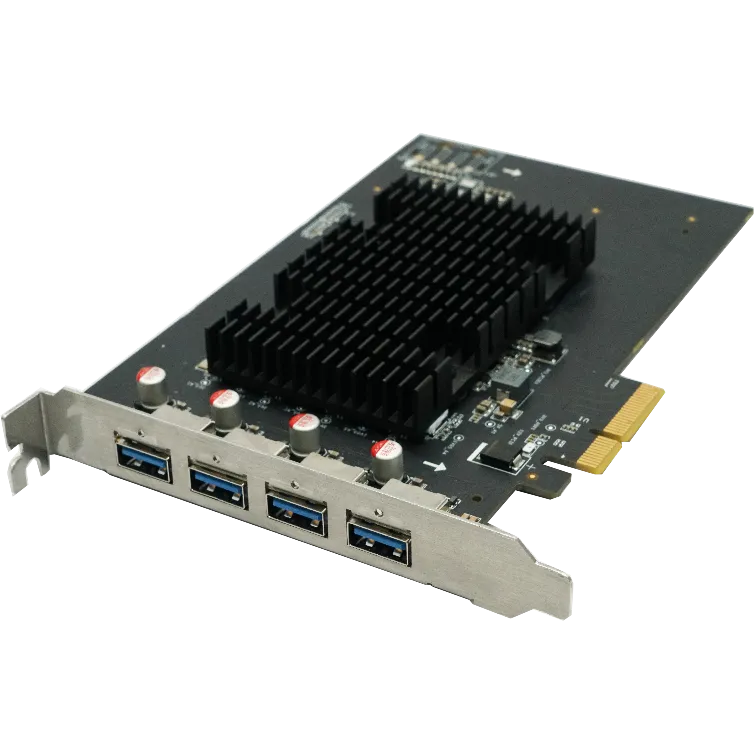

MV-GU2100 Series Quad USB3.0 Adaptor
Adopts USB3.0 type-A interface.
Highlights
- USB 3.0 Type-A interface.
- USB 3.0 theoretical maximum speed of 5 Gbps.
- Super-speed mode; backward compatible with USB 3.0, USB 2.0, and USB 1.1.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
MV-GU2100 Series Quad USB3.0 Adaptor is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GU2104. Key data: certification CE, RoHS. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- AC Power Cable, E2p (EUR) to C13 plug, 1.5 m (AC power cables_EUR_E2p_C13_1.5)
- AC Power Cable, E3p (GBP) to C13 plug, 1.5 m (AC power cables_GBP_E3p_C13_1.5m)
- AC Power Cable, E3p (IND) to C13 plug, 1.5 m (AC power cables_IND_E3p_C13_1.5m)
- AC Power Cable, E3p (ISR) to C13 plug, 1.5 m (AC power cables_ISR_E3p_C13_1.5m)
- AC Power Cable, S2p (JPN) to C13 plug, 1.5 m (AC power cables_JPN_S2p_C13_1.5m)
- AC Power Cable, S2p (KOR) to C13 plug, 1.5 m (AC power cables_KOR_S2p_C13_1.5m)
- AC Power Cable, S3p (ARG) to C13 plug, 1.5 m (AC power cables_ARG_S3p_C13_1.5m)
- AC Power Cable, S3p (BRA) to C13 plug, 1.5 m (AC power cables_BRA_S3p_C13_1.5m)
Description
USB 3.0 theoretical maximum speed of 5 Gbps. Super-speed mode; backward compatible with USB 3.0, USB 2.0, and USB 1.1.
Product Highlights
USB 3.0 Type-A interface. — USB 3.0 theoretical maximum speed of 5 Gbps. — Super-speed mode; backward compatible with USB 3.0, USB 2.0, and USB 1.1.
Specifications
| Product Model | MV-GU2104 |
|---|---|
| Type | MV-GU2100 Series Quad USB3.0 Adaptor |
| Certification | CE, RoHS |
| Interface | USB3.0 type-A, female |
| Interconnect | PCI-E gen2 × 4 |
| Delivery Bandwidth | 1720 MB/s (max. transmission bandwidth) 1600 MB/s (sustained transmission bandwidth) |
| Standard | USB 3.0 |
| Power Output | Each channel provides 4.5 W @ 5 VDC at most |
| Camera Type Supported | USB industrial camera |
| Camera Quantity Supported | 4 at most |
| Camera Connection Speed | Max. 5 Gbps (the actual speed is 2.9 Gbps) |
| Stream | 4 |
| Pixel Format | Mono 8/10/10Packed/12/12Packed Bayer 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Power Consumption | Typ. 6 W (without USB power supply) Typ. 24 W (with USB power supply) |
| Dimension | 181.1 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Operating System | Windows 7/10/11, Linux |
| Weight | 160 g (0.4 lb.) |
