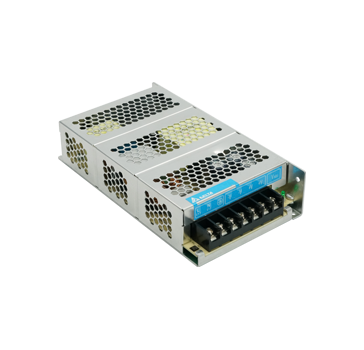

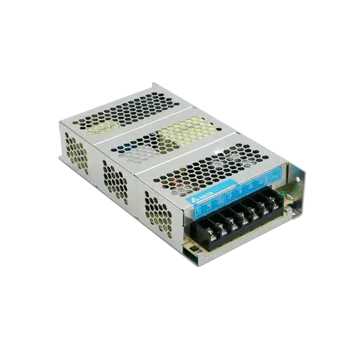

Power Supply_48V75W
The industrial power supply adopts terminal blocks as connectors, and can be used to power the device. Multiple specifications are available.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
Industrial power supply with terminal-block connectors; available in multiple specifications.
Specifications
| Product Model | LRS-75-48 |
|---|---|
| Type | Power Supply_48V75W |
| End A Connector | Terminal block (220 VAC/DC Input) |
| End B Connector | Terminal block |
| Applicable Scenario | Static |
| Working Temperature | –30 °C to 70 °C (–22 °F to 158 °F) (For temperatures above 50 °C, the output load decreases by 2% for every degree increase in temperature.) |
| Certification | CE,UL,CCC,EMC,EAC,TUV,UK |
| Packaging | Individual package |
| Input Voltage Range | 85 VAC ~ 264 VAC 120 VDC ~ 373 VDC |
| Input Ac Current | 1.4 A @ 115 VAC 0.85 A @ 230 VAC |
| Output Power | 76.8 W max |
| Output Voltage | 48 V |
| Output Current | 0 A ~ 1.6 A |
| Over Current Protection | > 120% of rated current, hiccup mode |
| Over Voltage Protection | Overvoltage protection range: 55.2 V to 64.8 V Protected mode: Turn off the output voltage, restart and restore. |
| MTBF | 3,334,300 h (Standard: Telcordia SR-332) |
