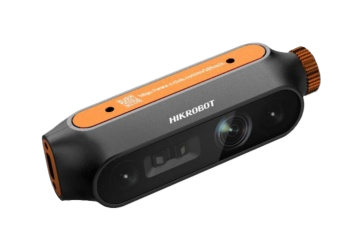

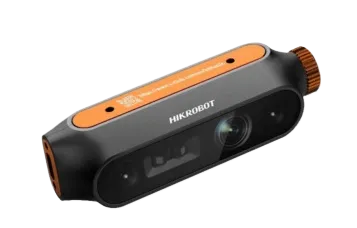

RGB-D Camera
Supports synchronized output of RGB images and depth images.
- Synchronised RGB and depth image output.
- Wide field of view with a large sensing area.
- Multi-platform SDK for custom development and default parameter calibration.
- Narrow-band filters for stronger anti-interference performance.
- Compact design with multiple mounting holes for flexible installation.
Camera Solutions
RGB-D Camera is a 3D sensor from HIKROBOT, supplied in the DACH region by EQ Vision under article number HBC-PY-HE768L. Key data: data interface USB3.0, compatible with USB2.0. Typical use is height, volume and profile measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- 3D Camera DP2050-01P V2.0, ref. distance 47 mm, Z-range 6 mm (MV-DP2050-01P V2.0)
- 3D Camera DP2060-01P V2.0, ref. distance 64 mm, Z-range 26 mm (MV-DP2060-01P V2.0)
- 3D Camera DP2060-01P, ref. distance 64 mm, Z-range 26 mm (MV-DP2060-01P)
- 3D Camera DP2061-01P V2.0, ref. distance 60.2 mm, Z-range 10.4 mm (MV-DP2061-01P V2.0)
- 3D Camera DP2080-01P V2.0, ref. distance 80.2 mm, Z-range 15.2 mm (MV-DP2080-01P V2.0)
- 3D Camera DP2120-01P V2.0, ref. distance 120 mm, Z-range 80 mm (MV-DP2120-01P V2.0)
- 3D Camera DP2120-01P, ref. distance 120 mm, Z-range 80 mm (MV-DP2120-01P)
- 3D Camera DP2140-01P V2.0, ref. distance 141 mm, Z-range 26 mm (MV-DP2140-01P V2.0)
Description
Wide field of view with a large sensing area. Multi-platform SDK for custom development and default parameter calibration. Narrow-band filters for stronger anti-interference performance. Compact design with multiple mounting holes for flexible installation.
Product Highlights
Synchronised RGB and depth image output. — Wide field of view with a large sensing area. — Multi-platform SDK for custom development and default parameter calibration. — Narrow-band filters for stronger anti-interference performance. — Compact design with multiple mounting holes for flexible installation.
Specifications
| Product Model | HBC-PY-HE768L |
|---|---|
| Type | RGB-D Camera |
| Laser Safety Class | Class 1 |
| Data Interface | USB3.0, compatible with USB2.0 |
| Power Consumption | Typ. 4.5 W @5 VDC (USB3.0 provides power supply) |
| Power Supply | 5 VDC (USB3.0 provides power supply) |
| Dimension | 91 mm ×26 mm ×31 mm |
| Weight | Approx. 170 g |
| Temperature | Working temperature: 0 °C to 45 °C<br/>Storage temperature: -30 °C to 80 °C |
| Humidity | 20% to 85% RH, non-condensing |
| Client Software | 3DMVS, Qt_Viewer |
| Operating System | 32/64-bit Windows 7/10 |
| Near Field Of View | 310 mm ×210 mm |
| Far Field Of View | 9200 mm ×5200 mm |
| Clearance Distance Cd | 200 mm |
| Measurement Range Mr | 4800 mm |
| Resolution | 1280 ×720 @30 fps<br/>640 ×360 @30 fps |
| Data Type | RGB image and Depth image |
| Certification | CE, RoHS |
| Depth Image Detection Accuracy | Accuracy: 1.5% @0.2 m to 3 m<br/>Voidage: < 0.2% |
| Max Frame Rate | 30 fps |
