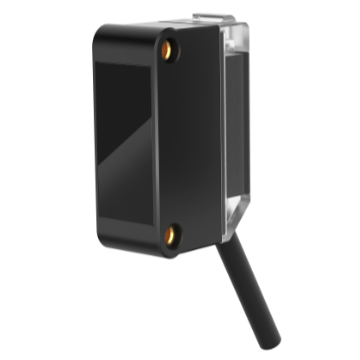

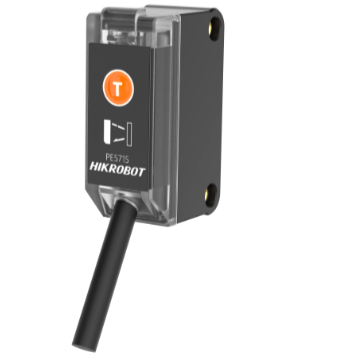

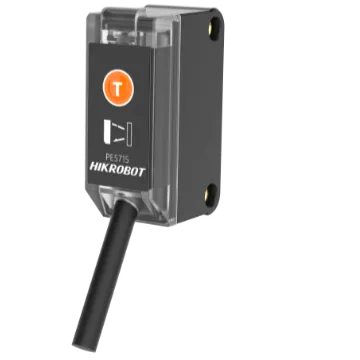

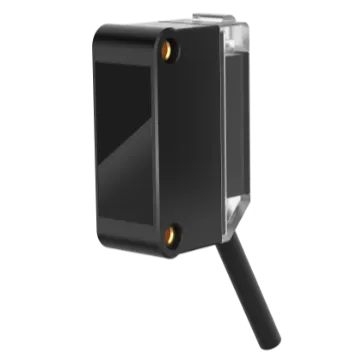

Time-of-flight sensor(5m,Infrared Laser,Class1)
Remains unaffected by material and color based on the time-of-flight principle.
Highlights
- Time-of-flight principle: unaffected by material colour.
- Teach-in button for simple setup.
- Light-on/off control via trigger signal.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Time-of-flight sensor(5m,Infrared Laser,Class1) is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-PE5715. Key data: certification CE, RoHS. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- AC Power Cable, E2p (EUR) to C13 plug, 1.5 m (AC power cables_EUR_E2p_C13_1.5)
- AC Power Cable, E3p (GBP) to C13 plug, 1.5 m (AC power cables_GBP_E3p_C13_1.5m)
- AC Power Cable, E3p (IND) to C13 plug, 1.5 m (AC power cables_IND_E3p_C13_1.5m)
- AC Power Cable, E3p (ISR) to C13 plug, 1.5 m (AC power cables_ISR_E3p_C13_1.5m)
- AC Power Cable, S2p (JPN) to C13 plug, 1.5 m (AC power cables_JPN_S2p_C13_1.5m)
- AC Power Cable, S2p (KOR) to C13 plug, 1.5 m (AC power cables_KOR_S2p_C13_1.5m)
- AC Power Cable, S3p (ARG) to C13 plug, 1.5 m (AC power cables_ARG_S3p_C13_1.5m)
- AC Power Cable, S3p (BRA) to C13 plug, 1.5 m (AC power cables_BRA_S3p_C13_1.5m)
Description
Teach-in button for simple setup. Light-on/off control via trigger signal.
Product Highlights
Time-of-flight principle: unaffected by material colour. — Teach-in button for simple setup. — Light-on/off control via trigger signal.
Specifications
| Product Model | MV-PE5715 |
|---|---|
| Type | Time-of-flight sensor(5m,Infrared Laser,Class1) |
| Certification | CE, RoHS |
| Indicator | Operation indicator: orange Stability indicator: green |
| Dimension | 20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2") |
| Temperature | Working temperature: –25 °C to 55 °C (–13 °F to 131 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 35% RH to 85% RH |
| Weight | Approx. 45 g (0.1 lb.) (including cable) |
| Detecting Distance | 50 mm to 5000 mm |
| Sensing Target | Standard reflector (100 mm × 100 mm) with reflectivity of 90% |
| Output | NPN/PNP switch and light-on/dark-on switch |
| Light Source | Infrared laser 905 nm |
| Response Time | 500 μs/10 ms switch |
| Supply Voltage | 12 VDC to 24 VDC ± 10% |
| Residual Voltage | ≤ 2 VDC |
| Operating Current | ≤ 35 mA @ 12V, ≤ 20 mA @ 24V |
| Max Sink Source Current | ≤ 100 mA |
| Circuit Protection | Reverse polarity protection, overcurrent protection, and overvoltage protection |
| Insulation Resistance | 20 MΩ or more (between the terminal block for power supply and the housing) |
| Withstand Voltage | 1000 VAC, 1 min (between the terminal block for power supply and the housing) |
| Ambient Illumination | Sunlight: < 10000 lux Incandescent lamp: < 3000 lux |
| Ingress Protection | IP67 |
| Material | Housing: polycarbonate Lens: acrylic |
| Connecting Method | Cable lead-out (standard length: 2 m, 78.7") |
| Vibration Resistance | 10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions |
| Shock Resistance | 500 m/s2, 3 times in each of the X, Y, and Z directions |
| Laser Safety Class | Class 1 |
| Method Of Setting Up | Single teach-in button |
