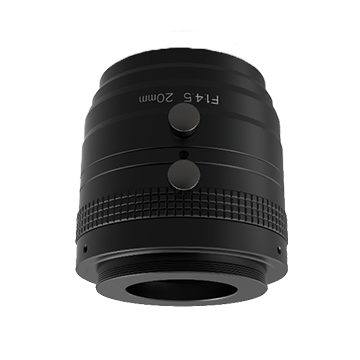

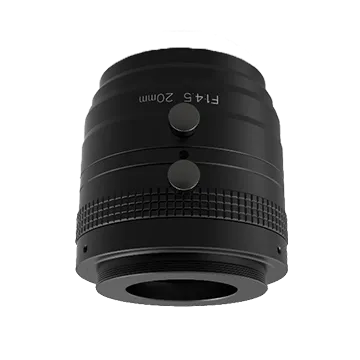

M42-Mount Lens, 20mm, F4.5, Image Size φ30mm, Recommended Magnification 0.02~0.134X
Provides excellent consistency of image clarity.
Highlights
- Excellent image-clarity consistency.
- Low distortion.
- Maximum image size Ø30 mm; suits APS-C area-scan and 4K 7 µm line-scan cameras.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
M42-Mount Lens, 20mm, F4.5, Image Size φ30mm, Recommended Magnification 0.02~0.134X is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-AF2045M-M42. Key data: focal length 20 mm, f number F4.5 to C, mount M42 × P1, image size Φ30 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Adapter Ring M42×1.0-F T34.5 (M42x1.0-F T34.5)
- Adapter Ring M58×0.75-C T6.02 (M58x0.75-C T6.02)
- Adapter Ring M58×0.75-F T35 (M58x0.75-F T35)
- C-Mount Lens, 12mm, F2.0, 4/3″, 10MP (SA1220M-10MP)
- C-Mount Lens, 12mm, F2.4, 1.2″, 25MP (MVL-KF1224M-25MP)
- C-Mount Lens, 12mm, F2.4, 1/1.8″, 10MP (MVL-HF1224M-10MP)
- C-Mount Lens, 12mm, F2.4, 2/3″, 5MP (MVL-MF1224M-5MPE)
- C-Mount Lens, 12mm, F2.8, 1.1″, 12MP (MVL-KF1228M-12MPE)
Description
Low distortion. Maximum image size Ø30 mm; suits APS-C area-scan and 4K 7 µm line-scan cameras.
M42-Mount Lens, 20mm, F4.5, Image Size φ30mm, Recommended Magnification 0.02~0.134X (MVL-AF2045M-M42) at a glance: 20 mm focal length, F4.5 to C, Φ30 mm image size, M42 × P1, M43 × 0.75 filter thread and weighs 243 g (0.5 Ib.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
Excellent image-clarity consistency. — Low distortion. — Maximum image size Ø30 mm; suits APS-C area-scan and 4K 7 µm line-scan cameras.
Specifications
| Product Model | MVL-AF2045M-M42 |
|---|---|
| Type | M42-Mount Lens, 20mm, F4.5, Image Size φ30mm, Recommended Magnification 0.02~0.134X |
| Focal Length | 20 mm |
| F Number | F4.5 to C |
| Image Size | Φ30 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M43 × 0.75 |
| Mount | M42 × P1 |
| Flange Back Length | 12 mm |
| Dimension | Φ52.7 mm × 51.4 mm (Φ2.1" × 2.0") |
| Weight | 243 g (0.5 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.20% |
| Magnification Range | 0.02 x to 0.134 x |
| Working Distance Range | 150 mm to 999 mm |
