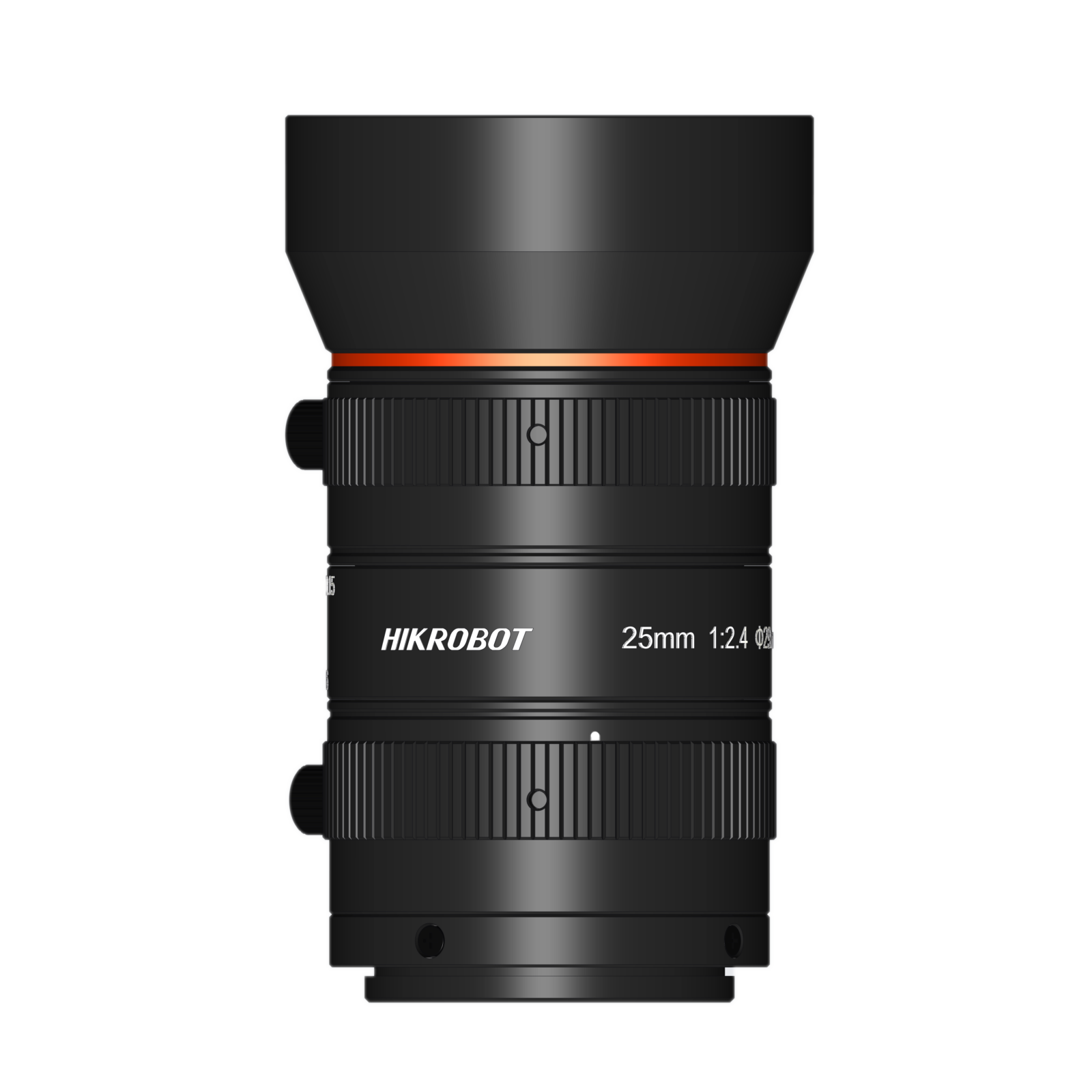

M42-Mount Lens, 25mm, F2.4, Image Size φ29mm, Recommended Magnification 0.04~0.18X
Adopts high-precision lens for 4k 7 μm line scan cameras.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Excellent image-clarity consistency, large aperture, and low distortion. Ultra-high resolution at the maximum aperture of F2.4. Maximum image size Ø29 mm.
Product Highlights
High-precision lens for 4K 7 µm line-scan cameras. — Excellent image-clarity consistency, large aperture, and low distortion. — Ultra-high resolution at the maximum aperture of F2.4. — Maximum image size Ø29 mm.
Specifications
| Product Model | MVL-AF2524M-M42 |
|---|---|
| Type | M42-Mount Lens, 25mm, F2.4, Image Size φ29mm, Recommended Magnification 0.04~0.18X |
| Focal Length | 25 mm |
| F Number | F2.4 to F16 |
| Image Size | Φ29 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M58 × P0.75 |
| Mount | M42 × P1 |
| Flange Back Length | 12 mm |
| Dimension | Φ60 mm × 96.68 mm (Φ2.4" × 3.8") |
| Weight | 501 g (1.1 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS2.0 |
| Optical Distortion | –0.34% |
| Magnification Range | 0.143 x to 0.001 x |
| Working Distance Range | 150 mm to inf mm |
