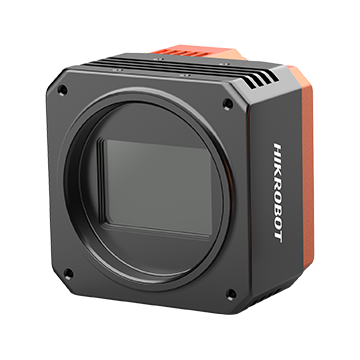

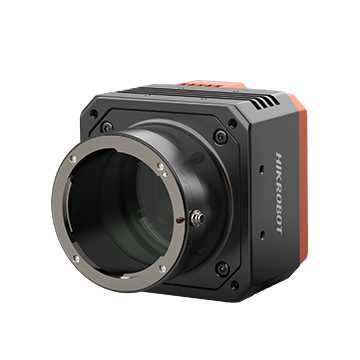

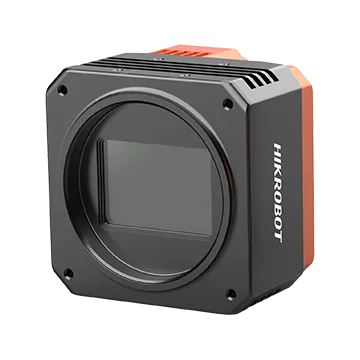

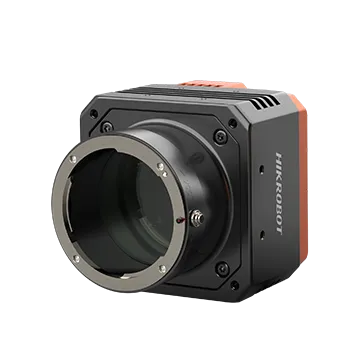

Area Scan Camera, 25MP, 10GigE, PYTHON25K, Color, M58-mount
Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Connects via 10 GigE, with cable runs up to 100 m and no repeater required. Offers auto or manual gain and exposure adjustment, plus manual LUT and gamma correction. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Product Highlights
Multiple exposure and acquisition modes. — Connects via 10 GigE, with cable runs up to 100 m and no repeater required. — Offers auto or manual gain and exposure adjustment, plus manual LUT and gamma correction. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Specifications
| Product Model | MV-CH250-25TC-M58S-NF |
|---|---|
| Type | Area Scan Camera, 25MP, 10GigE, PYTHON25K, Color, M58-mount |
| Sensor Type | CMOS, global shutter |
| Sensor Model | OnSemi PYTHON25K |
| Pixel Size | 4.5 μm × 4.5 μm |
| Sensor Size | 23 mm × 23 mm |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 40 fps @ 5120 × 5120 Bayer RG 8 |
| Dynamic Range | 58 dB |
| SNR | 41 dB |
| Gain | 0 dB to 15 dB |
| Exposure Time | 45 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | M58*0.75, flange back length 11.48 mm |
| Dimension | M58-mount with fan: 74 mm × 74 mm × 72.7 mm (2.9" × 2.9" × 2.9") |
| Weight | M58-mount with fan: approx. 550 g (1.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 12.5 W @ 24 VDC |
