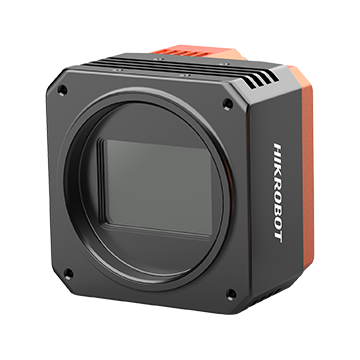

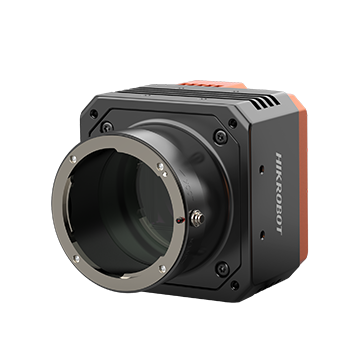

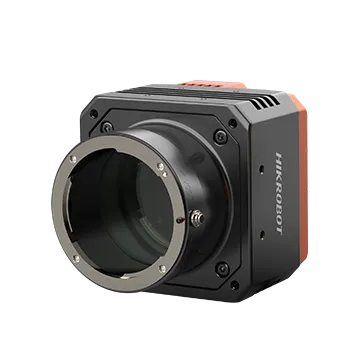

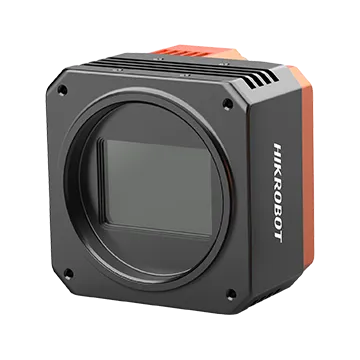

Area Scan Camera, 25MP, 10GigE, PYTHON25K, Mono, F-mount

Name: Area Scan Camera, 25MP, 10GigE, PYTHON25K, Mono, F-mount
Brand: HIKROBOT
SKU: MV-CH250-25TM-F-NF

Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.

Send inquiry

Download datasheet (PDF)

Highlights

Multiple exposure and acquisition modes.
Connects via 10 GigE, with cable runs up to 100 m and no repeater required.
Offers auto or manual gain and exposure adjustment, plus manual LUT and gamma correction.
Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH250-25TM-F-NF Category: Area & Line Scan Cameras

Area Scan Camera, 25MP, 10GigE, PYTHON25K, Mono, F-mount is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH250-25TM-F-NF. Key data: resolution 5120 × 5120, sensor type CMOS, global shutter, max frame rate 40 fps @ 5120 × 5120 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Connects via 10 GigE, with cable runs up to 100 m and no repeater required. Offers auto or manual gain and exposure adjustment, plus manual LUT and gamma correction. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Area Scan Camera, 25MP, 10GigE, PYTHON25K, Mono, F-mount (MV-CH250-25TM-F-NF) at a glance: 5120 × 5120 resolution, OnSemi PYTHON25K sensor, 23 mm × 23 mm sensor format, 4.5 μm × 4.5 μm pixel size, up to 40 fps, Mono output, 10 Gigabit Ethernet (10000 Mbit/s) interface and F-mount, flange back length 46.5 mm lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Multiple exposure and acquisition modes. — Connects via 10 GigE, with cable runs up to 100 m and no repeater required. — Offers auto or manual gain and exposure adjustment, plus manual LUT and gamma correction. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.

Specifications

Product Model	MV-CH250-25TM-F-NF
Type	Area Scan Camera, 25MP, 10GigE, PYTHON25K, Mono, F-mount
Sensor Type	CMOS, global shutter
Sensor Model	OnSemi PYTHON25K
Pixel Size	4.5 μm × 4.5 μm
Sensor Size	23 mm × 23 mm
Resolution	5120 × 5120
Max Frame Rate	40 fps @ 5120 × 5120 Mono 8
Dynamic Range	58 dB
SNR	41 dB
Gain	0 dB to 15 dB
Exposure Time	45 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/10Packed/12/12Packed
Mono Color	Mono
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power Supply	9 VDC to 24 VDC
Lens Mount	F-mount, flange back length 46.5 mm
Dimension	F-mount with fan: 74 mm × 74 mm × 78.7 mm (2.9" × 2.9" × 3.1")
Weight	F-mount with fan: approx. 600 g (1.3 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with GigE Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 11.5 W @ 24 VDC
